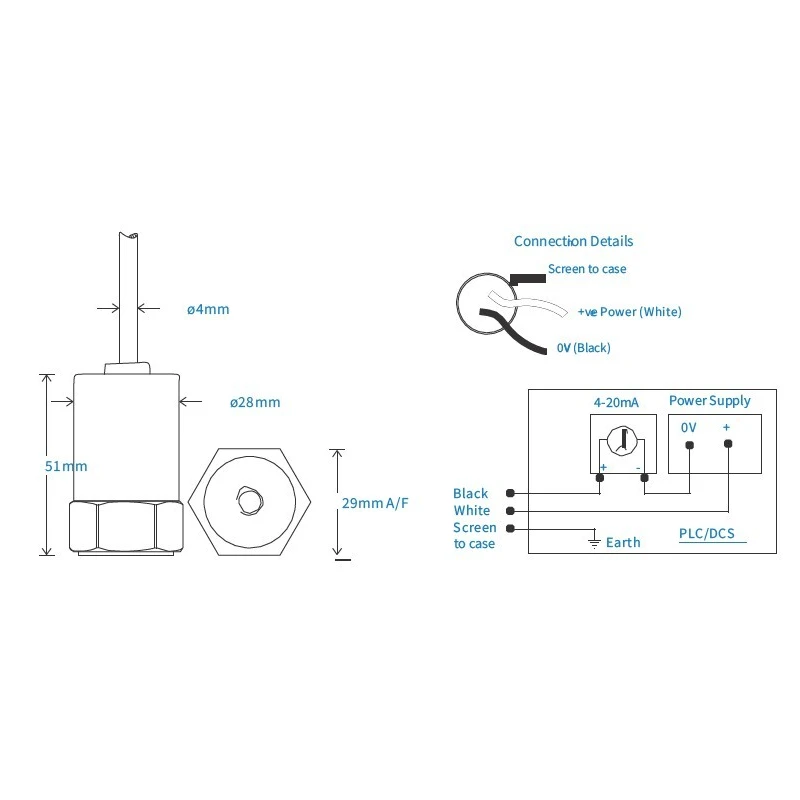

Loop Powered Sensors Transmitter 4-20 mA
Specifications
| Range | 50g peak |
|---|---|
| Operating Temperature Range | -25 to 90oC |
| Supply Voltage (V) | 15-30 Volts DC (for 4-20mA) |
| Current Output | 4-20mA DC proportional to Velocity Range |
| Weight | 150gms (nominal) |

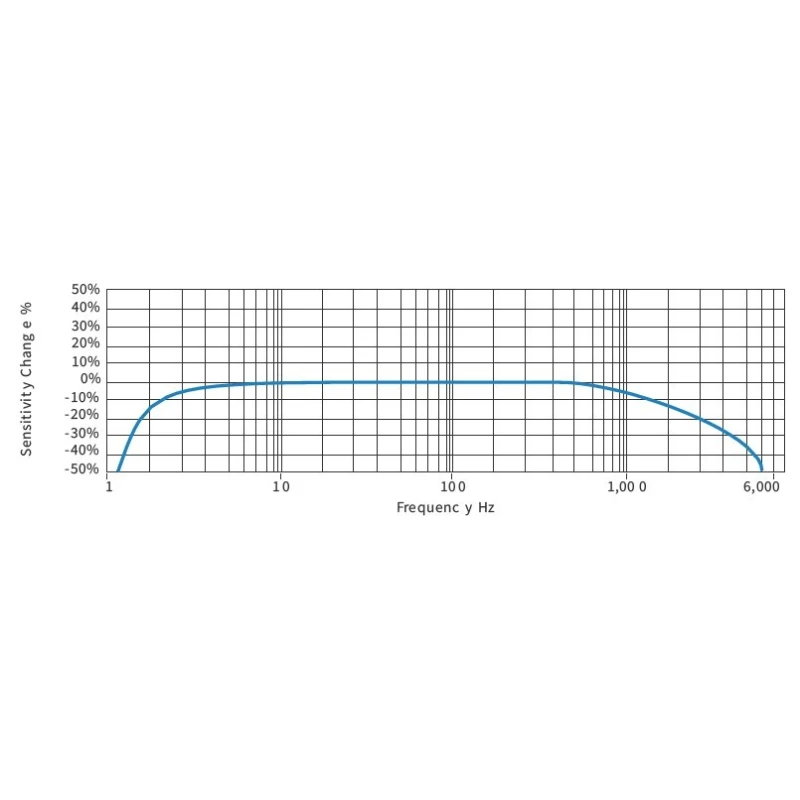

| Frequency response | 10Hz (600cpm) to 1kHz (60kcpm) 5% - ISO10816 |
| Case Material | Stainless Steel |
| Standard Cable Length | 5 metres |
| Output Impedance | Loop Resistance 600 Ohms max. at 24 Volts |
| Isolation | Base isolated |
| Sealing | IP65 |
| Mounted Base Resonance | 5kHz min |
| Velocity Ranges | Nominal 80Hz at 22oC |
| Transverse Sensitivity | Less than 5% |
| Sensing Element/Construction | PZT/Compression |
| Mounting Torque | 8Nm |
| Maximum Cable Length | 1000 metres |
| Screened Cable | Braided - length to be specified with order |
| Settling Time | 2 seconds |
| Case Isolation | Greater Than 108 Ohms at 500 Volts |
| Maximum Shock | 5000g |
| EMC | EN61326-1 2013 |
Key Features
- For use with PLC/DCS systemsCustomisable features
Product Description
The 4-20mA sensor is a combination of an accelerometer and a transmitter in one housing. Each sensor provides an output signal of 4-20mA, which is proportional to the total vibration level in terms of acceleration, velocity, or temperature. You can connect 4-20mA sensors directly to process control systems such as PLC, DCS and SCADA systems to create cost effective and effective continuous monitoring systems.
