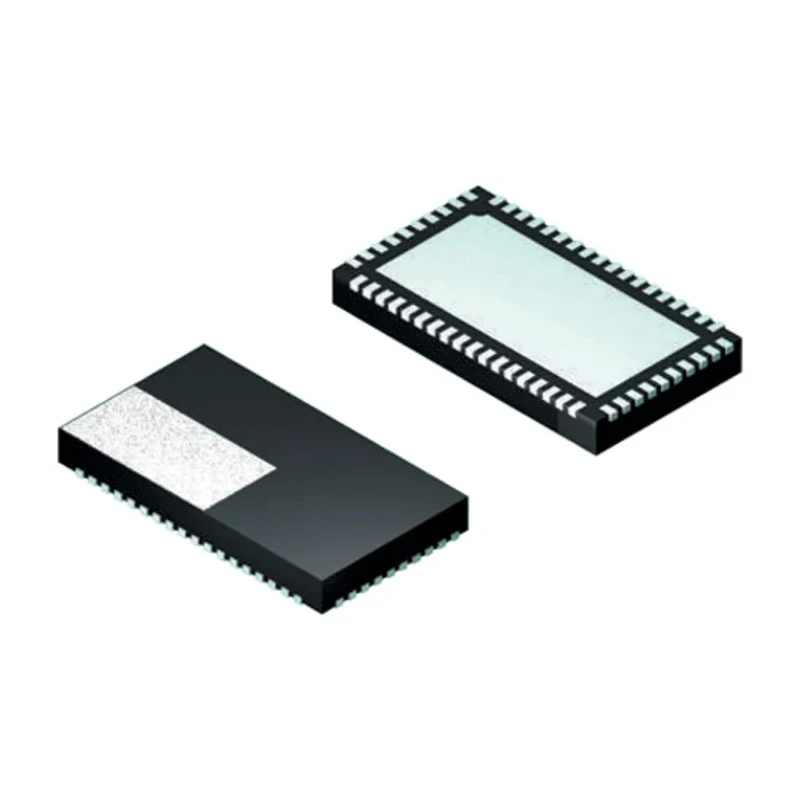

FTDI Chip Controller IC, 1-Channel, 30 Mbps, 1.8V to 1.98V Supply, USB 2.0, 56-Pin VQFN Package FT2232H-56Q-TRAY

Free Delivery in India | Lowest Global Shipping Charges

FTDI Chip Controller IC, 1-Channel, 30 Mbps, 1.8V to 1.98V Supply, USB 2.0, 56-Pin VQFN Package FT2232H-56Q-TRAY

Name: FTDI Chip Controller IC, 1-Channel, 30 Mbps, 1.8V to 1.98V Supply, USB 2.0, 56-Pin VQFN Package FT2232H-56Q-TRAY
Brand: FTDI Chip
SKU: 139080
Price: 8.43 USD
Availability: InStock



Category USB Interface ICs Brand FTDI Chip Condition New

Specifications

Country of Origin	India
Brand	FTDI Chip
Height	900μm
Length	8mm
Model	FT2232H-56Q-TRAY
Mount Type	Surface
Series	FT2232H
Maximum Operating Temperature	85°C
Package Type	VQFN
Sub Type	Controller
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	56
Maximum Supply Voltage	1.98V
Minimum Supply Voltage	1.8V
Supply Current	70mA
Maximum Data Rate	30Mbps
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	USB 2.0

Key Features

Supports USB 2.0 protocol ensuring high speed data communication.
Equipped with one transceiver channel for serial I/O peripherals.
Operates reliably between -40°C to 85°C temperature range.
ESD protection integrated to enhance device durability.
Compact 56-pin VQFN package suitable for surface mounting.
Supply current rated at 70mA optimizing power consumption.
Complies with RoHS standards for environmental safety.
Ideal for integration in electronic and industrial interface applications.

Product Description

FTDI Chip's FT2232H-56Q-TRAY is a high-performance USB 2.0 Controller IC designed for industrial and electronic applications requiring a single data channel at speeds up to 30 Mbps. The device operates over a supply voltage range of 1.8V to 1.98V and supports the USB 2.0 protocol, offering reliable serial communication for a variety of peripheral interfaces.

Housed in a compact 56-pin VQFN surface mount package, the IC is tailored to optimize PCB space while providing robust electrical characteristics. Its operating temperature range between -40°C and 85°C makes it suitable for diverse environments, including industrial machinery and embedded systems. Additionally, it integrates ESD protection to improve longevity and reliability.

This controller IC's supply current is approximately 70mA, balancing effective performance with power efficiency. The product meets RoHS certification requirements, ensuring compliance with environmental and safety standards essential in commercial manufacturing.

Typical applications include interfacing USB peripherals, embedded systems communication, and automation equipment requiring dependable and high-speed data transfer. The device is not compliant with automotive standards, indicating its primary use outside of that stringent sector.

The FT2232H-56Q-TRAY arrives supplied in trays ready for integration into manufacturing processes, facilitating efficient assembly in volume production. Supports USB 2.0 protocol ensuring high speed data communication. Equipped with one transceiver channel for serial I/O peripherals.

Operates reliably between -40°C to 85°C temperature range. ESD protection integrated to enhance device durability. Compact 56-pin VQFN package suitable for surface mounting. Supply current rated at 70mA optimizing power consumption.

Complies with RoHS standards for environmental safety. Ideal for integration in electronic and industrial interface applications. Mechanical dimensions include 8mm length and 900μm height. Automotive standard not supported.
