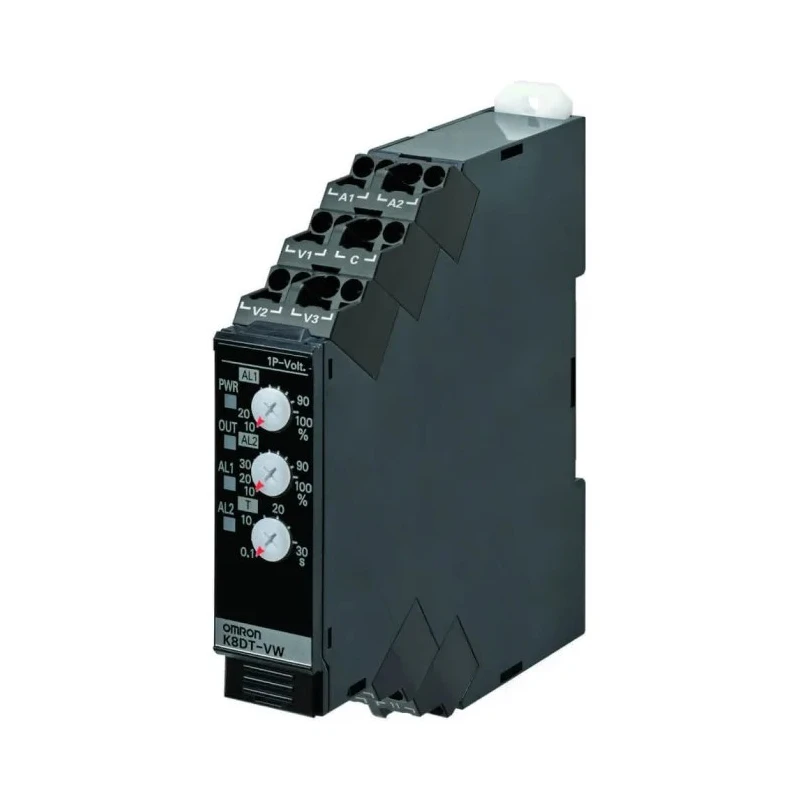

Omron Single-Phase Monitoring Relay SPST Contact 26.4V AC / 20.4 to 26.4 V DC DIN Rail Mount K8DT-VW2TD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Function | Overvoltage, Undervoltage |
| Length | 90mm |
| Model | K8DT-VW2TD |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | K8DT-VW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | +60°C |
| Terminal type | Push-in |
| Electrical Phase | 1 |
| Contact Current | 10A |
| Supply DC Voltage | 20.4 → 26.4 V dc |
| Supply AC Voltage | 26.4V ac |
Key Features
- Provides overvoltage and undervoltage protection for industrial control circuits.
- Single-pole single-throw (SPST) contact rated for 10 A load control.
- Designed for quick installation on standard DIN rails.
- Push-in terminals enable secure, tool-free wiring connections.
- Low power consumption of 1.8 VA minimizes auxiliary load on power supplies.
- Wide operating temperature range from -20°C to 60°C supports diverse environments.
- IP20 protection rating ensures safe use inside enclosed control panels.
- Conforms to RoHS, EN 60947-5-1, and UL 60947-5-1 industrial standards.
Product Description
Omron K8DT-VW2TD is a highly reliable monitoring relay designed for single-phase electrical systems with a supply voltage range of 20.4 to 26.4 V DC and 26.4V AC. This device provides essential overvoltage and undervoltage protection by continuously monitoring supply voltages and actuating a single-pole single-throw (SPST) switching contact to isolate loads if voltage thresholds are exceeded.
Equipped with push-in terminals, it facilitates quick and secure wiring installations without the need for specialized tools, reducing installation times in automation and electrical control panels. Its DIN rail mounting form factor ensures easy integration into standard industrial setups.
The relay is engineered for durability and versatility, with an operating temperature range from -20°C to 60°C, enabling it to perform consistently in varied plant environments including manufacturing, automation, and process control systems. The IP20 ingress protection rating requires installation within enclosed cabinets to prevent direct exposure to dust and moisture, meeting industrial safety norms.
Conforming to international standards such as RoHS, EN 60947-5-1, and UL 60947-5-1, the K8DT-VW2TD ensures compliance and reliability in demanding industrial applications. Provides overvoltage and undervoltage protection for single-phase systems.
SPST contact rated for 10 A load switching. Push-in terminal design for tool-free wiring connections. DIN rail mountable for standardized installation. Low power consumption of 1.8 VA reduces auxiliary energy drain. Wide ambient operating range from -20°C to 60°C.
IP20 protection suitable for installation inside control cabinets. Compact dimensions: 90 mm (H) x 17.5 mm (W) x 90 mm (L). Complies with RoHS, EN 60947-5-1, UL 60947-5-1 standards. Manufactured in China with quality assurance.
It is widely used in industrial manufacturing, electrical distribution, and automated process control applications, ensuring system safety and operational reliability. For more industrial-grade Monitoring Relay products and automation solutions, explore the full range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a supply voltage range of 20.4 to 26.4 V DC and 26.4 V AC.
It features a single-pole single-throw (SPST) contact configuration rated for 10 A load control.
This monitoring relay has an operating temperature range from -20°C to 60°C.
It is designed for DIN rail mounting, facilitating easy installation in standard industrial setups.
The relay is equipped with push-in terminals that allow for secure, tool-free wiring connections.
It has an IP20 protection rating, which means it should be installed inside enclosed cabinets to prevent exposure to dust and moisture.
The dimensions of this model are 90 mm in height, 17.5 mm in width, and 90 mm in length.
It conforms to RoHS, EN 60947-5-1, and UL 60947-5-1 industrial standards.
The relay provides overvoltage and undervoltage protection for single-phase electrical systems.
It has a low power consumption of 1.8 VA, minimizing the auxiliary load on power supplies.
It is widely used in industrial manufacturing, electrical distribution, and automated process control applications.
This monitoring relay is manufactured in China.
