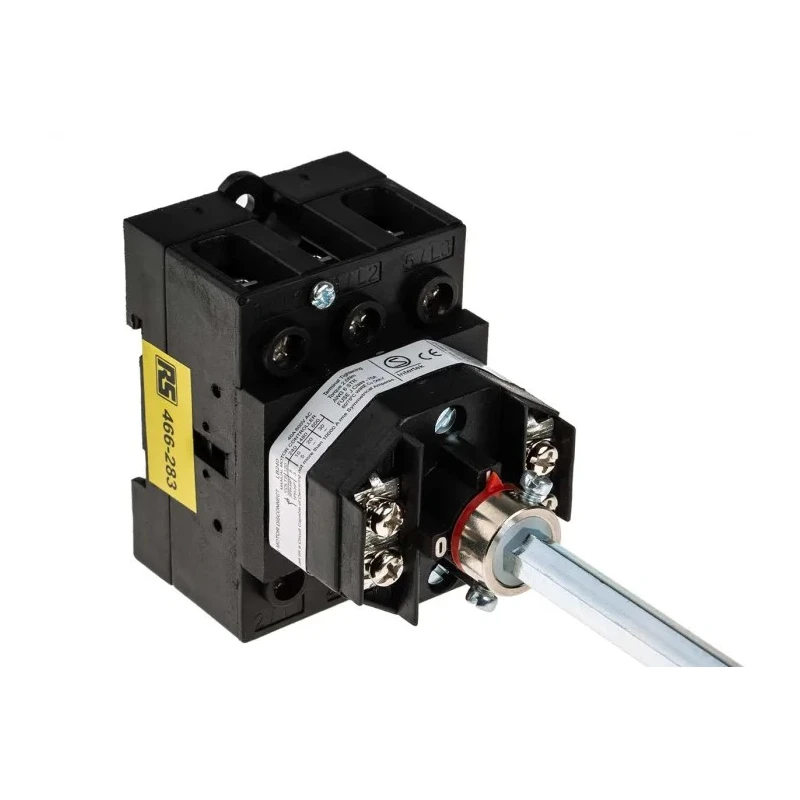

RS PRO 3-Pole DIN Rail Isolator Switch IP65 40A 45kW IP65

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3-Pole DIN Rail Isolator Switch IP65 40A 45kW IP65

Name: RS PRO 3-Pole DIN Rail Isolator Switch IP65 40A 45kW IP65
Brand: RS PRO
SKU: 138912
Price: 5490.7 INR
Availability: InStock



Category Isolator Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	125mm
Model	IP65
Depth	70mm
IP Rating	IP65
Width	100mm
Mount Type	DIN Rail
Series	RS PRO
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-25°C
Switching Current	40A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Red
Number of Poles	3
Standards/Approvals	CB, CE, RoHS, SEMKO, UL 508
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	466-283Brand: RS PRODistrelec Article No.: 30407078
Switching AC Voltage	750V ac
Switching Power	45kW

Key Features

Compact and robust design ideal for industrial environments.
Manual motor control applications support with three poles.

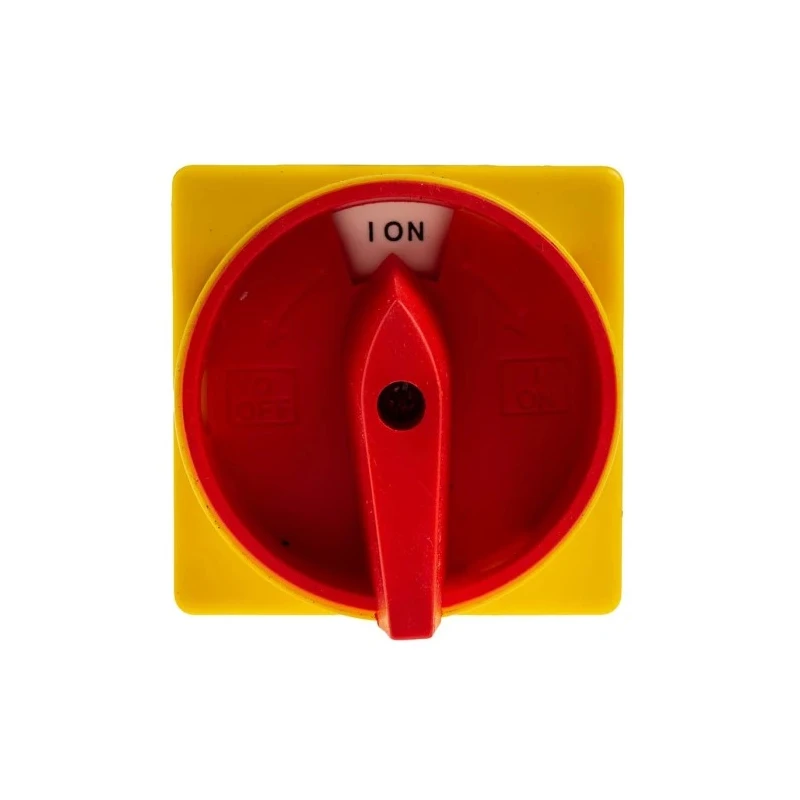

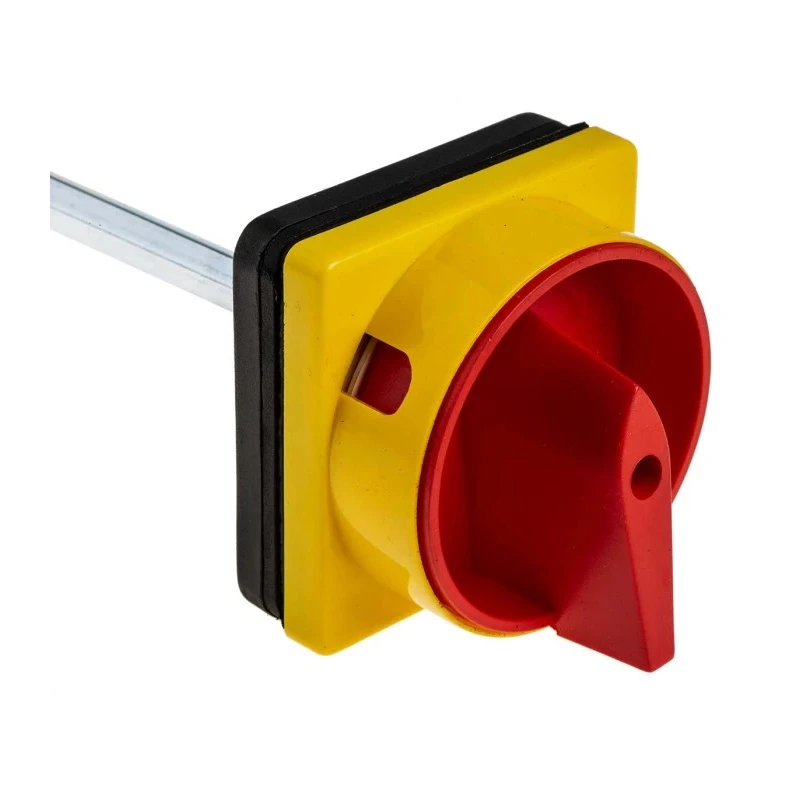

Red handle with padlock compatibility for secure operation.
IP65 rated for dust tight and water resistant protection.
Switching current rating of 40A and switching power of 45kW.
Suitable for disconnecting electrical equipment safely from circuits.
Hexagonal metal shaft with 8mm flat for rigidity and durability.
Mounts on 35mm DIN rail with dimensions 125 mm length, 100 mm width, and 70 mm depth.

Product Description

RS PRO IP65 3-Pole DIN Rail Isolator Switch 40A 45kW is designed for safe and reliable manual isolation of three-phase electrical circuits in industrial and commercial environments. Featuring a red handle with padlock compatibility, this isolator switch ensures high safety and ease of operation. It is ideal for motor control and electrical equipment disconnection applications.

The switch offers robust construction suitable for harsh industrial conditions with an IP65 ingress protection rating, making it dust-tight and protected against water jets. It includes a hexagonal 8mm thick metal shaft for enhanced mechanical strength and durability. The device fits standard 35mm DIN rails and comes with screw-type terminals to simplify cable connections.

Operating over a temperature range of -25°C to 40°C, the switch supports a switching current of 40A and switching power of 45kW at 750V AC. This three-pole isolator switch complies with CB, CE, RoHS, SEMKO, and UL 508 certifications, emphasizing product quality and safety.

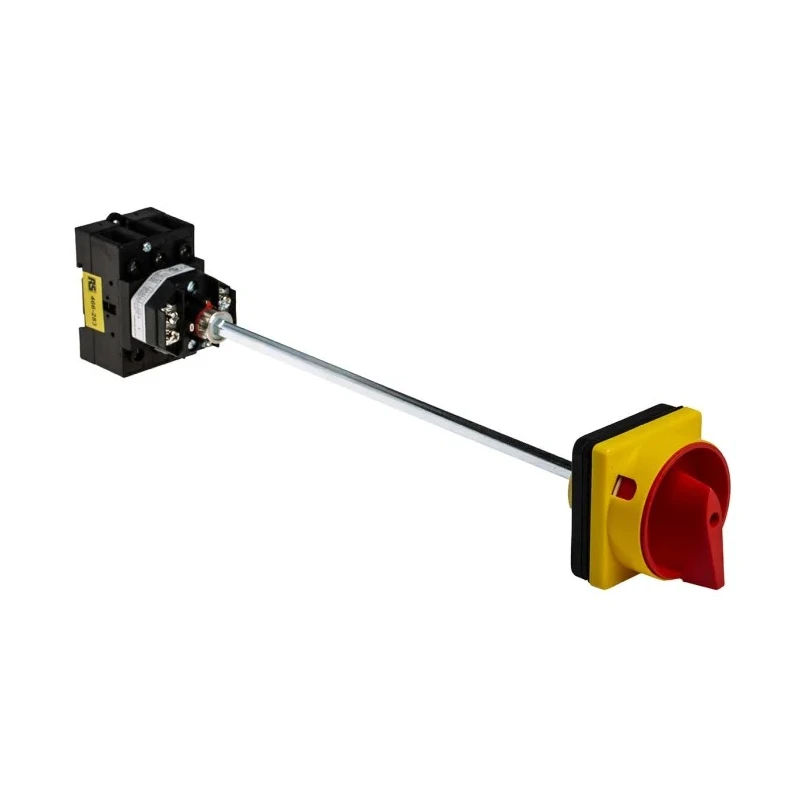

The handle mechanism is interlocked to allow removal only when in the off position, increasing operational safety. It also incorporates a manual override and safety switch function to ensure full local isolation of the circuit. Package includes the Isolator Switch with metal shaft designed for panel thickness up to 3mm and a depth behind panel installation of 355mm, allowing flexible mounting arrangements.

Applications include industrial automation, motor control centers, electrical panels, and maintenance isolation across manufacturing, commercial, and industrial sectors. Compact and robust design ideal for industrial environments.

Manual motor control applications support with three poles. Red handle with padlock compatibility for secure operation. IP65 rated for dust tight and water resistant protection. Switching current rating of 40A and switching power of 45kW.

Suitable for disconnecting electrical equipment safely from circuits. Hexagonal metal shaft with 8mm flat for rigidity and durability. Mounts on 35mm DIN rail with dimensions 125 mm length, 100 mm width, and 70 mm depth.

Operates in ambient temperatures from -25°C to 40°C. Certified with CB, CE, RoHS, SEMKO, and UL 508 standards. RS PRO products are trusted worldwide for quality and durability. Explore our catalog for additional reliable electrical switches and isolation components.
