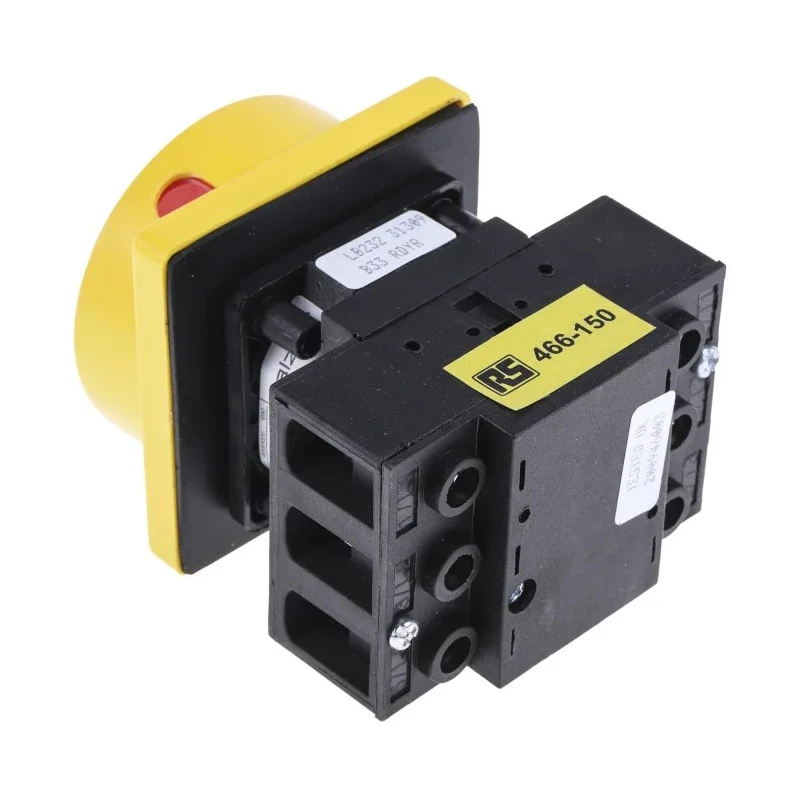

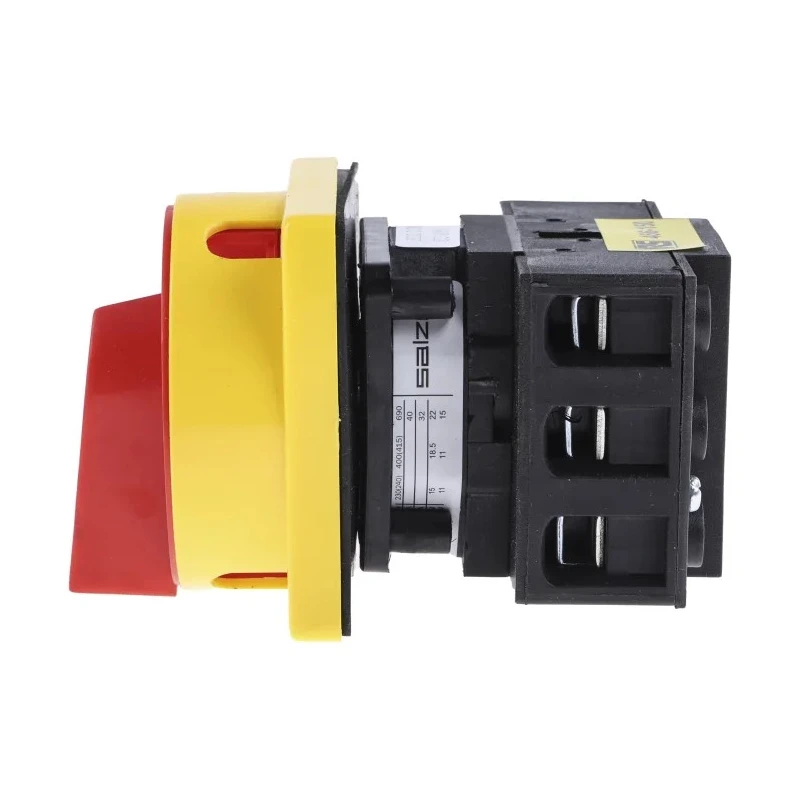

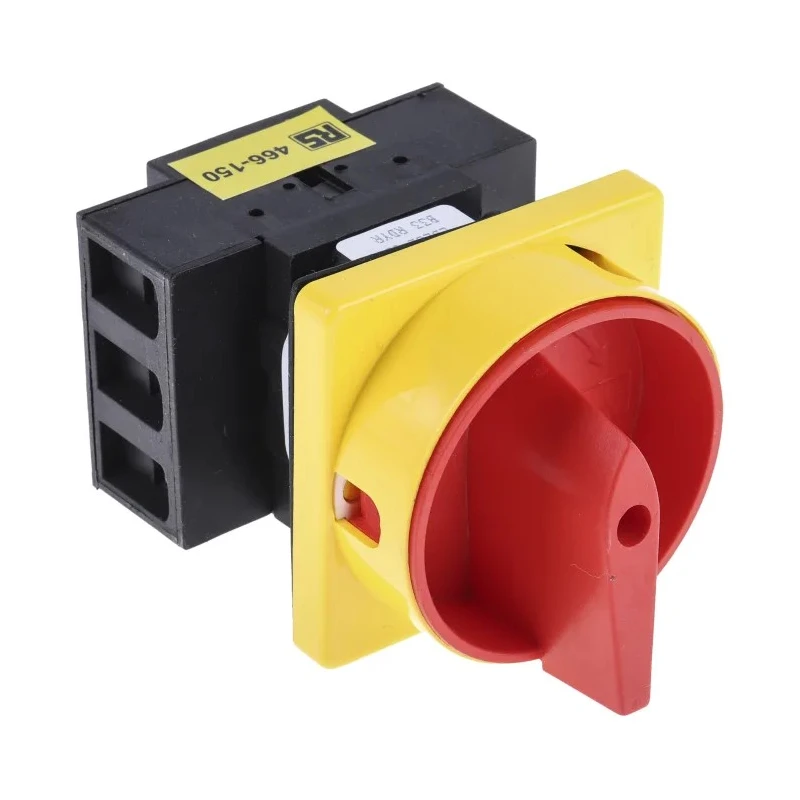

RS PRO 3-Pole Panel Mount Isolator Switch IP65, 32A, 22 kW IP65

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3-Pole Panel Mount Isolator Switch IP65, 32A, 22 kW IP65

Name: RS PRO 3-Pole Panel Mount Isolator Switch IP65, 32A, 22 kW IP65
Brand: RS PRO
SKU: 138893
Price: 3310.66 INR
Availability: InStock



Category Isolator Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	125mm
Model	IP65
Depth	70mm
IP Rating	IP65
Width	100mm
Mount Type	Panel Mount
Series	RS PRO
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-25°C
Switching Current	32A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Red
Number of Poles	3
Standards/Approvals	UL, RoHS, IEC, EN
Switching AC Voltage	750V ac
Switching Power	22kW
Kraus & Naimer 3-Pole Panel Mount Isolator Switch -, IP65, 32A, 11 kWBrand	Kraus & Naimer
Eaton 3-Pole Rear Panel Isolator Switch -, IP65, 32A, 15 kWBrand	Eaton
RS PRO 3-Pole Panel Mount Isolator Switch -, IP65, 40A, 45 kWBrand	RS PRO

Key Features

Rated for 32A switching current and 22 kW switching power for robust performance.
IP65 rated for complete dust ingress protection and water resistance.
Panel mount design with a compact footprint suitable for 3-pole electrical systems.
Features red handle with padlock compatibility for added safety and security.
Operating temperature range from -25°C to 40°C for varied environments.
Screw type terminals ensure secure and reliable electrical connections.
90° switching angle with forced open contacts to prevent unsafe closing.
Compatible with panels up to 3mm thick with installation depth between 102mm and 117mm.

Product Description

RS PRO IP65 3-Pole Panel Mount Isolator Switch is engineered for safe and reliable switching in low-voltage electrical applications such as power distribution, load isolation, and motor start/stop control. Its compact and robust design allows secure panel mounting in industrial and commercial electrical panels.

The switch supports a rated switching current of 32 amperes and a switching power capacity of 22 kW, suitable for handling demanding electrical loads. Its IP65 rating guarantees dust-tight ingress protection and resistance to water jets, making it reliable in harsh environments.

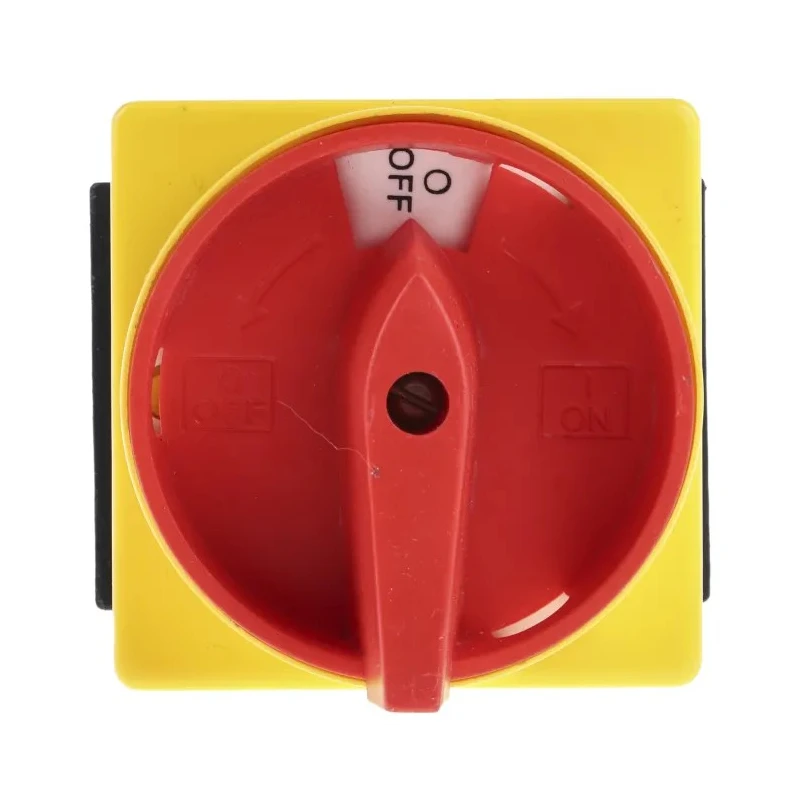

This isolator features a red rotary handle that allows a 90° switching operation to safely disconnect or isolate circuits. The handle is also padlock compatible to prevent unauthorized operation, enhancing safety during maintenance or operation.

Installation is straightforward with a single-hole front panel mount and screw type terminals for secure electrical connections. The maximum panel thickness it supports is 3 mm, with measured depth dimensions ensuring compatibility within standard electrical enclosures.

Designed to operate over a temperature range of -25°C to 40°C, this product is suitable for various industrial and commercial environments. It complies with internationally recognized standards including UL, RoHS, IEC, and EN certification, ensuring high quality and long-term reliability.

This non-fused isolator switch is typically used for isolating circuit breakers, transformers, transmission lines, and other critical electrical equipment in manufacturing plants, electrical distribution systems, and automation infrastructure.

Rated at 32A switching current for dependable power control. Compact panel mounting with IP65 dust and water resistance. Padlockable red handle for enhanced operational safety. Operates safely within -25°C to 40°C temperature range.

Complies with UL, RoHS, IEC, and EN standards for quality assurance. Single hole front mounting simplifies installation. Screw terminals provide robust electrical connections. Suitable for panels up to 3 mm thickness. Manufactured in India with stringent quality controls.
