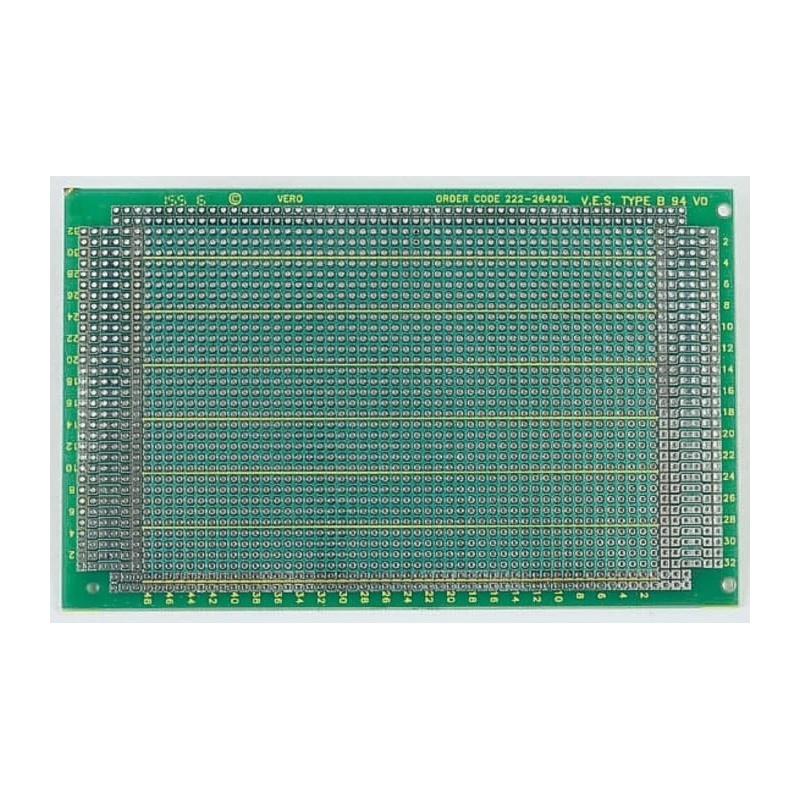

Vero Technologies Matrix Board FR4 Epoxy Glass Fabric Laminate with 42 x 38 1.02 mm Holes, 2.54 mm Pitch, 160 mm x 222-26492

Vero Technologies 222-26492 matrix board FR4 constructed from premium epoxy glass fabric laminate offers precision and durability for electronic prototyping tasks. Measuring 160 mm by 100 mm with a board thickness of 1.6 mm, it features a hole layout of 42 by 38 with 1.02 mm diameter holes and a standard 2.54 mm pitch, allowing for versatile component soldering and circuit design.

The copper layers are 35 μm thick, providing efficient electrical pathways while the Eurocard design is lined on both sides with through-holes and quadratic soldering islands which reduce the risk of lifting during soldering. An earth screen on the component side delivers maximum shielding to sensitive components. The board supports plug connectors compliant with DIN 41612 standards, types B and C, up to 96 contacts, which can be mounted on both sides of the board, enhancing connectivity options.

Certified RoHS compliant, this matrix board meets environmental and safety requirements, suitable for industrial, laboratory, manufacturing, and educational prototyping environments. Its robust FR4 material ensures mechanical stability and reliability in demanding electronic development tasks.

Constructed from high-quality FR4 epoxy glass fabric laminate. Features 42 rows by 38 columns holes with 1.02 mm diameter. Standard 2.54 mm pitch hole layout for easy component placement. Board dimensions measure 160 mm in length and 100 mm in width.

Copper thickness of 35 μm enhances electrical connectivity. Lined on each side with through-hole Eurocards for durability. Compliant with RoHS standards, ensuring safety and quality. Suitable for electronic prototyping and development applications.

This Vero Technologies matrix board is ideal for prototype circuit design and development, offering reliable mechanical and electrical performance. Explore the comprehensive selection of Matrix Boards and prototyping materials at EnvMart for all your electronic component needs.
