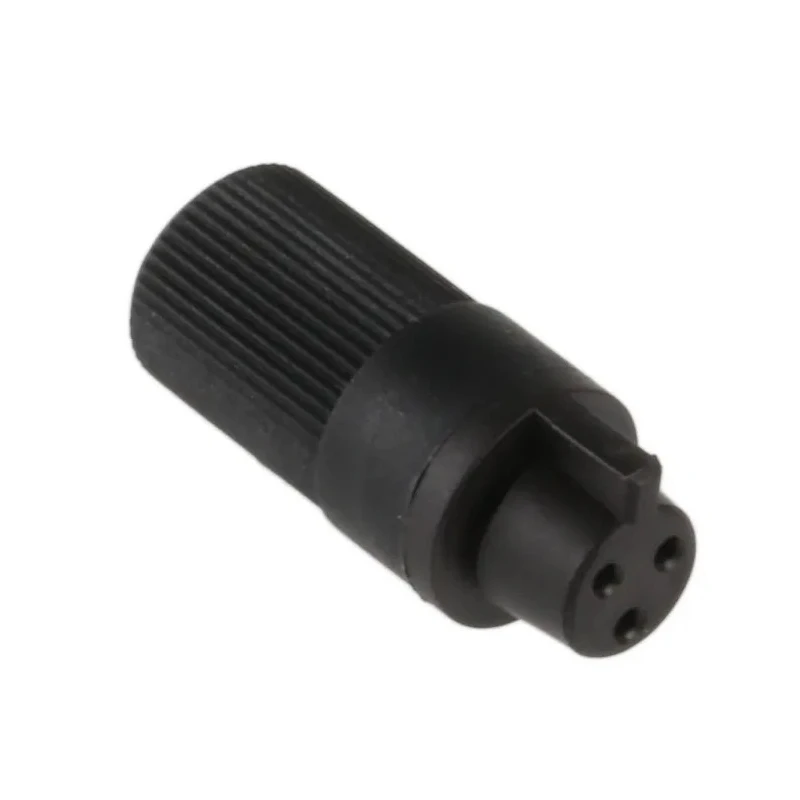

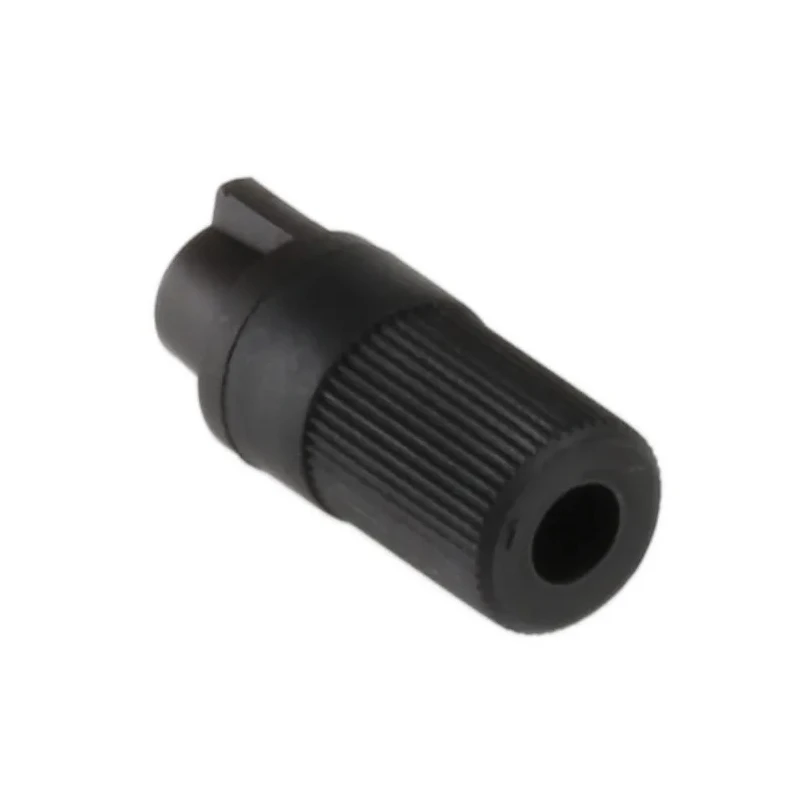

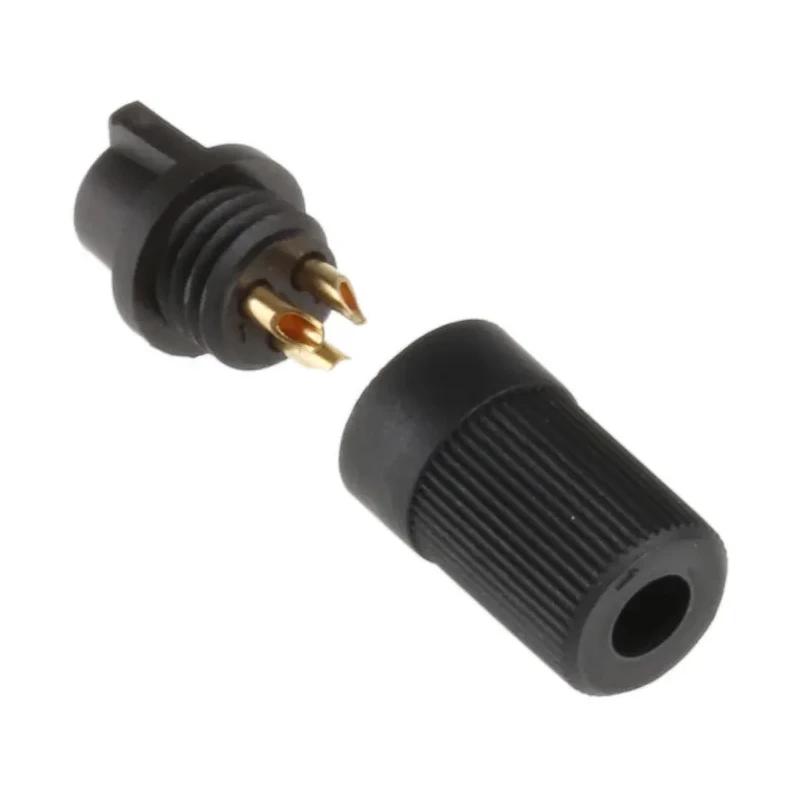

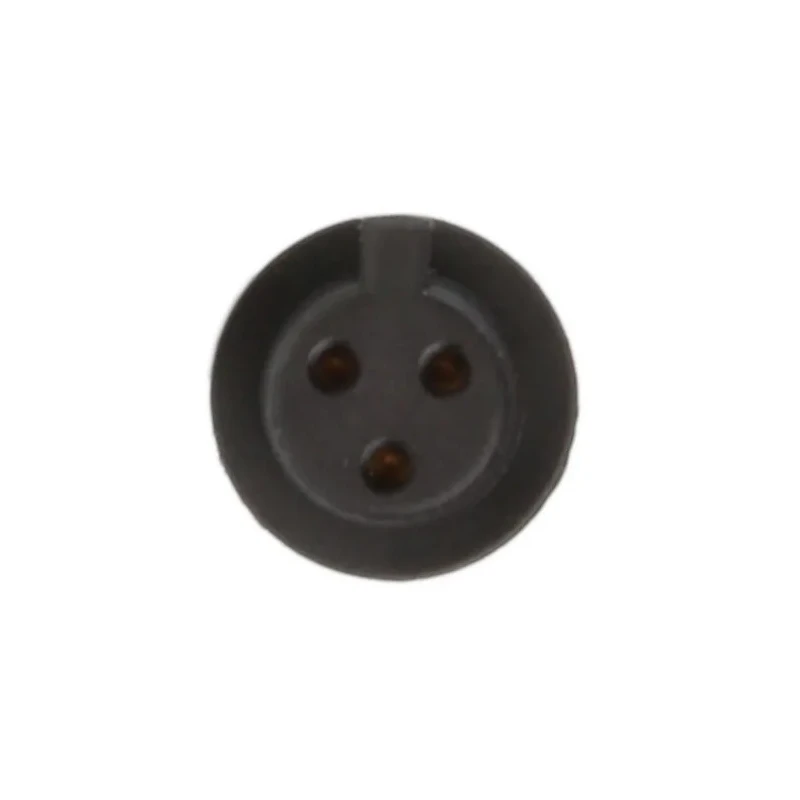

binder Circular Connector Subminiature 3 Contacts Cable Socket Female IP40 60V 3A Polyamide Housing 719 Series 09-9748-00-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 8 mm |
| Mating Type | Threaded |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- Designed for secure cable connections with a subminiature female socket configuration.
- Gold-plated brass contacts ensure excellent conductivity and resistance to wear.
- Polyamide housing offers robust industrial-grade protection and durability.
- Rated for continuous operation at 3 amperes and up to 60 volts.
- Operating temperature range from -25°C to 70°C suits varied environments.
- Snap-in mating system allows quick installation with threaded engagement.
- Provides IP40 ingress protection suitable for controlled industrial settings.
- Compact 8 mm shell size and straight orientation for optimal space utilization.
Product Description
binder 09-9748-00-03 Circular Connector is a subminiature cable-mounted female socket connector designed for industrial and electronic systems requiring reliable low-voltage connections. This connector is engineered with 3 gold-plated brass contacts arranged in a 3-pin pole format, ensuring low-resistance electrical conductivity and durability.
The connector features a robust polyamide housing providing resilience against mechanical stresses and environmental factors, rated for operating temperatures between -25°C and 70°C. It is suited for applications up to 60 volts and continuous current up to 3 amperes, making it ideal for sensor cabling, automation equipment, and low-voltage power interconnects.
The snap-in mating mechanism with threaded engagement enables fast and secure installation without the need for special tools, enhancing assembly efficiency in industrial production and maintenance. Its IP40 rating offers protection against solid objects greater than 1 mm, appropriate for controlled indoor environments.
With an 8 mm shell size and straight orientation, this connector occupies minimal space while maintaining easy cable routing. Typical uses include control cabinet wiring, instrumentation panels, and portable test setups requiring compact and durable circular connectors.
Gold-plated contacts ensure stable electrical contact over multiple mating cycles. Solder termination secures conductor attachment for permanent connections. Polyamide housing provides insulation and mechanical strength.
Compatible with 719 series connectors for broad industrial interoperability. Designed and manufactured in Germany ensuring high quality standards.
This binder circular connector is widely utilized in manufacturing, automation, laboratory instrumentation, and industrial electronics sectors. It supports efficient, reliable signal and power connectivity critical to modern electrical installations.
Explore more products in our Industrial Circular Connectors category to find compatible connectors, accessories, and solutions for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 60 volts.
This connector is rated for continuous operation at 3 amperes.
It has an IP40 ingress protection rating, suitable for controlled indoor environments.
The housing is made of polyamide, and the contacts are gold-plated brass.
The operating temperature range is from -25°C to 70°C.
This model features 3 contacts arranged in a 3-pin pole format.
It uses solder termination for securing conductor attachment.
The shell size of this connector is 8 mm.
This unit is designed for cable mounting.
It features a snap-in mating system with threaded engagement for secure installation.
This model is manufactured in Germany.
It is suitable for applications such as control cabinet wiring, instrumentation panels, and portable test setups.
