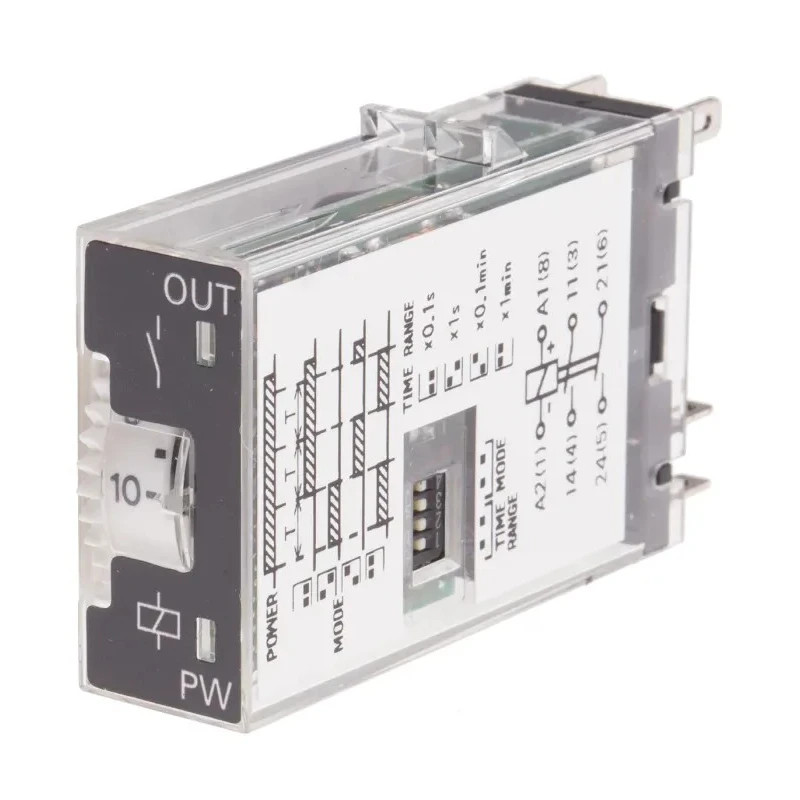

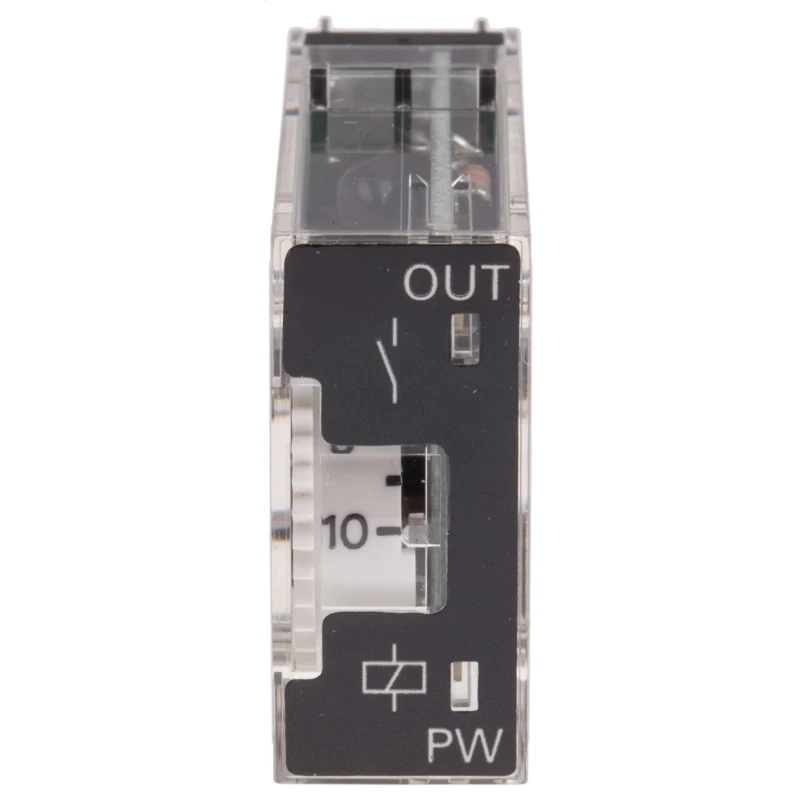

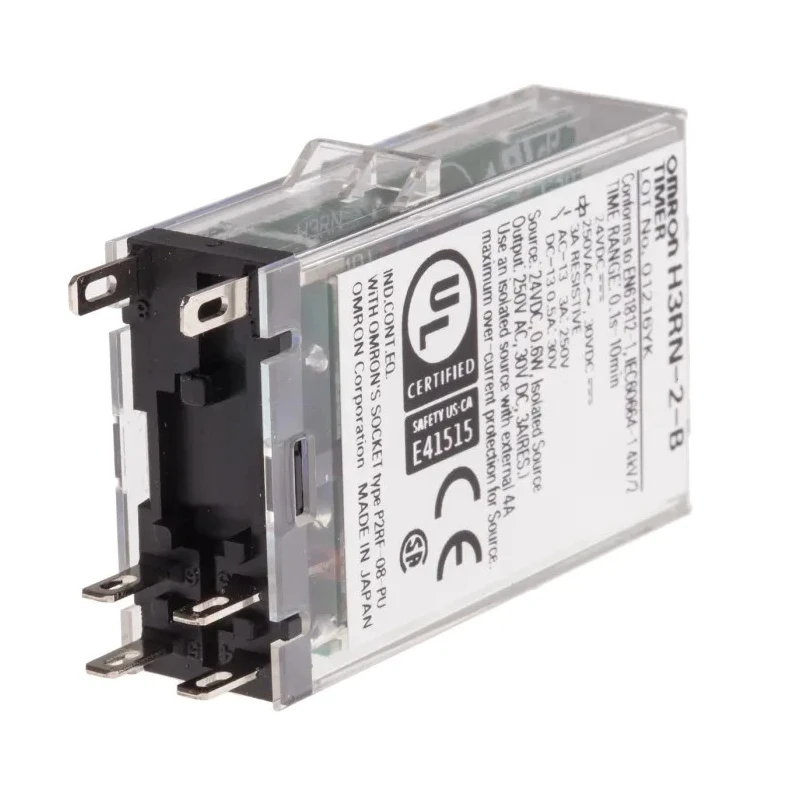

Omron Front Mount Solid State Timer Relay 2-Contact 12 to 24 V DC, 24 V AC, 0.1 s to 10 min, Multifunction H3RN
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 31.2mm |
| Function | Timer |
| Length | 12.8mm |
| Model | H3RN |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 47.2mm |
| Mount Type | Front |
| Series | H3RN |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 10 min |
| Terminal type | Plug-In |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 3A |
| Supply DC Voltage | 12 to 24 V dc |
| Timing Adjustment | Swedish Pipe |
| Supply AC Voltage | 24V ac |
Key Features
- Compact front mount design suitable for control panels.
- Multifunction timer supporting multiple timing modes.
- DPST contact configuration enabling independent switching of two circuits.
- Rated contact current of 3A at 250V AC for moderate load switching.
- Wide operating temperature range from -10°C to 55°C.
- Plug-in terminal type for easy replacement and wiring.
- IP40 rated enclosure for protected panel environments.
- Compliant with IEC, UL, CSA, and CE safety and electrical standards.
Product Description
Omron H3RN Solid State Timer Relay 2-Contact multifunction timer operates from 12 to 24 V DC or 24 V AC supply with a timing range of 0.1 seconds to 10 minutes, delivering reliable and precise time control for industrial applications.
This compact timer relay is designed for front panel mounting in control panels, enabling efficient process timing and automation. Its multifunction capability facilitates various timing functions, making it versatile for diverse control needs.
The timer utilizes a DPST contact configuration, allowing the independent switching of two circuits with a contact rating of 3A at 250V AC. Its plug-in terminal type simplifies installation and replacement, reducing downtime during maintenance.
With an IP40 rating, the device is suited for indoor panel environments offering protection against foreign solid bodies. The relay tolerates ambient temperatures between -10°C and 55°C, ensuring reliable operation in typical industrial indoor settings.
Safety standards compliance includes CSA, UL (UL 508/CSA C22.2 No.14), CE marking, EN 61812-1, and IEC 60664-1 (4 kV/2), ensuring industrial-grade electrical safety and performance.
Applications of the Omron H3RN timer relay include sequence control in automated machinery, timed activation of valves and actuators, interlock and safety timing functions in relay logic, delay-on and interval timing for conveyor systems, and retrofit replacements for electromechanical timers.
Compact front mount for control panels. Supports 0.1 s to 10 min multifunction timing. DPST contacts rated at 3A, 250V AC. Plug-in terminal interface for easy service. Wide temperature operating range of -10°C to 55°C. IP40 enclosure suitable for protected environments.
Certified to IEC, UL, CSA, and CE standards. Discover more industrial relays and timer solutions on EnvMart to optimize your automation and control systems.
Explore more products in our Timer Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this model is from 0.1 seconds to 10 minutes, allowing for versatile applications in timing control.
It features a DPST (Double Pole Single Throw) contact configuration, enabling independent switching of two circuits.
This unit operates with a supply voltage of 12 to 24 V DC or 24 V AC, making it adaptable to various electrical systems.
The rated contact current is 3A at 250V AC, suitable for moderate load switching applications.
It has an IP40 rating, indicating it is protected against foreign solid bodies but not against water, making it suitable for indoor environments.
The operating temperature range is from -10°C to 55°C, ensuring reliable performance in typical industrial settings.
This model is designed for front mounting in control panels, facilitating easy installation and accessibility.
It utilizes a plug-in terminal type, which simplifies installation and replacement processes, reducing downtime during maintenance.
It complies with IEC, UL, CSA, and CE safety and electrical standards, ensuring industrial-grade safety and performance.
This multifunction timer supports various timing functions such as sequence control, timed activation of devices, and interlock timing in relay logic.
The dimensions are 31.2mm in height, 12.8mm in length, and 47.2mm in width, making it compact for control panel applications.
This model features 2 contacts, allowing for the control of two separate circuits simultaneously.
