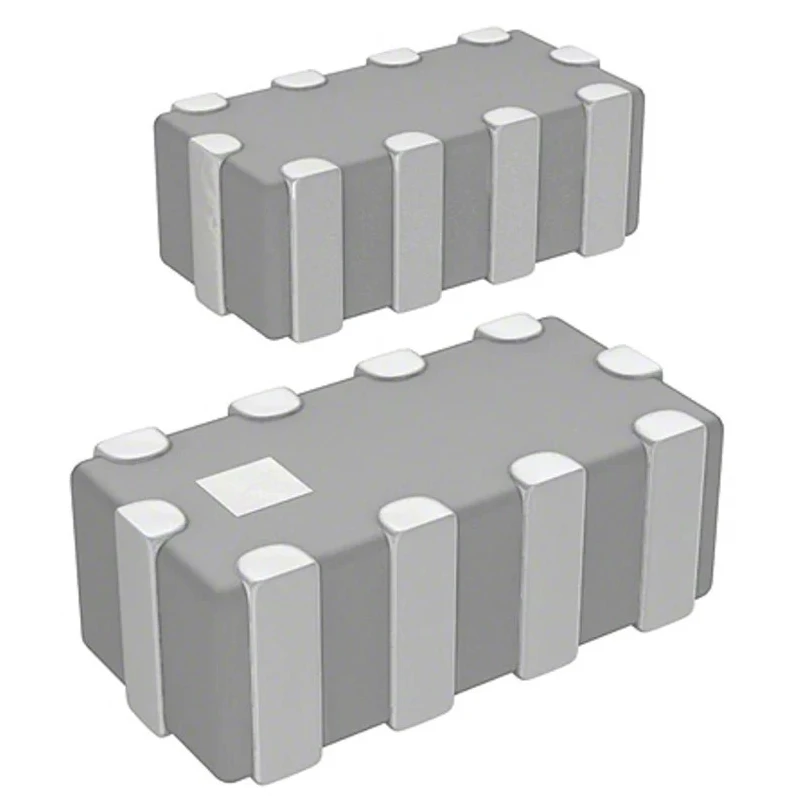

Murata EMI Filter NFA21SL 10V DC 80MHz 20mA 0805 Surface Mount Solder Termination 0.85mm Height 2mm Length 1.25mm Depth

Murata NFA21SL EMI Filter NFA21SL806X1A48L is designed for effective electromagnetic interference suppression in electronics, operating at 10V DC and 80MHz frequency with a maximum current rating of 20mA. The 0805 surface mount package utilizes Murata's ceramic processing and filter design technology, resulting in stable noise attenuation across a wide frequency range with a small, low profile footprint.

This EMI filter is suited for digital I/O lines in a variety of electronic equipment, including personal computers, communications devices, telephones, and digital television receivers. Its surface mount design with solder termination ensures secure and efficient PCB mounting.

The device operates reliably over a temperature span of -55°C to 125°C, making it suitable for industrial and commercial applications that require stringent electromagnetic compatibility.

Key features include a capacitance of 75pF and compact dimensions of 0.85mm height, 2mm length, and 1.25mm depth. This makes the filter ideal for applications with space constraints where performance and miniaturization are critical.

This EMI filter uses Murata's advanced ceramic technology for effective noise suppression. The 0805 package ensures a low profile with dimensions suitable for space-constrained PCB layouts. Operates over a wide temperature range from -55°C to 125°C for diverse industrial environments.

Features surface mount solder termination style for reliable PCB mounting. Capacitance is rated at 75pF for optimal signal filtering performance. Height, length, and depth measure 0.85mm, 2mm, and 1.25mm respectively, enabling miniaturized circuit designs.

Compliance with RoHS standards ensures environmental safety and quality. Applicable for EMI suppression in digital I/O lines of notebook size PCs and other electronic devices.

If you require reliable EMI filtering solutions for high-performance digital electronics, the Murata NFA21SL series provides excellent attenuation and compact size. Explore the EnvMart catalog for a wide range of electronic components and EMI Filters tailored to your industrial and manufacturing needs.
