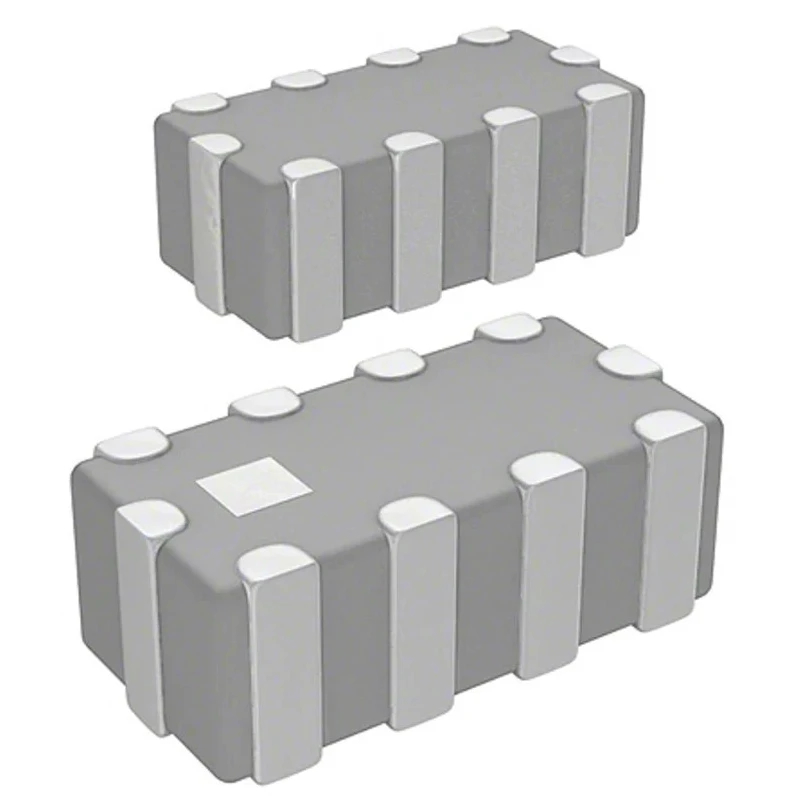

Murata EMI Filter Surface Mount 0805 Package 10V DC 20mA 80MHz NFA21SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.85mm |
| Length | 2mm |
| Model | NFA21SL |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Operating Frequency | 80MHz |
| Series | NFA21SL |
| Maximum Operating Temperature | 125°C |
| Capacitance | 75pF |
| Minimum Operating Temperature | -55°C |
| Maximum Current | 20mA |
| Maximum Voltage | 10V dc |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Termination Style | Solder |
Key Features
- This EMI filter uses Murata ceramic processing and filter design technology.
- It is designed for stable noise attenuation over wide frequency ranges.
- The 0805 SMT chip package is small and low profile, measuring 2 mm length, 1.25 mm depth, and 0.85 mm height.
- Operating temperature ranges from -55°C to 125°C for reliable performance in diverse environments.
- Typical applications include EMI suppression in digital I/O lines in personal computers and communication equipment.
- The termination style is solder, and mounting is surface mount type for PCB assembly.
- Capacitance value is 75 pF, supporting signal line noise reduction effectively.
- RoHS compliant ensuring environmental safety and regulatory adherence.
Product Description
Murata NFA21SL EMI Filter is a surface mount 0805 package chip designed for effective electromagnetic interference (EMI) suppression in electronic circuits. This 10V DC, 20mA maximum current filter operates at 80MHz frequency and is manufactured using Murata's advanced ceramic processing and filter design technologies.
The compact 0805 SMT form factor, measuring 2 mm in length, 1.25 mm in depth, and 0.85 mm in height, makes it ideal for space-constrained digital I/O lines in modern electronic equipment such as personal computers, communication devices, telephones, and digital TV systems.
This filter features a stable noise attenuation over a wide frequency range, preventing ringing caused by circuit impedance. It is solder termination and surface-mounted for efficient PCB assembly with Tape & Reel packaging suitable for automated production lines.
Operating temperature ranges from -55°C to 125°C, ensuring robust performance under various environmental conditions. The capacitance of 75 pF optimally supports signal line noise suppression.
The product meets RoHS standards, confirming it is environmentally safe and free from hazardous substances. This EMI filter is suited for industrial, laboratory, communications, and consumer electronics applications where EMI noise reduction is critical.
This EMI filter uses Murata ceramic processing and filter design technology. It is designed for stable noise attenuation over wide frequency ranges. The 0805 SMT chip package is small and low profile, measuring 2 mm length, 1.25 mm depth, and 0.85 mm height.
Operating temperature ranges from -55°C to 125°C for reliable performance in diverse environments. Typical applications include EMI suppression in digital I/O lines in personal computers and communication equipment. The termination style is solder, and mounting is surface mount type for PCB assembly.
Capacitance value is 75 pF, supporting signal line noise reduction effectively. RoHS compliant ensuring environmental safety and regulatory adherence. Explore more EMI Filters and signal filter components at EnvMart to meet your industrial and commercial electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this EMI filter is 75 pF, which supports effective signal line noise reduction.
The maximum operating temperature for this EMI filter is 125°C, allowing reliable performance in various environments.
This EMI filter comes in an 0805 package size, measuring 2 mm in length, 1.25 mm in depth, and 0.85 mm in height.
The operating frequency of this model is 80 MHz, providing stable noise attenuation over a wide range.
The maximum current rating for this filter is 20 mA, making it suitable for various electronic applications.
This EMI filter uses a solder termination style, which is compatible with surface mount PCB assembly.
The operating temperature range for this EMI filter is from -55°C to 125°C, ensuring it can function in diverse conditions.
This model supports surface mount type installation, suitable for automated production lines.
Yes, this EMI filter is RoHS compliant, ensuring it meets environmental safety standards and regulations.
The filter is packaged in Tape & Reel format, which is suitable for automated assembly processes.
Typical applications for this EMI filter include EMI suppression in digital I/O lines in personal computers and communication equipment.
The maximum voltage rating for this model is 10V DC, making it suitable for low-voltage applications.
