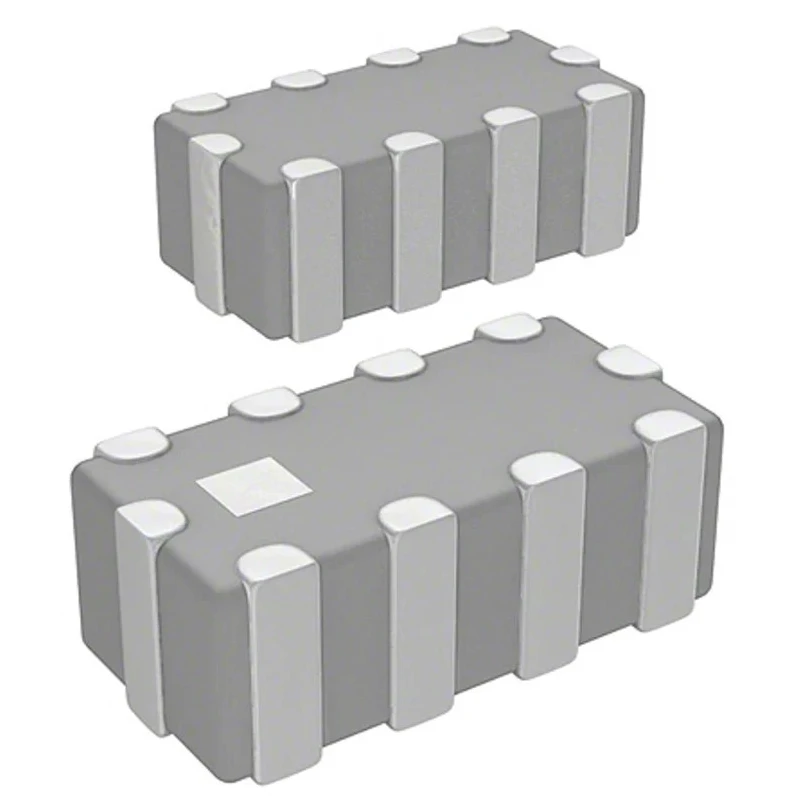

Murata EMI Filter Surface Mount 10V DC 50MHz 20mA 0805 Package NFA21SL
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.85mm |
| Length | 2mm |
| Model | NFA21SL |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Operating Frequency | 50MHz |
| Series | NFA21SL |
| Maximum Operating Temperature | 125°C |
| Capacitance | 80pF |
| Minimum Operating Temperature | -55°C |
| Maximum Current | 20mA |
| Maximum Voltage | 10V dc |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Termination Style | Solder |
Key Features
- Compact 0805 surface mount package measuring 2 mm length, 1.25 mm depth, and 0.85 mm height.
- Maximum voltage rating of 10 volts DC and maximum current of 20 milliamps.
- High operating frequency capability up to 50 MHz for noise reduction.
- RoHS compliant and uses solder termination for secure PCB mounting.
- Operational temperature range from -55°C to 125°C ensuring durability in various environments.
- Utilizes Murata’s advanced ceramic processing and filter design technology for stable noise attenuation.
- Ideal for use in personal computers, communications equipment, telephones, and digital TV devices.
- Packaged in tape and reel format for efficient assembly line usage.
Product Description
Murata NFA21SL EMI Filter with model code NFA21SL506X1A48L is a surface mount device housed in an 0805 package designed for EMI suppression in electronic circuits. It has a 10V DC maximum voltage rating and supports a maximum current of 20 mA, operating effectively across frequencies up to 50 MHz. The compact dimensions of 2 mm length, 1.25 mm depth, and 0.85 mm height make it suitable for space-constrained PCB applications.
This filter employs Murata’s ceramic processing technology combined with specialized filter design to prevent ringing caused by circuit impedance and provide stable noise attenuation over a broad frequency range. It is RoHS compliant and designed for solder termination on surface mount boards.
With an operating temperature range from -55°C to 125°C, it ensures reliable performance in diverse environments including industrial and commercial electronic systems.
Applications include personal computers, communications equipment, telephones, and digital television devices where EMI noise must be minimized to maintain signal integrity and reduce interference.
The device comes packaged in tape and reel format to support automated assembly processes, improving production efficiency. Compact 0805 SMT package ideal for high-density circuit boards. Maximum voltage of 10 volts DC and current of 20 milliamps.
High frequency operation at 50 MHz for effective EMI filtration. RoHS compliant ensuring environmental safety. Wide operating temperature range for versatility in application. Solder termination type for reliable PCB mounting.
Advanced Murata ceramic and filter technologies for efficient noise suppression. Suitable for use in laptops, communication devices, and digital TV circuits. Packaged for automated manufacturing in tape and reel format. Explore more EMI Filters and related components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this EMI filter is 10 volts DC.
It supports a maximum current of 20 milliamps.
This model operates effectively at frequencies up to 50 MHz.
The dimensions of the package are 2 mm in length, 1.25 mm in depth, and 0.85 mm in height.
The operational temperature range is from -55°C to 125°C.
It uses solder termination for secure PCB mounting.
Yes, this EMI filter is RoHS compliant, ensuring it meets environmental safety standards.
It is packaged in tape and reel format for efficient assembly line usage.
This model is ideal for use in personal computers, communications equipment, telephones, and digital TV devices.
The capacitance value of this EMI filter is 80 pF.
This model features a surface mount design, suitable for high-density circuit boards.
It utilizes advanced ceramic processing and filter design technology for stable noise attenuation.
