Murata 0402 Shielded Multilayer Surface Mount Inductor 6.8 nH ±5 % Tolerance 300 mA DC Current LQG15HN

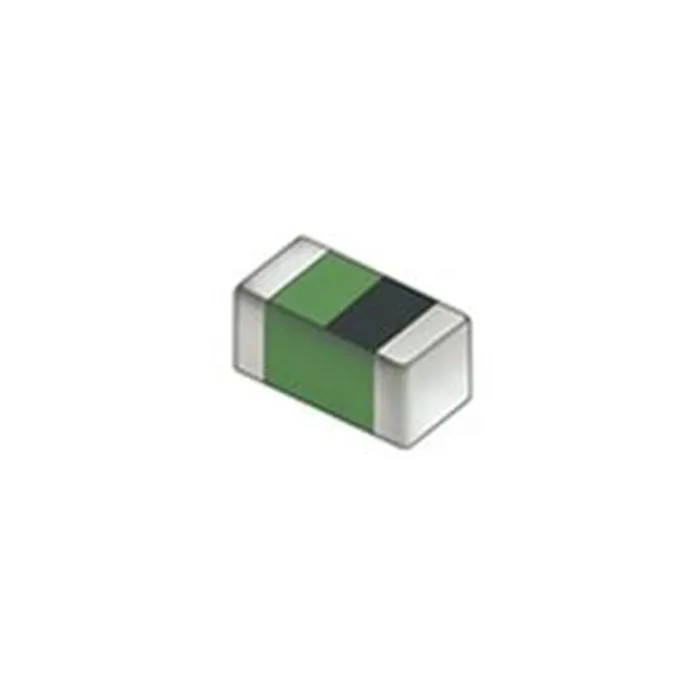

Murata LQG15HN 0402 Shielded Multilayer Surface Mount Inductor is a high-frequency chip inductor designed for precision applications requiring compact size and stable inductance. Featuring a multilayer monolithic construction and a shielded design, this inductor excels in minimizing electromagnetic interference and preserving signal integrity in demanding electronic circuits.

The compact 0402 package size measures 1 mm in length, 0.5 mm in height, and 0.5 mm in depth, accommodating high-density circuit boards with limited space. With an inductance of 6.8 nH and ±5 % tolerance, it ensures consistent performance across device batches. The maximum DC current rating of 300 mA and a maximum DC resistance of 290 mΩ provide a balanced trade-off between efficiency and power handling capability.

This inductor achieves a maximum self-resonant frequency of 6000 MHz and a minimum quality factor of 8, making it particularly suitable for high-frequency circuits such as RF circuit matching, WLAN networks, and mobile communication equipment resonance. The tin plating termination style facilitates excellent solderability and durability in surface mounting processes. The product is RoHS compliant, reinforcing environmental safety standards.

The operating temperature range from -55°C to 125°C ensures reliability in various industrial and commercial environments. These inductors are manufactured in Japan, underscoring stringent quality and manufacturing standards.

Compact 0402 package with dimensions 1 mm x 0.5 mm x 0.5 mm. Multilayer monolithic and shielded construction for reduced EMI and noise. Rated maximum DC current 300 mA and maximum DC resistance 290 mΩ. Inductance tolerance ±5 % with stable performance at high frequencies.

High maximum self-resonant frequency of 6 GHz suitable for RF applications. RoHS compliant for environmental safety. Wide operating temperature range from -55°C to 125°C. Tin plating termination for reliable soldering. Manufactured in Japan ensuring premium quality.

Ideal for choke applications, WLAN networks, and mobile communications.
