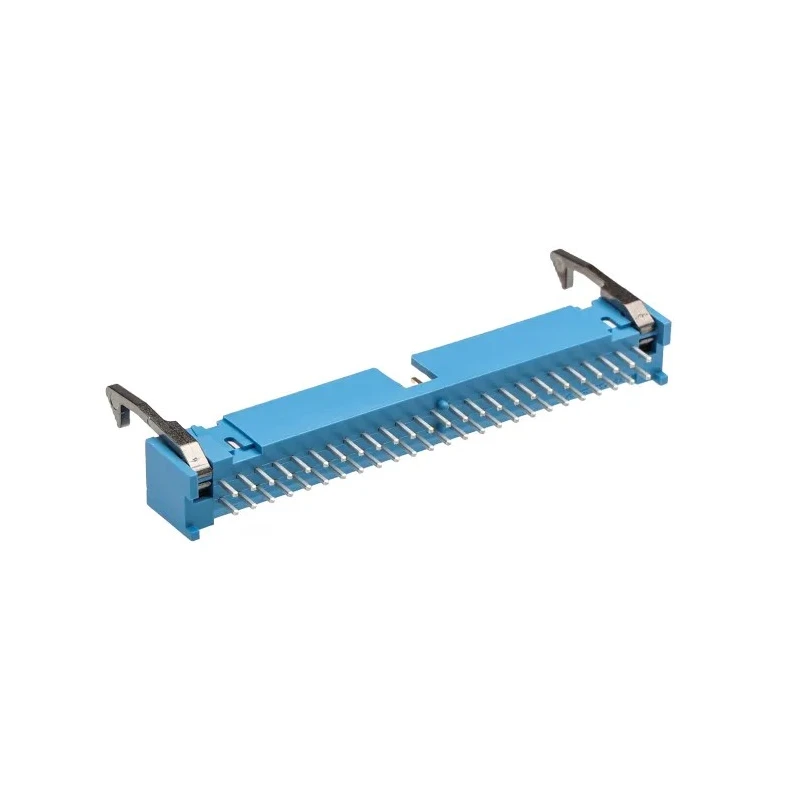

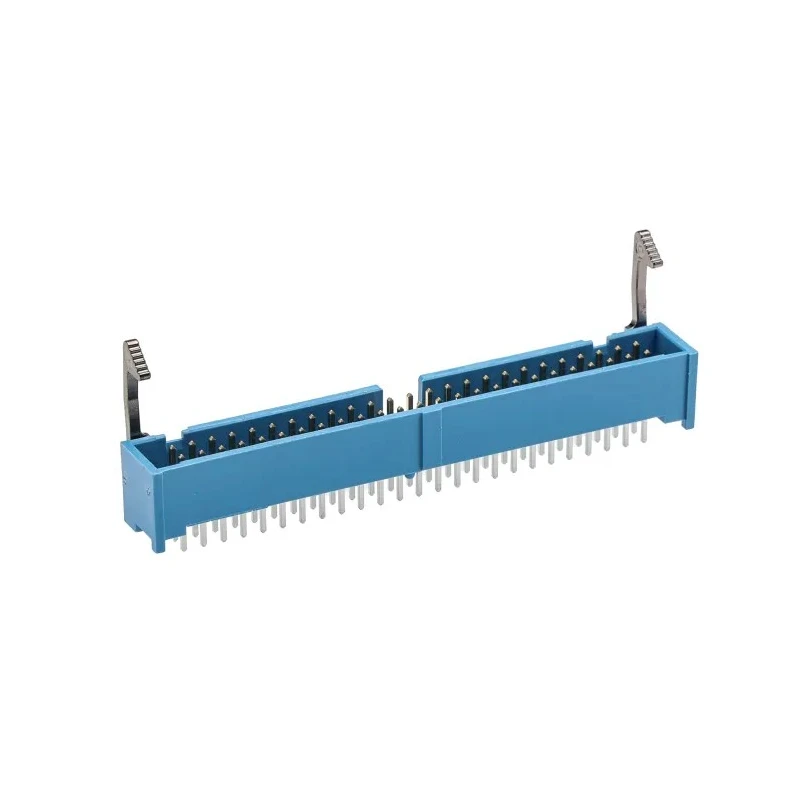

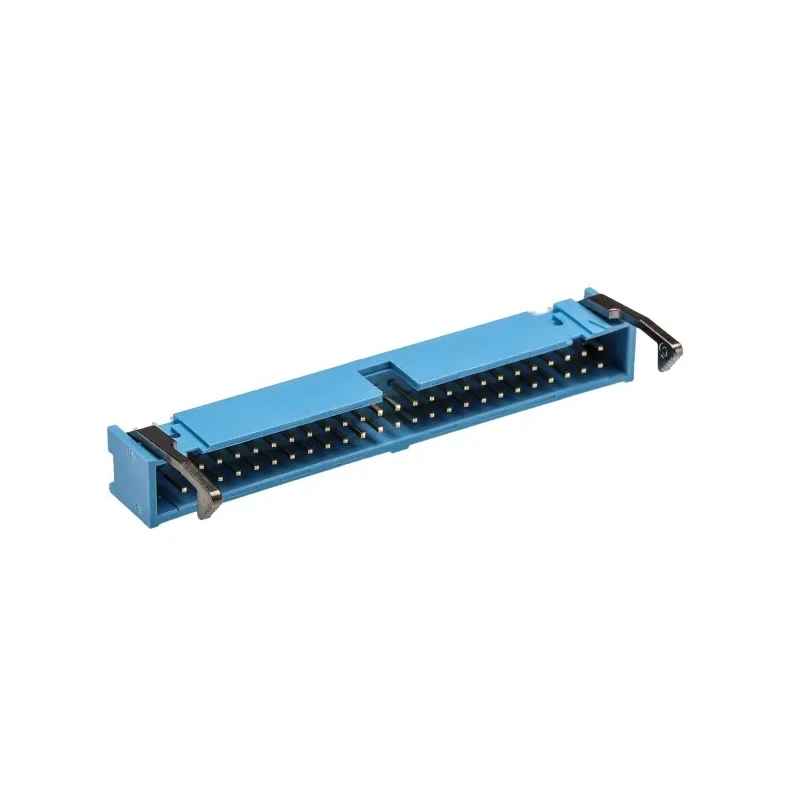

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 3-1761606-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.6mm |
Key Features
- This PCB header features a low profile with military and centre polarization for reliable performance.
- Ejector latches provide secure mating connection and easy removal from IDC ribbon cable receptacles.
- Constructed with polybutylene terephthalate housing and phosphor bronze contacts plated in gold.
- Designed for through hole mounting with a straight orientation and solder termination.
- Supports up to 1 Amp current and 250 V voltage with operating temperatures from -65°C to 105°C.
- Tail pin length measures 2.6 mm for stable PCB connection.
- Suitable for diverse applications including PCs, business equipment, medical, networking, industrial controls, appliances, and electrical testing.
- Connector system is wire-to-board, male contact gender, and the header is shrouded for protection.
Product Description
TE Connectivity 3-1761606-5 AMP-LATCH Series Straight Through Hole PCB Header is an advanced connector designed for reliable wire-to-board applications with a premium low profile and military grade polarization.
This shrouded PCB header features 50 gold-plated phosphor bronze contacts arranged in 2 rows with a 2.54 mm pitch, supporting a current rating of 1 Amp and voltage up to 250 Volts. The housing is molded from high-performance polybutylene terephthalate, ensuring durability and thermal stability between -65°C and 105°C. Tail pin length is precisely 2.6 mm to provide secure soldered connections on PCBs.
The AMP-LATCH connectors integrate ejector latches that enable both secure engagement and easy disconnection from mating IDC ribbon cable receptacles. The design includes options for long or short latch styles to accommodate connector strain relief requirements.
This product series finds application in a wide array of industrial and commercial equipment such as personal computers, business machines, medical instruments, data storage systems, networking gear, industrial control panels, household appliances, and electrical testing setups.
Low profile design with military and centre polarization. Ejector latches for secure mating and easy disconnection. Durable polybutylene terephthalate housing for thermal and mechanical stability. Gold-plated phosphor bronze contacts for excellent conductivity and corrosion resistance.
Through hole mount with straight orientation and solder termination type. Operational temperature range from -65°C to 105°C ensuring reliability in harsh environments. Rated for 1 Amp current and 250 Volt voltage applications.
Suitable for industrial, laboratory, manufacturing, and electronic testing equipment.
Choose TE Connectivity AMP-LATCH Series PCB headers for dependable interconnections in critical electronic assemblies. Explore more Electronic Components and PCB Headers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 250 Volts.
This model supports a current rating of 1 Amp.
The contacts in this PCB header are arranged with a pitch of 2.54 mm.
The housing is made from polybutylene terephthalate, and the contacts are phosphor bronze plated in gold.
The tail pin length measures 2.6 mm, providing stable connections on PCBs.
The operating temperature range for this header is from -65°C to 105°C.
This PCB header features 50 contacts arranged in 2 rows.
This model uses a solder termination type for secure connections.
Yes, this header is designed for through hole mounting with a straight orientation.
It is suitable for a variety of applications including PCs, medical instruments, networking equipment, and industrial controls.
This header utilizes a wire-to-board connector system with male contact gender.
Yes, it includes ejector latches that provide secure mating connections and allow for easy removal from IDC ribbon cable receptacles.
