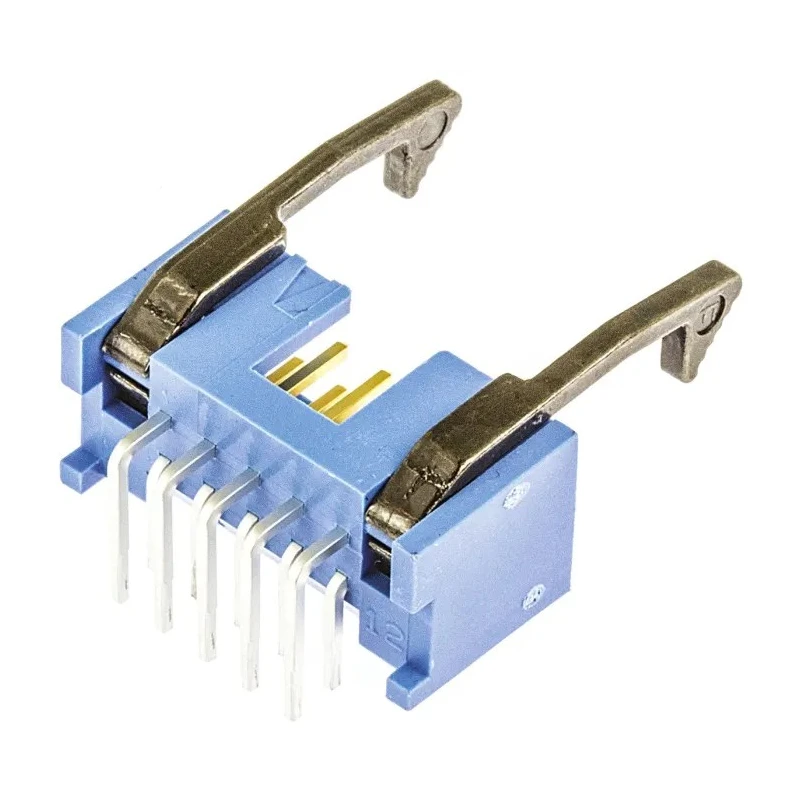

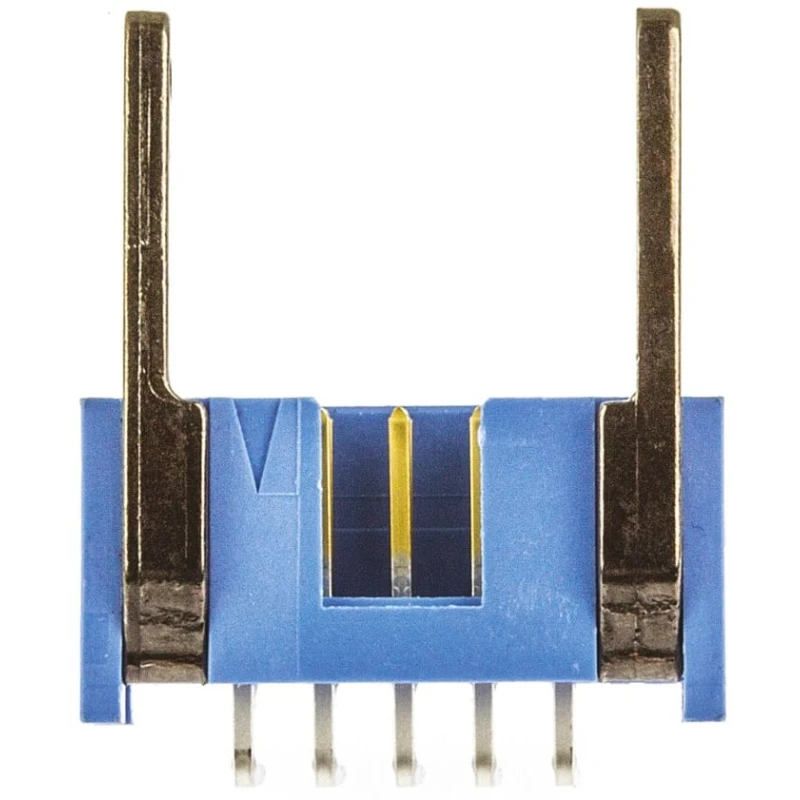

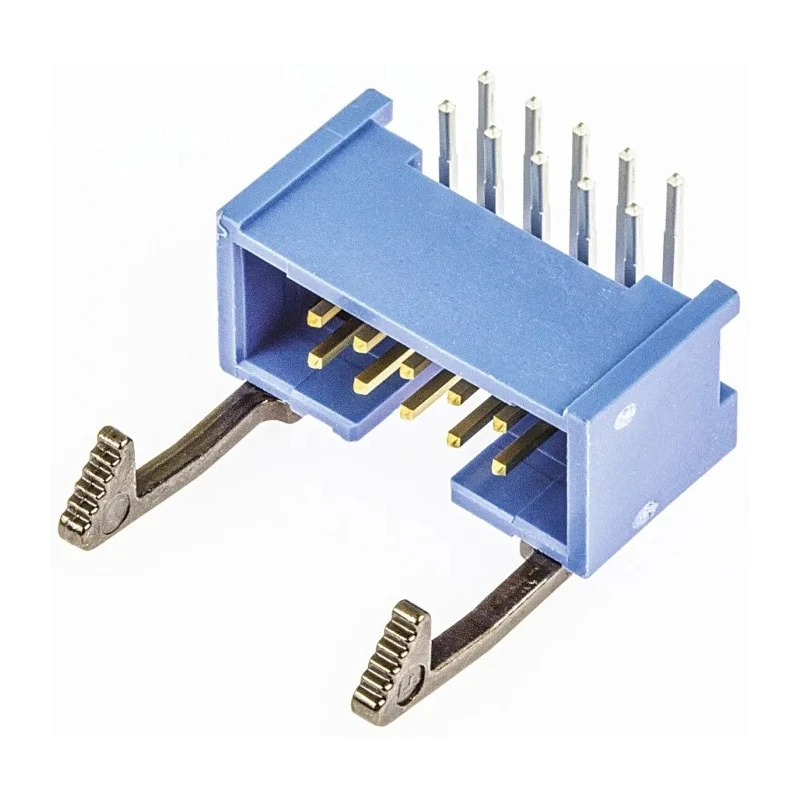

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-1761607-3

TE Connectivity 2-1761607-3 AMP-LATCH Series Right Angle Through Hole PCB Header features a robust design with a 2.54 mm pitch and 10 male contacts arranged in 2 rows. This shrouded PCB header provides secure wire-to-board connectivity optimized for various electronic applications requiring reliable performance.

The housing is made of durable polybutylene terephthalate, ensuring mechanical stability and resistance to temperature extremes ranging from -65°C to 105°C. Contacts are made of phosphor bronze with gold plating, delivering excellent conductivity and corrosion resistance. The connector uses a through hole mount with a right angle orientation, ideal for space-constrained PCB layouts.

AMP-LATCH PCB headers incorporate military center polarization and ejector latches for secure connection and straightforward removal from mating IDC ribbon cable receptacles. Multiple latch styles are available to accommodate different strain relief requirements.

Rated for 1 Amp current and a maximum voltage of 250V, this PCB header is suited for industrial controls, medical devices, storage systems, networking hardware, business equipment, and electrical testing instruments. The low profile and rugged construction make it a reliable choice for demanding environments.

The shrouded design protects the contacts from accidental damage and enhances connection integrity during repeated mating cycles. These PCB headers adhere to high manufacturing standards but do not list additional certifications.

Features 10 male contacts arranged in 2 rows with a 2.54 mm pitch. Constructed with polybutylene terephthalate housing for durability. Phosphor bronze contacts plated with gold for superior conductivity. Right angle orientation with through hole mount ensures stable PCB installation.

Supports operating temperatures from -65°C to 105°C. Rated for 1 Amp current and 250V voltage handling capacity. Equipped with ejector latches offering secure mating and easy disconnection. Designed with military center polarization and low profile form factor.

Suitable for industrial, medical, networking, storage, and testing equipment applications. Shrouded design protects contacts and enhances connection reliability.

This product is part of the TE Connectivity line of PCB headers designed to meet high-reliability requirements in varied industrial and commercial sectors. It is categorized under Electronics & Electricals > Electronics Components > PCB Headers in the EnvMart catalog.
