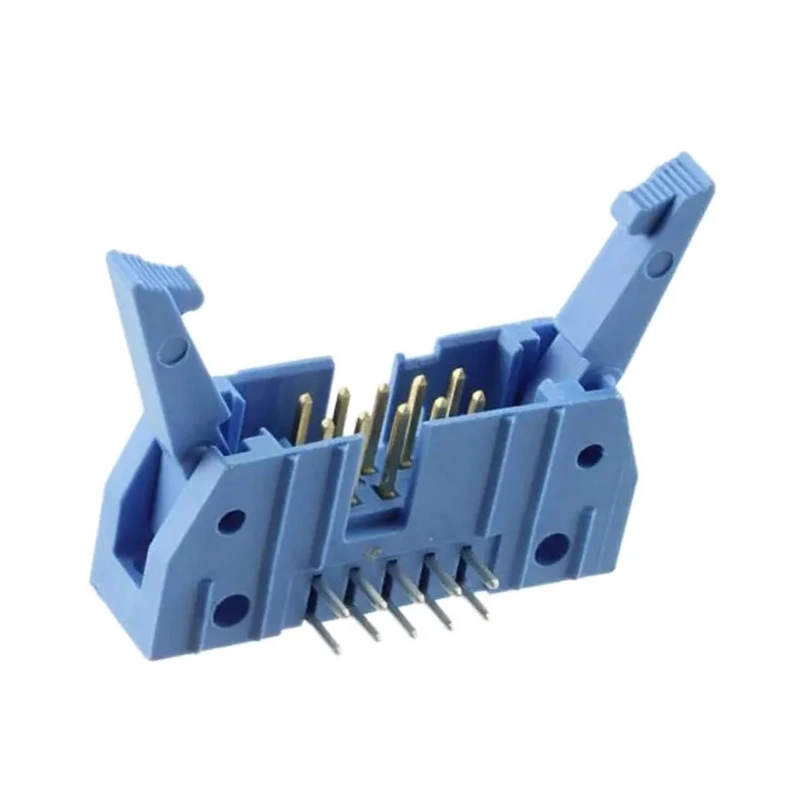

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header 10 Contacts 2.54mm Pitch 2 Row Shrouded 2-5499141-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Nylon |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Features 10 male contacts arranged in two rows with 2.54mm pitch.
- Constructed with glass filled nylon housing for durability.
- Gold plated phosphor bronze contacts ensure excellent conductivity.
- Shrouded design provides protection and polarization for accurate mating.
- Suitable for wire-to-board applications with solder termination.
- Supports a current rating of 1A and voltage up to 250V.
- Operating temperature range from -65°C to 105°C.
- Includes long and short ejection latch options for secure connections.
Product Description
TE Connectivity 2-5499141-1 AMP-LATCH Series right angle through hole PCB header is designed for secure and efficient wire-to-board connections. Featuring 10 male contacts spaced at 2.54 mm pitch in two rows, this shrouded PCB header provides reliable electrical performance and protection against mis-mating. The glass filled nylon housing enhances mechanical strength, while phosphor bronze contacts with gold plating assure superior conductivity and corrosion resistance.
This PCB header supports operation within a wide temperature range from -65°C to 105°C and withstands voltages up to 250V with a current rating of 1A. The solder termination and through hole mount type facilitate sturdy PCB assembly. The AMP-LATCH universal ejection style offers long and short latch versions to enable secure mating and easy removal with IDC ribbon cable receptacle connectors, making it suitable for diverse applications including PCs, medical equipment, industrial controls, and networking devices.
The shrouded design provides polarization to prevent incorrect mating, improving the reliability of electronic assemblies. The connector's rugged build and precise engineering support demanding industrial and commercial use. Its versatility and proven reliability make it an essential component in various electronic manufacturing processes.
Features 10 male contacts arranged in two rows with 2.54mm pitch. Constructed with glass filled nylon housing for durability. Gold plated phosphor bronze contacts ensure excellent conductivity. Shrouded design provides protection and polarization for accurate mating.
Suitable for wire-to-board applications with solder termination. Supports current rating of 1A and voltage up to 250V. Operating temperature range from -65°C to 105°C. Includes long and short ejection latch options for secure connections.
Ideal for use in industrial, medical, networking, and business equipment applications. This product complies with standard PCB header requirements for industrial and electronic applications, offering robust performance and ease of integration.
Explore more TE Connectivity components and accessories in EnvMart’s Electronics Components category for comprehensive solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum voltage of 250V and a current rating of 1A.
It features 10 male contacts arranged in two rows with a pitch of 2.54mm.
The housing is constructed from glass filled nylon, while the contacts are made of phosphor bronze with gold plating.
It utilizes solder termination for secure connections.
The operating temperature range is from -65°C to 105°C.
This connector supports through hole mounting.
Yes, it includes both long and short ejection latch options for secure connections.
The orientation of this model is right angle.
Yes, it is designed for wire-to-board applications.
The contacts in this connector are male.
The shrouded design provides protection and polarization to prevent incorrect mating, enhancing reliability.
The country of origin for this product is India.
