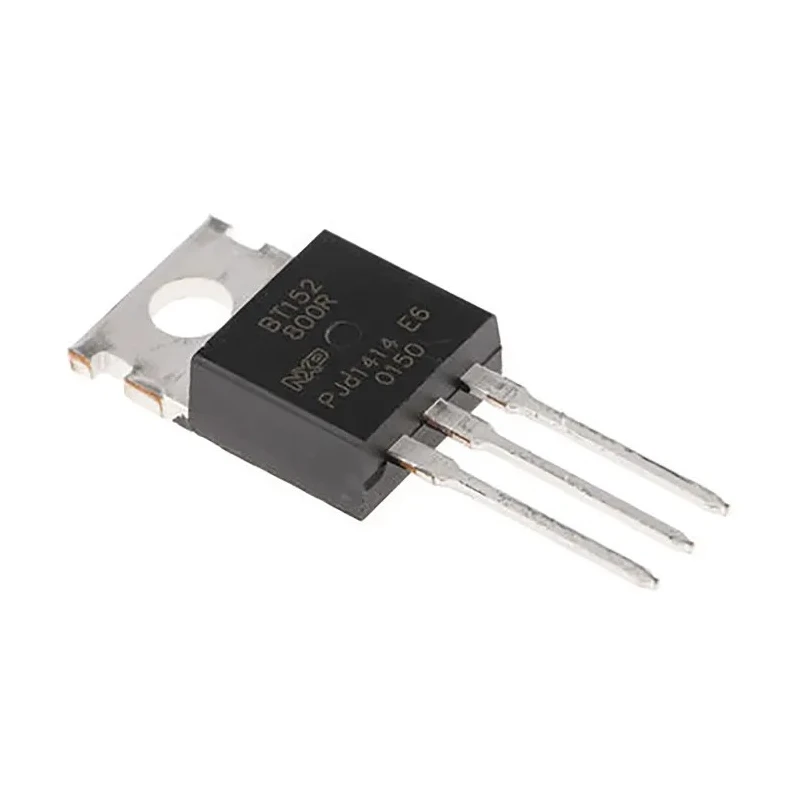

WeEn Semiconductors Co., Ltd Thyristor SCR 800 V, 13 A, 32 mA Gate Current, 220 A Surge Current, TO-220 BT152-800R,127

Free Delivery in India | Lowest Global Shipping Charges

WeEn Semiconductors Co., Ltd Thyristor SCR 800 V, 13 A, 32 mA Gate Current, 220 A Surge Current, TO-220 BT152-800R,127

Name: WeEn Semiconductors Co., Ltd Thyristor SCR 800 V, 13 A, 32 mA Gate Current, 220 A Surge Current, TO-220 BT152-800R,127
Brand: WeEn Semiconductors Co., Ltd
SKU: 138391
Price: 1.14 USD
Availability: InStock



Category Thyristor Brand WeEn Semiconductors Co., Ltd Condition New

Specifications

Country of Origin	China
Brand	WeEn Semiconductors Co., Ltd
Model	BT152-800R,127
Mount Type	Through Hole
Maximum Operating Temperature	125°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	13A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	800V
Surge Current Rating	220A
Maximum Gate Trigger Current Igt	32mA
Maximum Holding Current Ih	60mA
Maximum Gate Trigger Voltage Vgt	1.5V
Peak On-State Voltage	1.75V
Repetitive Peak Off-State Current	1mA
NXP, BT152-800R, Thyristor, 800V 13A, 32mA 3-Pin, TO-220ABBrand	WeEn Semiconductors Co., Ltd

Key Features

This thyristor has a peak surge current rating of 220 A for high transient loads.
The package type is TO-220 with through hole mounting.
Maximum gate trigger current is 32 mA with gate trigger voltage at 1.5 V.
Operates reliably from -40°C to 125°C temperature range.
Designed for phase control switching and high bi-directional blocking voltage.
Has a maximum holding current of 60 mA and repetitive peak reverse voltage of 800 V.
Features a peak on-state voltage of 1.75 V and 3-pin configuration.

Product Description

WeEn Semiconductors Co., Ltd BT152-800R,127 thyristor is a high-performance silicon-controlled rectifier (SCR) designed for industrial power control applications. Rated for 800 V and 13 A average on-state current, it supports high surge currents up to 220 A, making it suitable for phase control and switching circuits in power electronics, motor controls, and industrial automation.

Encapsulated in a TO-220 plastic package with a three-pin through-hole mount design, this component ensures thermal cycling durability and high bidirectional blocking voltage capability for robust performance in demanding electrical environments. It supports operation across a broad temperature range from -40°C to 125°C.

The thyristor features a maximum gate trigger current of 32 mA and a gate trigger voltage of 1.5 V, enabling responsive and reliable triggering. Its maximum holding current is 60 mA with a repetitive peak reverse voltage (VDRM) rated at 800 V. The peak on-state voltage is 1.75 V, ensuring efficient conduction once triggered.

This product is manufactured in China and complies with industry standards excluding automotive certifications. It is ideal for industrial, commercial, and electrical control systems that require solid-state switching components with high voltage and current capabilities.

This thyristor enables phase control applications requiring high surge current endurance. Its TO-220 package allows easy mounting and effective heat dissipation. Suitable for use in power converters, motor drives, and lighting controls.

Low gate trigger parameters ensure energy-efficient switching. Wide operating temperature range ensures stable performance under varied conditions. Robust design supports high bi-directional blocking voltage and surge currents.
