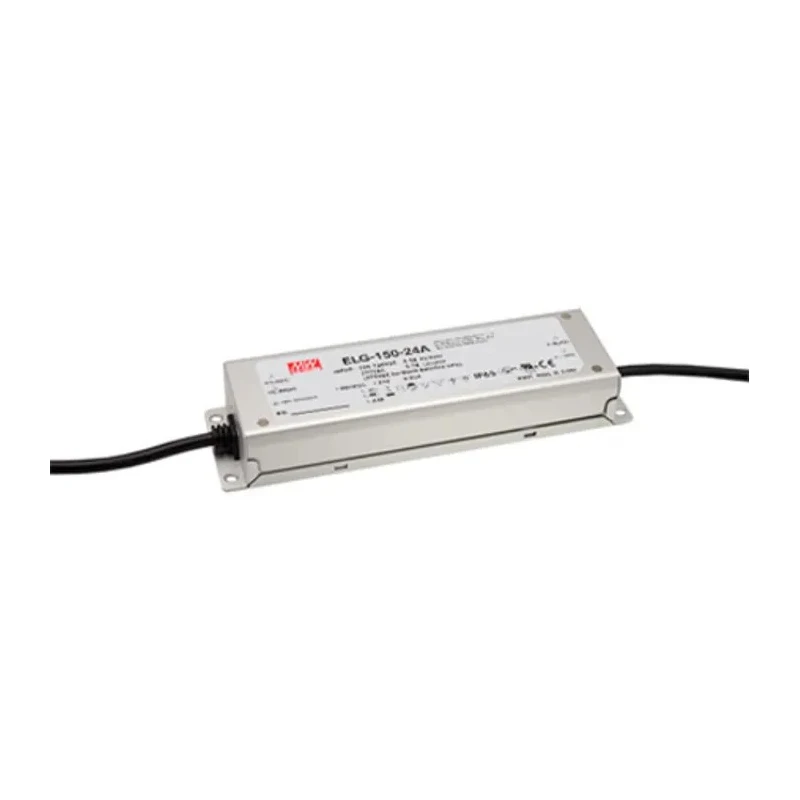

MEAN WELL IP67 1 Output Dimmable LED Driver, 54V Output Voltage, 150W Power, 900mA Current
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | ELG-150 |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Current/Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 150W |
| Input Voltage | 180, 305, 254, 431V ac |
| Output Voltage | 54V |
| Power Dissipation | 151.2W |
| Standards/Approvals | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
| Dimming Operation | Potentiometer |
| Primary Type | AC-DC, DC-DC |
| Driver Current | 900mA |
| Standards/ApprovalsCB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
| CB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 |
Key Features
- Fan-less design ensures high efficiency and reliable operation.
- Supports both potentiometer and PWM dimming options for flexible control.
- Encapsulated robust full metal housing provides IP67 protection.
- Wide input voltage range from 180V to 431V AC for diverse applications.
- Suitable for LED street lighting, architectural lighting, bay, and floodlighting.
- Built-in active PFC function to enhance power quality.
- Class 2 power unit compliant with multiple international safety standards.
- Single output configuration with constant current/voltage operating modes.
Product Description
MEAN WELL ELG-150-54B is a high-performance IP67 rated dimmable LED driver designed for industrial and commercial LED lighting applications. It provides a stable 54V output voltage at a maximum output power of 150W and a constant driving current of 900mA, ensuring reliable LED operation in harsh environments.
Featuring a fan-less design and encapsulated robust full metal housing, this LED driver delivers high efficiency up to 91% while maintaining operation within a wide temperature range. The IP67 rating guarantees excellent resistance to dust and water ingress, making it suitable for outdoor and demanding indoor applications.
The driver supports both potentiometer and PWM signal dimming, allowing flexibility in lighting control systems. It operates under constant current and constant voltage modes with a screw-type mounting configuration and wire terminal connections for easy integration.
Input voltage compatibility spans a broad range from 180 to 431 volts AC, accommodating different power supply standards. Built-in active power factor correction (PFC) enhances power quality and reduces electrical noise, complying with Class 2 power unit safety regulations and multiple international approvals including CB, CE, CCC, and UL.
Typical use cases include LED street lighting, architectural lighting, bay lighting, and floodlighting in industrial and commercial facilities. The ELG-150 series reliability and rugged design make it an excellent choice for demanding LED lighting projects.
Fan-less design ensures high efficiency and reliable operation. Supports both potentiometer and PWM dimming options for flexible control. Encapsulated robust full metal housing provides IP67 protection. Wide input voltage range from 180V to 431V AC for diverse applications.
Suitable for LED street lighting, architectural lighting, bay, and floodlighting. Built-in active PFC function to enhance power quality. Class 2 power unit compliant with multiple international safety standards. Single output configuration with constant current/voltage operating modes.
Screw mount type with wire terminal connection for secure installation. Explore more LED Drivers and power supplies for industrial and commercial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150W.
It provides a stable output voltage of 54V.
The input voltage range spans from 180V to 431V AC.
This LED driver operates at a constant driving current of 900mA.
It supports both potentiometer and PWM signal dimming options for flexible control.
The driver has an IP67 rating, ensuring protection against dust and water ingress.
It features a screw-type mounting configuration for secure installation.
This model operates in both constant current and constant voltage modes.
It uses wire terminal connections for integration.
It is compliant with multiple international safety standards including CB, CE, CCC, and UL.
The country of origin for this model is India.
It is suitable for LED street lighting, architectural lighting, bay lighting, and floodlighting.
