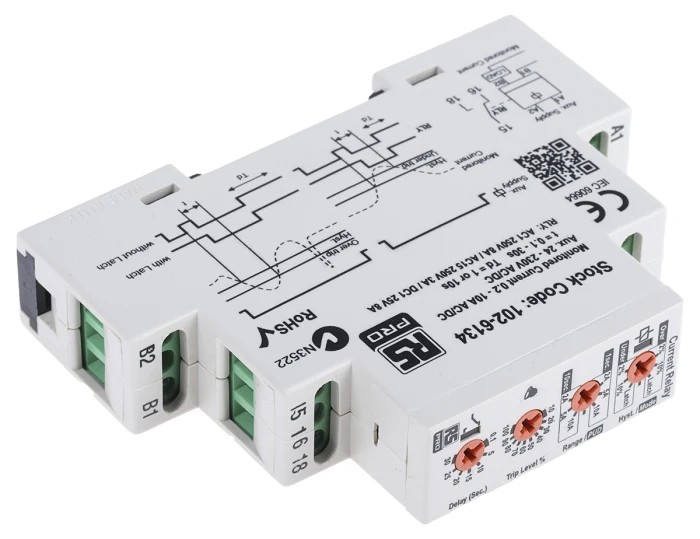

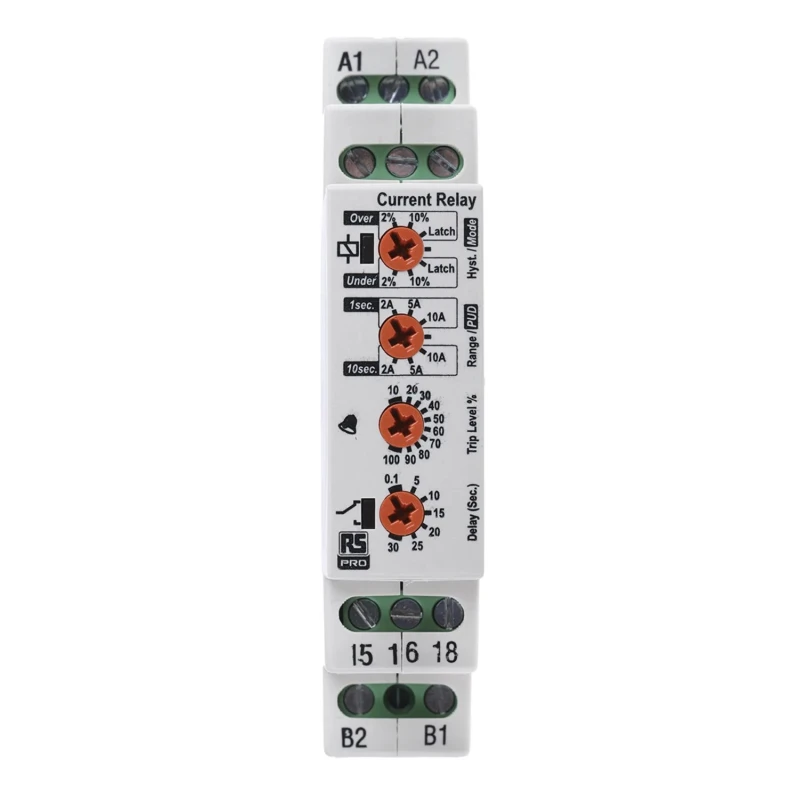

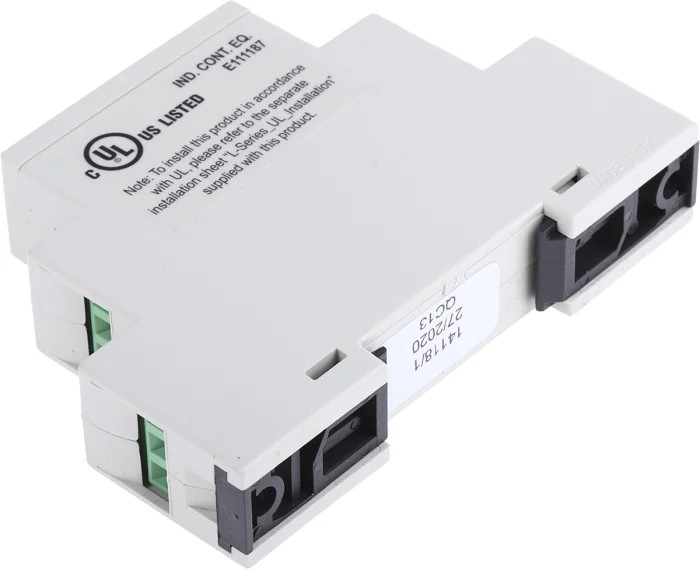

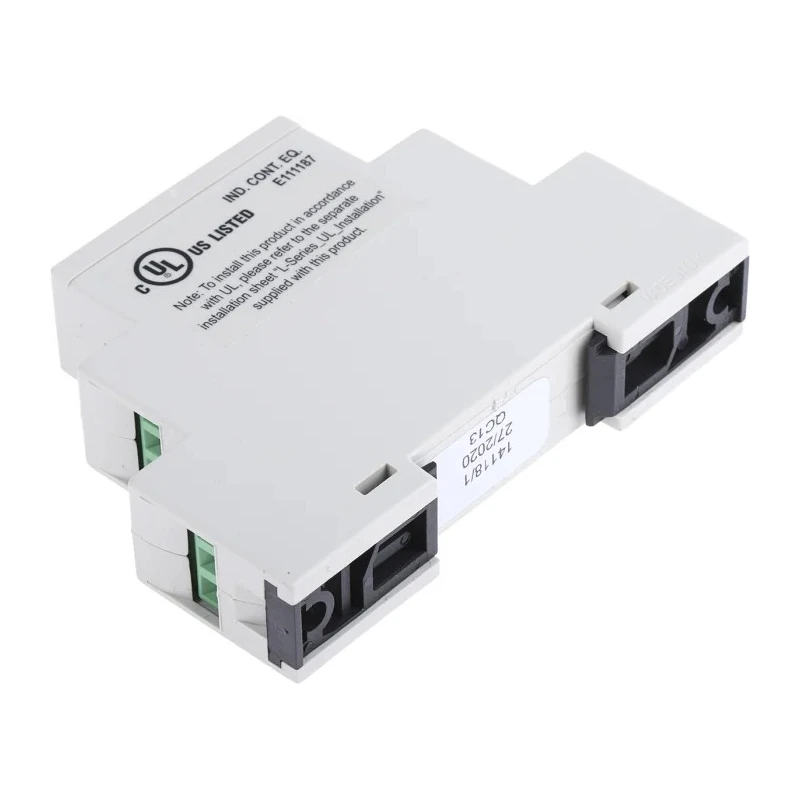

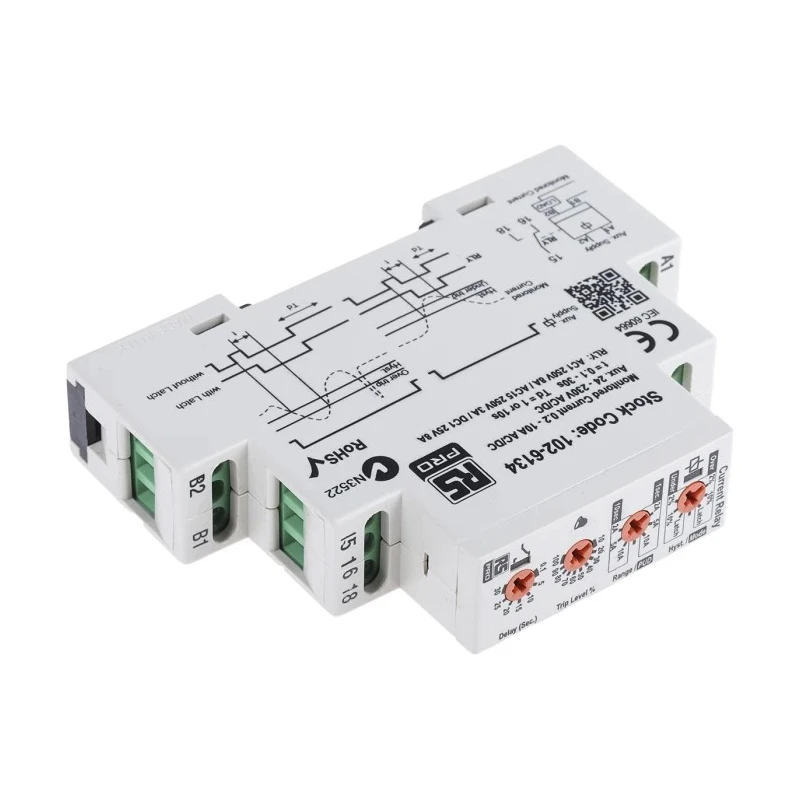

Omron Monitoring Relay, 1 Phase, SPDT, DIN Rail Mount, 1A to 10A Current, 230V AC Supply, Model 102-6134
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Omron |
| Height | 89mm |
| Length | 66.5mm |
| Model | 102-6134 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 0.1 to 30 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | cUL, EN 61000-6-4, IEC 60664, RoHS |
| Supply AC Voltage | 230, 24V ac |
| Minimum Current Sensed | 1A |
| Maximum Current Sensed | 10A |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 8A |
| Crouzet Current Monitoring Relay, SPDTBrand | Crouzet |
Key Features
- Designed for single-phase electrical systems with SPDT contact configuration.
- Adjustable current sensing range from 1A to 10A suitable for various applications.
- Supply voltage compatibility includes 230V AC and 24V AC for flexible installations.
- Features an adjustable time delay from 0.1 to 30 seconds enhancing operational control.
- Compact housing with dimensions 17.5 mm x 66.5 mm x 89 mm suitable for DIN rail mounting.
- Equipped with screw-type terminals for secure wire connections.
- Operating temperature range from -20°C to +60°C for reliable performance in diverse environments.
- Conforms to cUL, EN 61000-6-4, IEC 60664 standards and RoHS compliant.
Product Description
RS PRO 102-6134 Monitoring Relay is a high-performance single-phase relay with SPDT contact configuration designed for precise current monitoring and control in industrial and electrical applications. It mounts on a standard 17.5 mm DIN rail, offering easy installation in control panels and switchboards.
This relay supports a current sensing range between 1A and 10A with dual overcurrent and undercurrent detection capabilities. It operates with a supply voltage of 230V AC and 24V AC, making it versatile for various power systems. The adjustable time delay feature from 0.1 to 30 seconds provides customizable response times to fit different operational requirements.
Constructed with a microprocessor-based design, the relay accurately measures RMS values of pure and distorted AC currents, ideal for environments affected by variable speed drives and pulsed currents. Its screw terminal connections ensure secure wiring, while the flame retardant case adheres to universal UL standards for safety and longevity.
Operational temperature tolerance from -20°C to +60°C allows deployment in diverse industrial settings, including manufacturing plants, automation systems, HVAC control, and electrical distribution monitoring. The relay is compliant with cUL, EN 61000-6-4, IEC 60664 and RoHS directives, ensuring conformity with global quality and environmental standards.
Single phase, SPDT relay with DIN rail mount for compact panel integration. Adjustable current range sensing from 1A to 10A with overcurrent and undercurrent sensitivity. Wide supply voltage adaptability at 24V AC to 230V AC enhances application versatility.
Time delay settings of 0.1 to 30 seconds improve control precision. Robust flame retardant housing with LED status indicators for easy operational monitoring. Complies with international safety and electromagnetic compatibility standards.
Ideal for industrial, automation, HVAC, and electrical distribution applications.
This RS PRO monitoring relay offers reliable and efficient current control for complex electrical environments, supporting operational safety and system monitoring requirements. Discover more products in our Monitoring Relays category at EnvMart for your electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current sensing range of this monitoring relay is adjustable from 1A to 10A, allowing it to detect both overcurrent and undercurrent conditions.
This model operates with supply voltages of 230V AC and 24V AC, providing flexibility for various electrical systems.
The relay features an adjustable time delay ranging from 0.1 to 30 seconds, which enhances operational control and response time.
The dimensions of this monitoring relay are 17.5 mm in width, 66.5 mm in length, and 89 mm in height, making it suitable for DIN rail mounting.
It is equipped with screw-type terminals, ensuring secure wire connections for reliable operation.
The relay operates within a temperature range of -20°C to +60°C, making it suitable for various industrial environments.
This model conforms to cUL, EN 61000-6-4, IEC 60664 standards, and is RoHS compliant, ensuring it meets international safety and environmental regulations.
The contact configuration of this relay is SPDT (Single Pole Double Throw), allowing for versatile switching applications.
The relay contact current rating is 8A, which supports various load requirements in electrical applications.
This monitoring relay is suitable for use in industrial applications, including manufacturing plants, automation systems, HVAC control, and electrical distribution monitoring.
It is designed for DIN rail mounting, allowing for easy installation in control panels and switchboards.
This monitoring relay supports a single-phase electrical system, making it ideal for specific electrical monitoring tasks.
