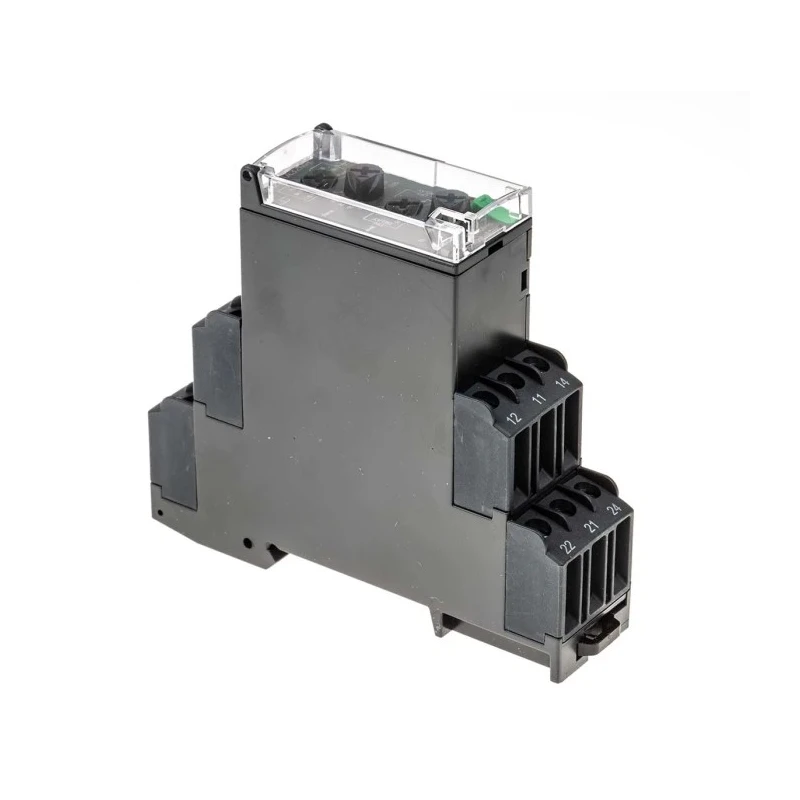

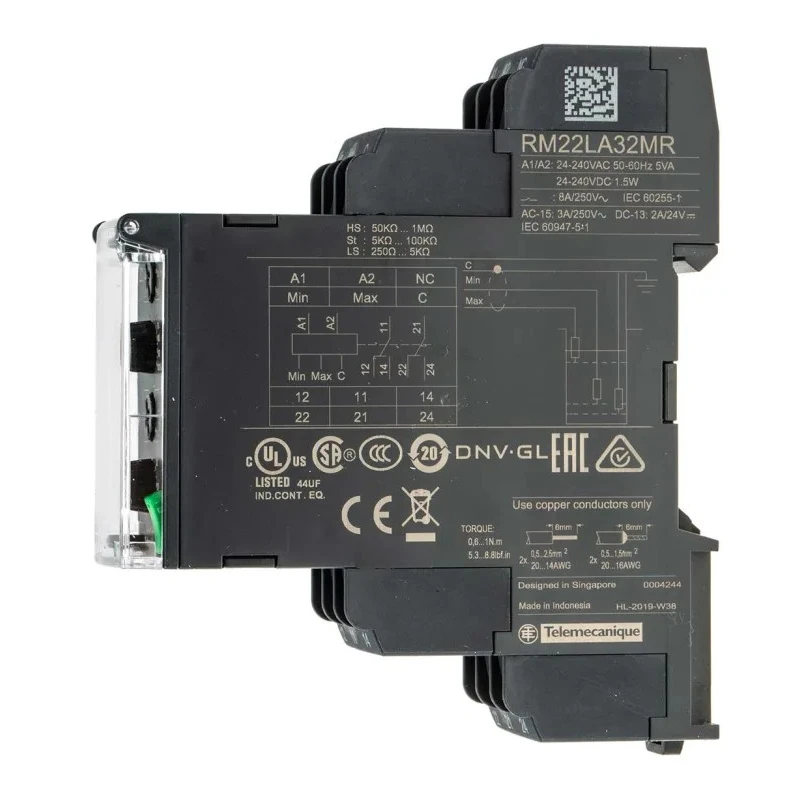

Schneider Electric Single-Phase Monitoring Relay DPDT, DIN Rail Mount, 24V AC, 250V AC Switching Voltage RM22LA32MR

Schneider Electric RM22LA32MR is a single-phase monitoring relay engineered for precise level detection and control, equipped with a DPDT (Double Pole Double Throw) contact configuration. It supports switching voltages up to 250 V AC and can be mounted conveniently on DIN rails within control panels.

This monitoring relay features an adjustable time delay ranging from 0.1 to 30 seconds allowing users to fine-tune response times according to application requirements. It operates efficiently with low power consumption of about 1.5W DC, contributing to overall energy savings.

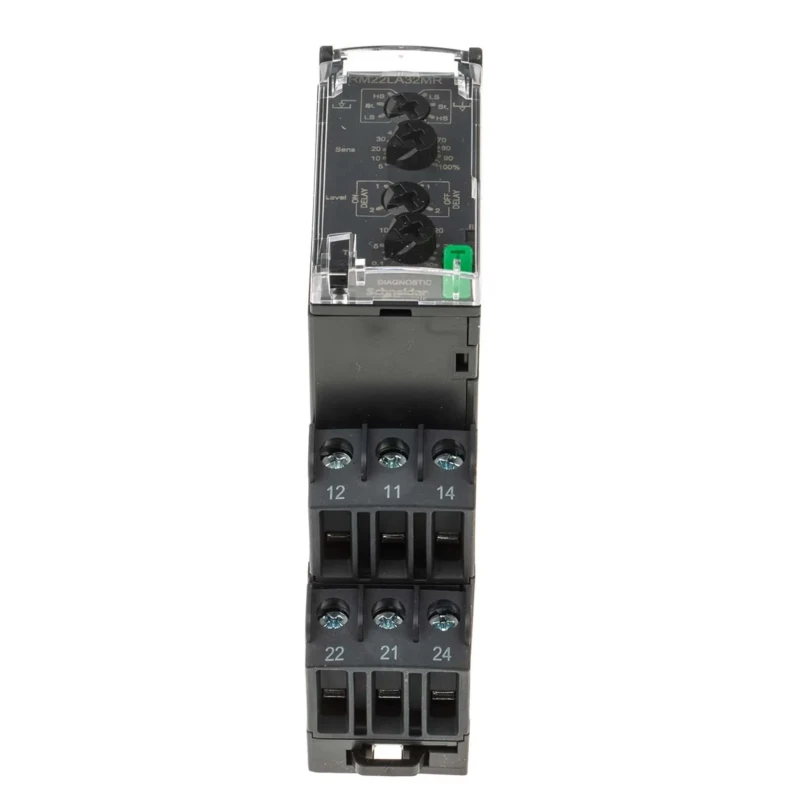

The product is designed to function reliably across a wide temperature span from -20°C to +60°C, suitable for demanding industrial environments. It includes front-facing screw terminals that provide safe and easy wiring connections and LED indicators for straightforward operational status monitoring.

Constructed with a self-extinguishing plastic housing, the RM22LA32MR also meets safety standards such as CE, CSA, and UL. Its cadmium-free contacts reduce environmental contamination risk, aligning with modern environmental standards.

With a robust mechanical endurance rated for up to 10 million cycles, this relay ensures long-term reliability in industrial applications including pump and fan control, water treatment facilities, and food and beverage production.

DIN rail mounting enables flexible and convenient installation. Time delay adjustment optimizes control precision. LED indicators simplify monitoring and troubleshooting. Cadmium-free contacts promote environmental safety.

Self-extinguishing housing enhances fire safety compliance. Extensive operating temperature range allows use in harsh conditions. Long mechanical life supports continuous industrial use. Low power consumption promotes energy efficiency.

Complies with international standards CE, CSA, and UL. Effective for liquid level and pump control applications. Explore a broad selection of Schneider Electric products in the Monitoring Relay category for diverse industrial control needs at EnvMart.
