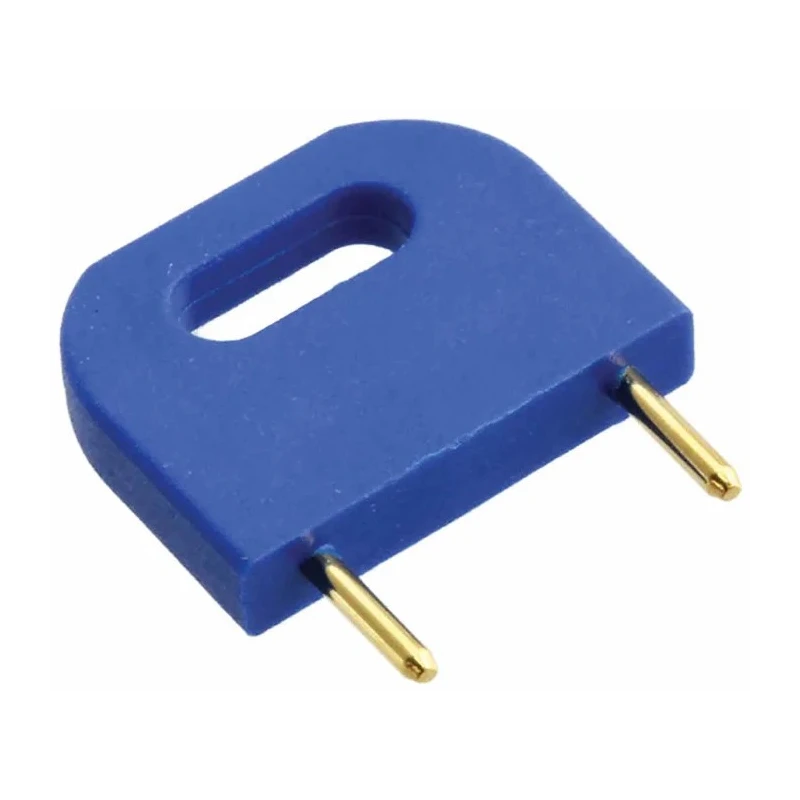

HARWIN Shorting Link Closed Top Male Connector 2 Contacts 10.16 mm Pitch D3088-97
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Colour | Blue |
| Orientation | Straight |
| Current | 10A |
| Length | 15.1mm |
| Model | D3088-97 |
| Depth | 3.2mm |
| Width | 12mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- The connector has a blue polybutylene terephthalate housing rated UL94V-0 for flame retardance.
- It supports a current rating of 10A suitable for PCB connectivity applications.
- Gold-plated brass contacts ensure high reliability and low resistance.
- The connector features a straight orientation and 1 row configuration.

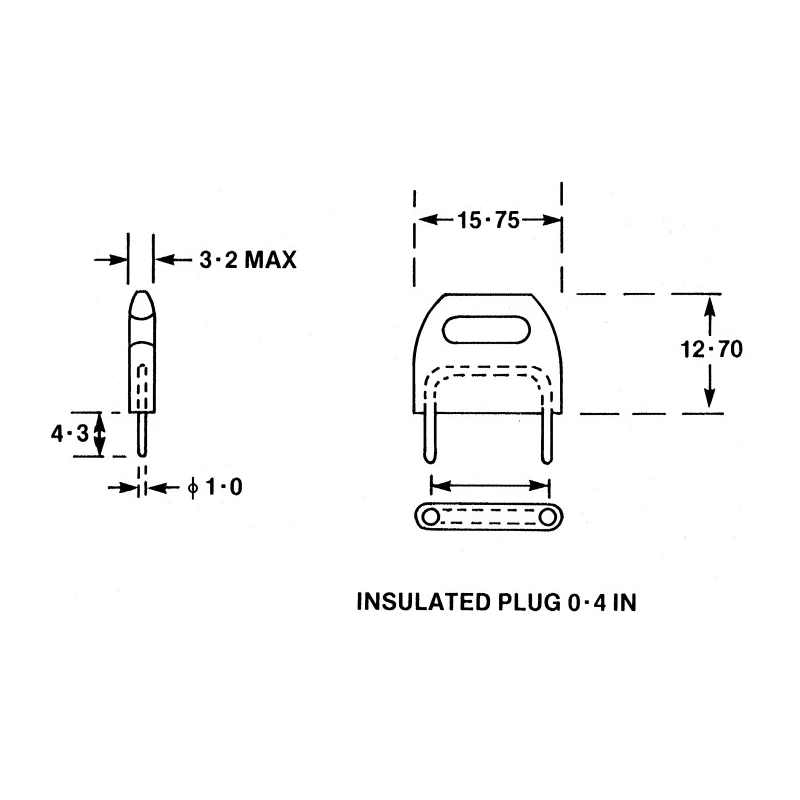

- Its length is 15.1 mm with a width of 12 mm and depth of 3.2 mm for compact footprint.
- It is part of the D308 series designed for easy insertion in PCB sockets.
- Ideal for hardware programming and jumper applications where link plugs are required.
- The insulated design prevents direct soldering but works well with PCB sockets.
Product Description
HARWIN D3088-97 shorting link plug is a closed top male connector with high-performance gold-plated brass contacts and a durable blue polybutylene terephthalate housing.
Designed to meet the requirements of PCB interconnections, this shorting link supports 2 contacts arranged in a single row with a pitch of 10.16 mm, enabling reliable electrical bridging and jumper functions.
The compact dimensions of 15.1 mm length, 12 mm width, and 3.2 mm depth make it suitable for high-density PCB layouts where space efficiency is critical. With a current rating of 10A, it is suitable for a wide range of electronic applications including hardware programming and circuit configuration via PCB sockets.
The connector's straight orientation and closed top design offer mechanical protection and ease of handling during installation. HARWIN's D308 series shorting plugs are well-regarded for their quality and durability in industrial and electronics manufacturing environments.
The blue PBT housing is UL94V-0 rated for flame retardance. Gold plating on brass contacts ensures excellent conductivity and corrosion resistance. The product is engineered for use with PCB sockets in electronic components assembly.
The insulated plug design prevents direct soldering to PCB, aiding reusability. Supports a robust 10A current rating for diverse circuit requirements. Compact dimensions enable high packing density on boards. Ideal for manufacturing, laboratory, and test environments where jumpers are frequently changed.
Maintains reliable mechanical and electrical connection thanks to precise pitch and contact alignment. This shorting link belongs to the electronics connectors category and is valuable for designers and engineers in PCB design and repair.
Explore a full range of HARWIN Connectors on EnvMart for quality components that meet industrial and commercial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 10A, making it suitable for various electronic applications.
The connector has a length of 15.1 mm, a width of 12 mm, and a depth of 3.2 mm, allowing for a compact footprint.
The housing is made from polybutylene terephthalate (PBT), which is rated UL94V-0 for flame retardance.
This model features 2 contacts arranged in a single row configuration.
It is ideal for hardware programming and jumper applications where link plugs are required.
The contacts in this model are arranged with a pitch of 10.16 mm.
The connector features a straight orientation, facilitating ease of handling during installation.
The contacts are made of brass and are gold-plated to ensure high reliability and low resistance.
No, the insulated design of this connector prevents direct soldering, but it works well with PCB sockets.
This connector is part of the D308 series, which is designed for easy insertion in PCB sockets.
The connector is manufactured in India.
This model has a male connector gender, which is suitable for male connections in electronic assemblies.
