Recom RP15 AW DC/DC Converter 5V 3A 36V Input 9V Input 15W Through Hole 6-Pin 85°C Max Temperature RP15

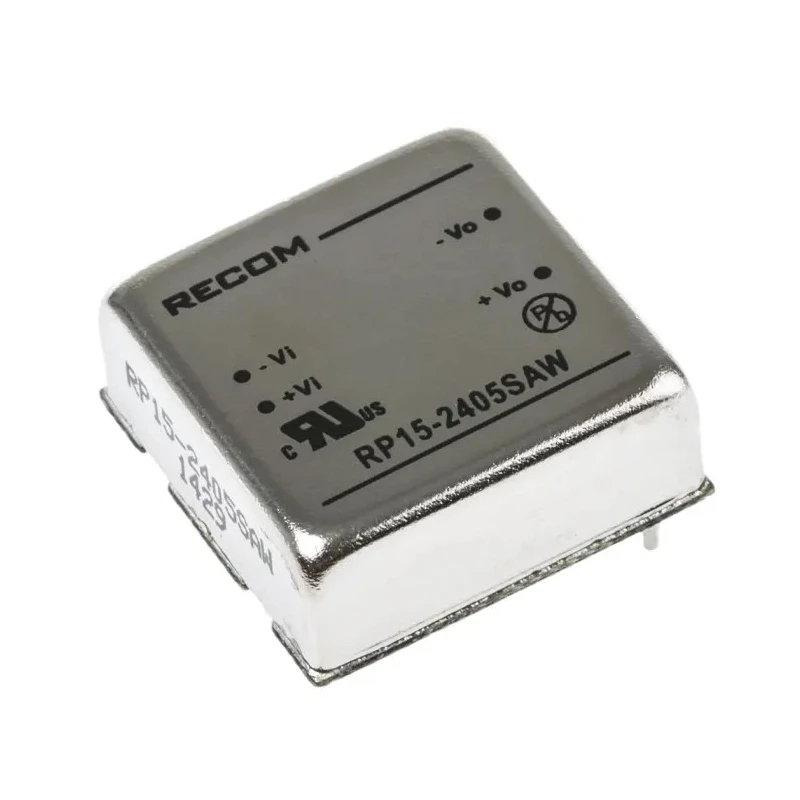

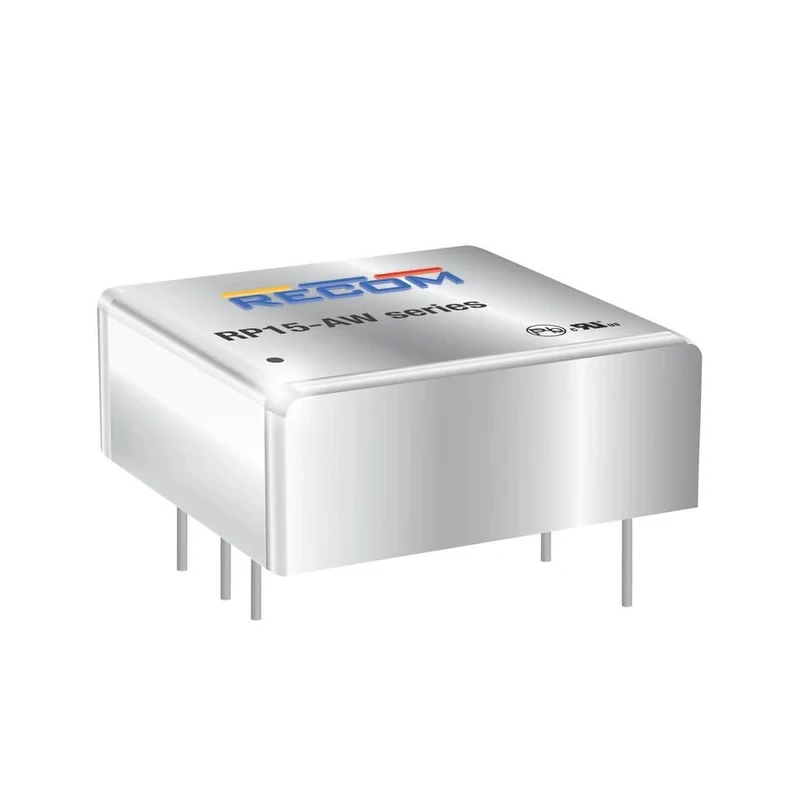

Recom RP15 AW DC/DC Converter RP15-2405SAW is a highly reliable power module designed for efficient voltage regulation in electronic circuit applications. It accepts a DC input voltage range from 9V up to 36V and converts it to a stable 5V output with a continuous current of 3A, making it suitable for low-voltage power requirements.

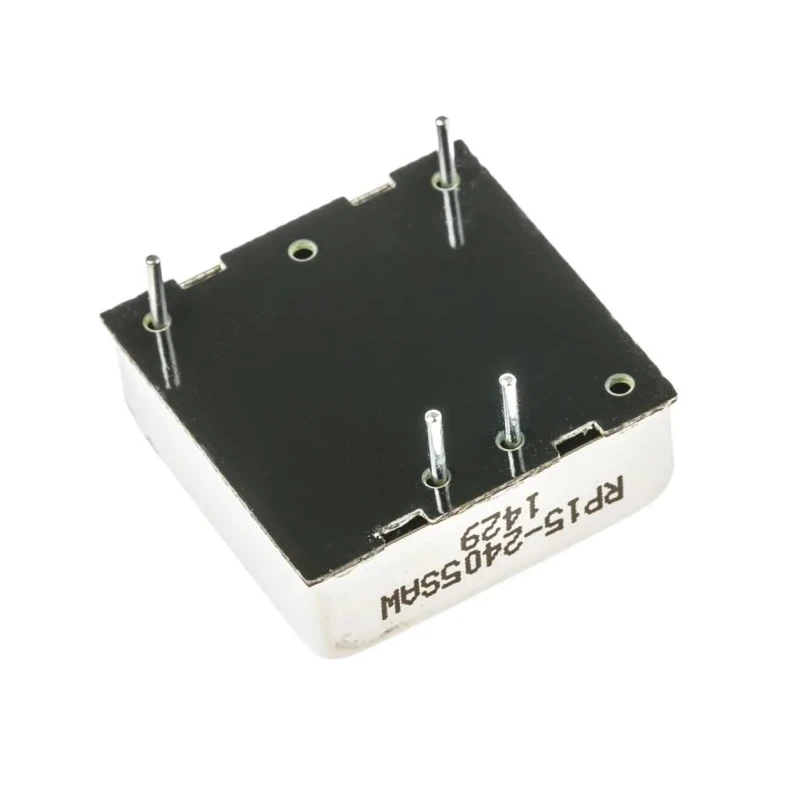

This 6-pin converter features a through-hole mount design that simplifies installation on printed circuit boards, providing secure mechanical connection and enhanced heat dissipation. The converter’s nickel-plated copper enclosure resists corrosion and contributes to its durability in demanding environments.

Engineered for industrial use, this converter offers robust protection with combined overvoltage, overcurrent, and short-circuit safeguards to prevent damage to both the converter and the connected load. It features a rapid startup time of approximately 30ms, ensuring quick power availability to circuits.

With efficiency up to 88%, the module minimizes energy losses and heat generation, improving overall system reliability. The output voltage accuracy of ±1% maintains stable and precise voltage levels critical for sensitive components. The ripple and noise performance is capped at 75mV peak-to-peak, ensuring smooth DC output suitable for high-quality signal processing.

Operating over a wide temperature range from -40°C to +85°C, this converter is ideal for usage in industrial processes, telecommunications networks, medical equipment, audiovisual systems, and packaging machinery. The 1.6kV isolation voltage enhances safety by preventing current leakage and interference between input and output circuits.

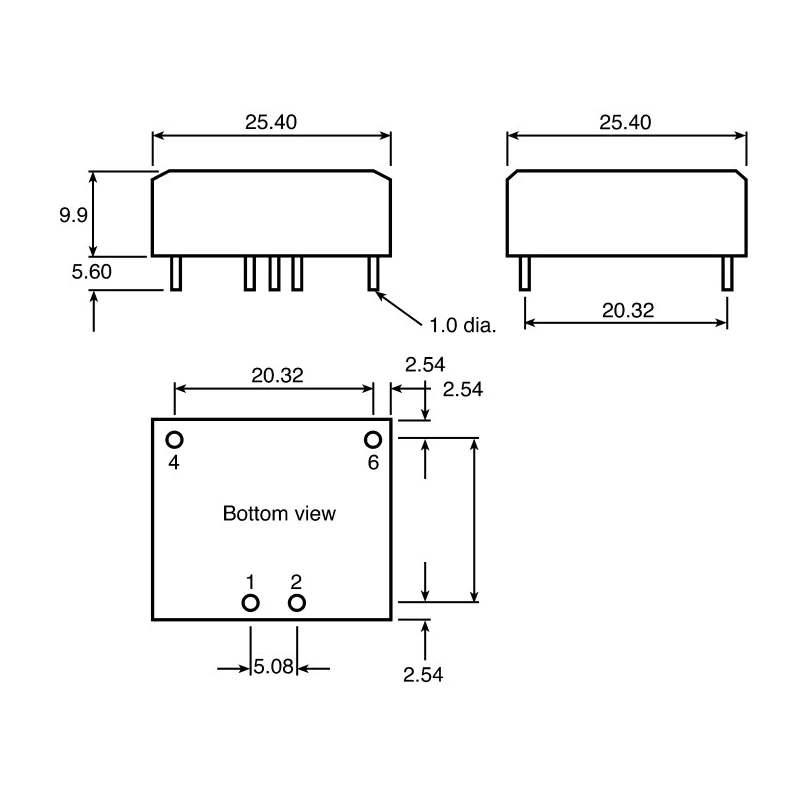

Technical dimensions include a compact form factor with length and width each measuring 25.4mm, and a depth of 9.9mm. Weighing approximately 15g, it is well-suited for space-constrained designs.

Compact through-hole mounting design for easy PCB integration. Operates with input voltage range from 9V to 36V DC. Provides stable 5V DC output at 3A current capacity. Maximum output power rating of 15W with 88% efficiency.

Protects against overvoltage, overcurrent, and short circuits. Nickel-plated copper case offers corrosion resistance and durability. Wide operating temperature range from -40°C to +85°C. Low ripple and noise at 75mV peak-to-peak ensures reliable performance.

Designed for industrial, medical, telecommunications, and audiovisual applications. High isolation voltage of 1.6kV enhances electrical safety.

Choose this Recom RP15 converter to ensure reliable power delivery in your electronic systems, compliant with RoHS standards, and made in Taiwan, Province Of China. Ideal for engineering, manufacturing, and maintenance professionals seeking durable and efficient DC/DC power solutions.
