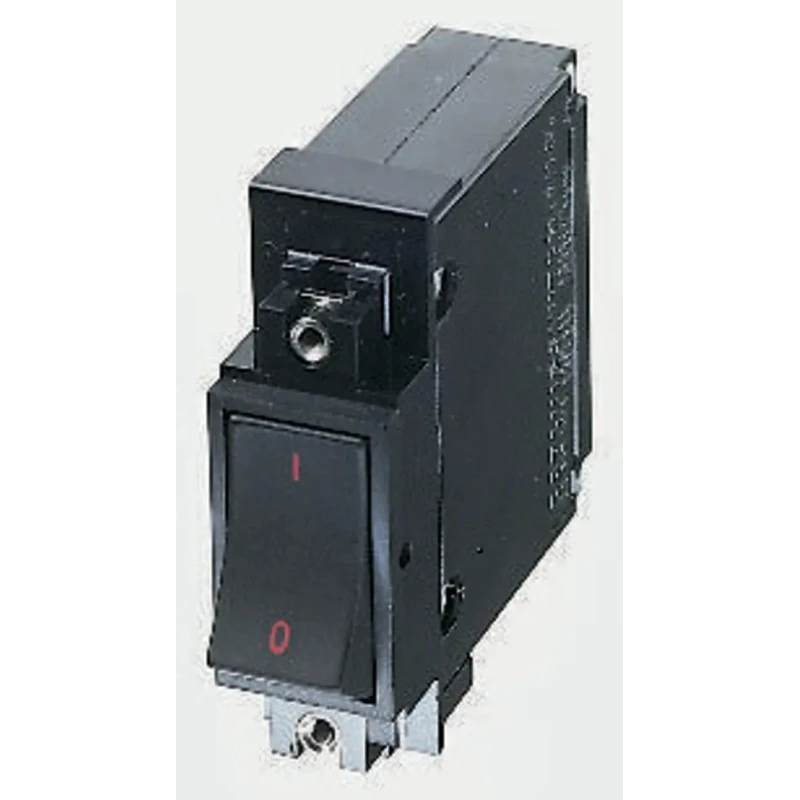

Carlingswitch SPDT Rocker Switch Panel 20A 250V AC 28V DC Aluminium Housing Panel Mount AF1X0038051F2D

The Carlingswitch AF1X0038051F2D SPDT Rocker Switch Panel is engineered for industrial and electrical control applications requiring dependable single pole double throw switching. Its aluminium housing provides enhanced mechanical strength and environmental protection, making it suitable for demanding environments.

Capable of handling a switch contact current of 20A, this switch supports AC voltages up to 250V and DC voltages up to 28V, thus facilitating versatile usage across electrical and automation systems.

The panel mount design featuring push-in terminals ensures fast and secure installation. Its IP66 rating guarantees dust-tight construction and protection against heavy water jets, enhancing resilience in challenging industrial settings.

The switch functions reliably over a temperature range of -40°C to 85°C, accommodating extreme ambient conditions without compromising operational integrity. The actuator's black colour offers clear visual contrast for operator convenience.

This rocker switch complies with recognized international standards such as BS, CE, CSA, RoHS, UL, and VDE, ensuring safety, quality, and regulatory adherence. The switch incorporates hydraulic damping and thermal magnetic components to provide stable operation and protection against overcurrents.

Single pole double throw contact configuration for flexible control. Hydraulically damped mechanism enhances durability and reduces wear. Insulation resistance above 100 MΩ for electrical safety. Trip-free mechanism prevents manual override of protective functions.

Low contact resistance improves efficiency and reduces heat generation. Terminal connections utilize 1/4 inch push-on receptacles for secure mounting. Mounting hole size is 32 x 19 mm, with fixing holes 4 mm diameter on 42 mm centers for precise installation.

This Carlingswitch rocker switch panel is ideal for industrial automation, electrical distribution panels, HVAC systems, and other commercial or manufacturing applications where reliable switching and compliance with global standards is essential.
