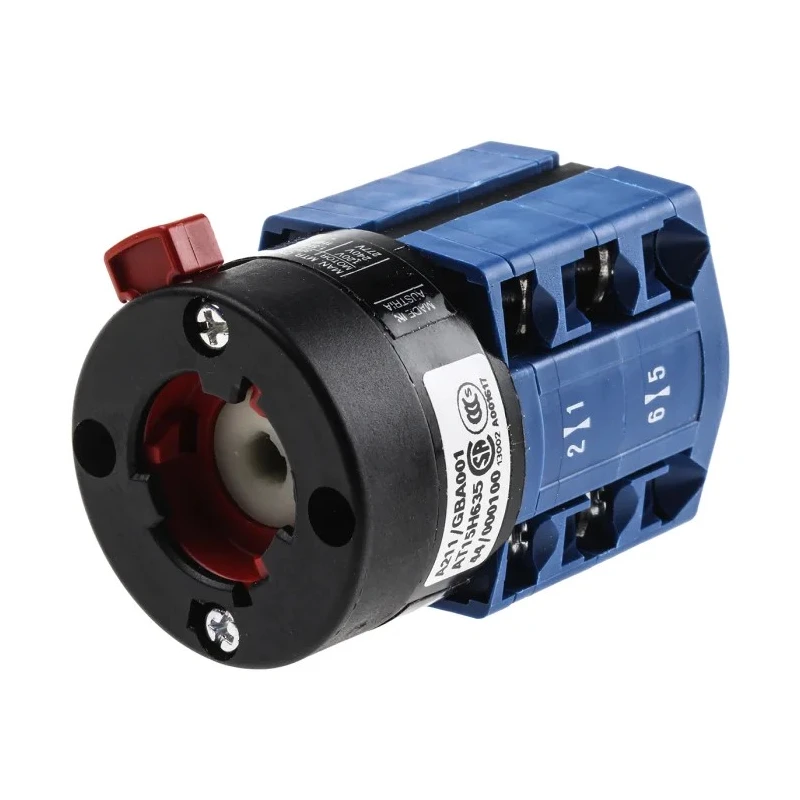

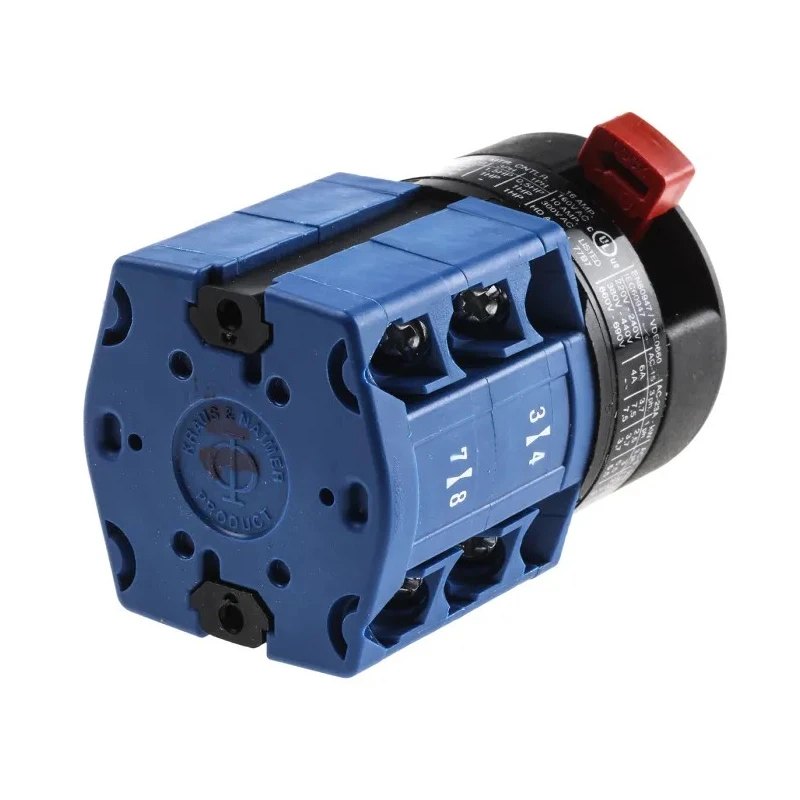

Kraus & Naimer 3 Position 60° Cam Switch, Panel Mount, 20A, IP40, Model CG8.A211/GBA001.*FT

Free Delivery in India | Lowest Global Shipping Charges

Kraus & Naimer 3 Position 60° Cam Switch, Panel Mount, 20A, IP40, Model CG8.A211/GBA001.*FT

Name: Kraus & Naimer 3 Position 60° Cam Switch, Panel Mount, 20A, IP40, Model CG8.A211/GBA001.*FT
Brand: Kraus & Naimer
SKU: 137314
Price: 33.02 USD
Availability: InStock



Category Cam Switch Brand Kraus & Naimer Condition New

Specifications

Country of Origin	India
Brand	Kraus & Naimer
Length	48mm
Model	CG8.A211/GBA001.*FT
IP Rating	IP40
Width	48mm
Mount Type	Panel
Series	CG
Maximum Operating Temperature	55°C
Number of Positions	3
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	2
Standards/Approvals	IEC 60947-3
Mechanical Life	1000000Operations
Contact Voltage	690V
Contact Current	20A
Angle of Throw	60 °

Key Features

The switch features 3 positions with a 60° angle of throw.
It has 2 poles and screw terminal type connections for reliable electrical contact.
The switch operates efficiently within a temperature range of -25°C to 55°C.
The switch dimensions are compact, measuring 48mm by 48mm for length and width respectively.
The device complies with IEC 60947-3 standards and offers a mechanical life of 1,000,000 operations.
The contact voltage rating is 690V, suitable for industrial applications.
This cam switch does not have hazardous area certification and is designed for standard environments.
Each switch body is supplied with a legend plate, while the switch operator is ordered separately.

Product Description

The Kraus & Naimer CG8.A211/GBA001.*FT is a high-quality 3 Position Cam Switch designed for panel mounting in electrical and automation systems. Rated for 20 amps and with an IP40 protection rating, this switch ensures reliable performance in industrial, commercial, and automation environments.

Featuring 3 distinct positions and a 60° angle of throw, this switch provides precise control for various electrical circuits. It has 2 poles and uses screw terminals for secure connections, making installation straightforward and robust.

Engineered to operate between -25°C and 55°C, this cam switch withstands varying temperature conditions while maintaining performance. The compact size of 48mm length and 48mm width allows for easy integration into control panels without occupying excessive space.

The switch meets IEC 60947-3 standards, ensuring compliance with international safety and performance regulations. Additionally, it is rated for a contact voltage of 690V and has an impressive mechanical life expectancy of 1,000,000 operations, making it suitable for long-term use.

Please note that the switch body comes with a legend plate, however, the switch operator is typically ordered separately to suit specific application requirements. This flexibility allows customization based on the intended use.

The switch features 3 positions with 60° angle of throw. It has 2 poles and screw terminal type for reliable electrical contact. Compact dimensions of 48mm by 48mm enable space-saving installations. Operates reliably between -25°C and 55°C temperature range.

Meets IEC 60947-3 standards for safety and performance. Rated contact current is 20A with a contact voltage of 690V. Mechanical life of 1,000,000 operations ensures durability. Suitable for industrial, electrical, automation, and control panel applications.

This Kraus & Naimer cam switch is ideal for use in industrial automation, electrical control panels, manufacturing processes, and other commercial electrical applications. It provides precise and durable switching performance, contributing to system reliability and efficiency.
