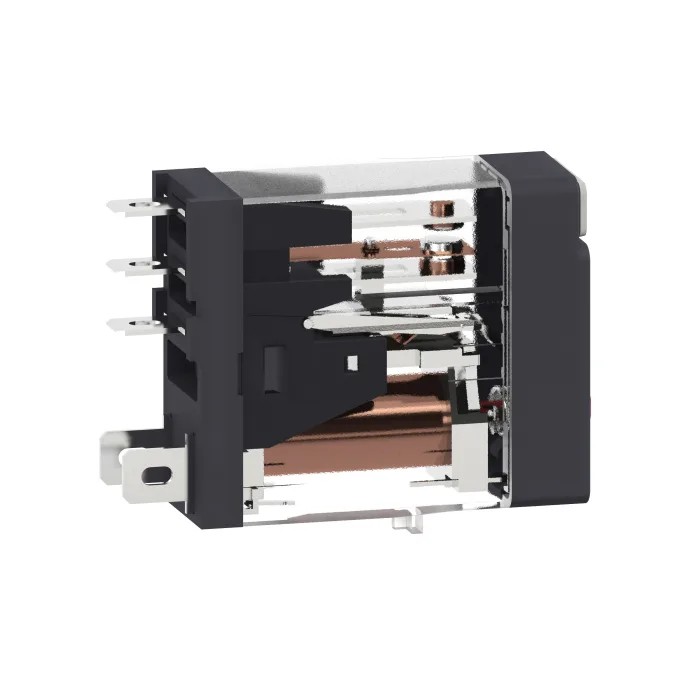

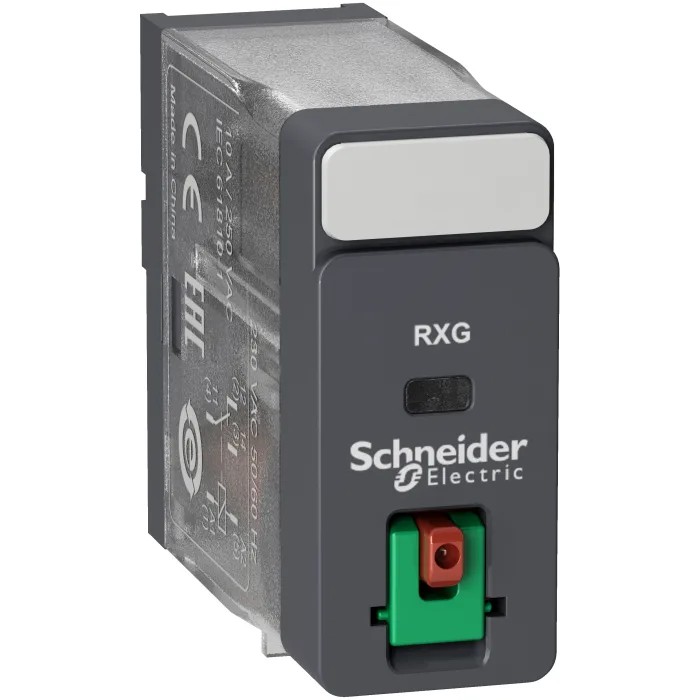

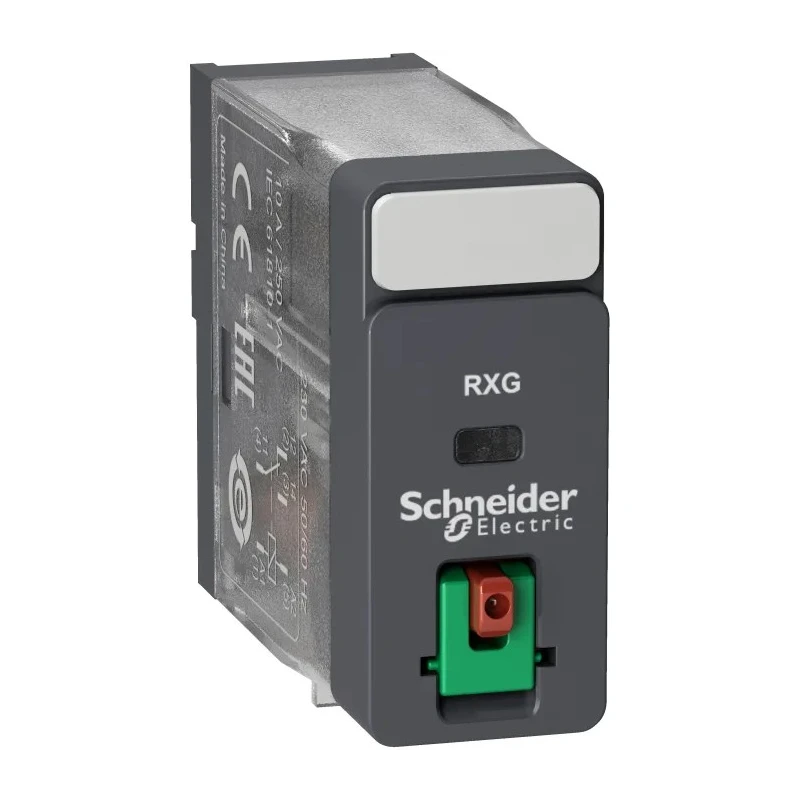

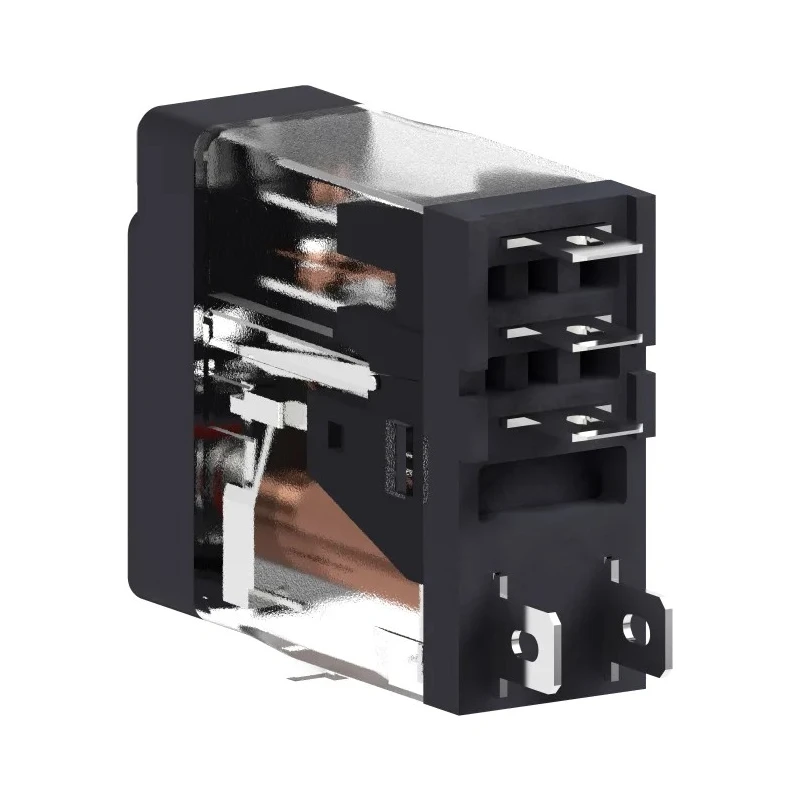

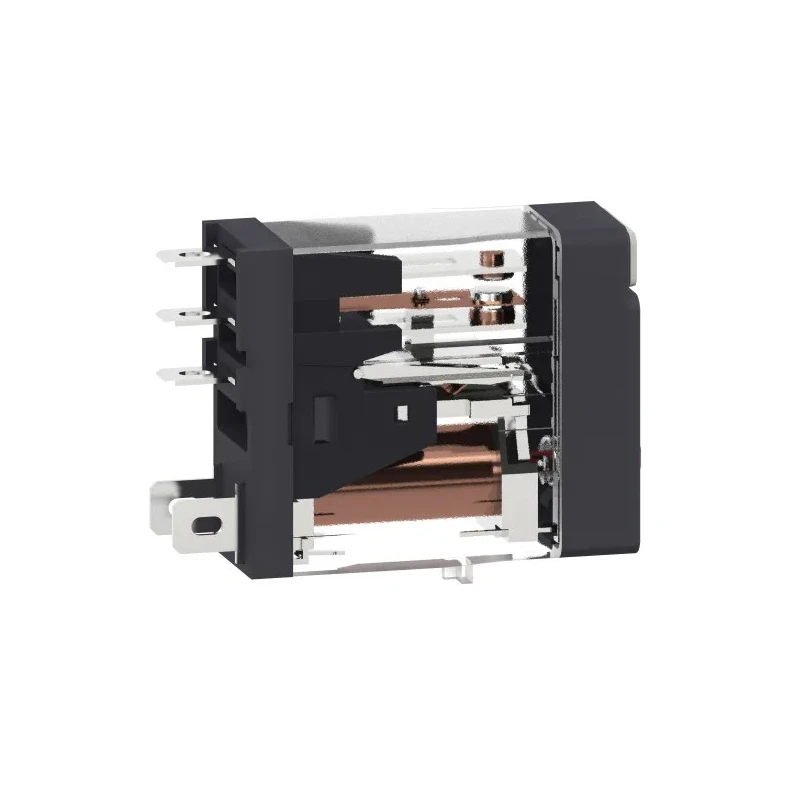

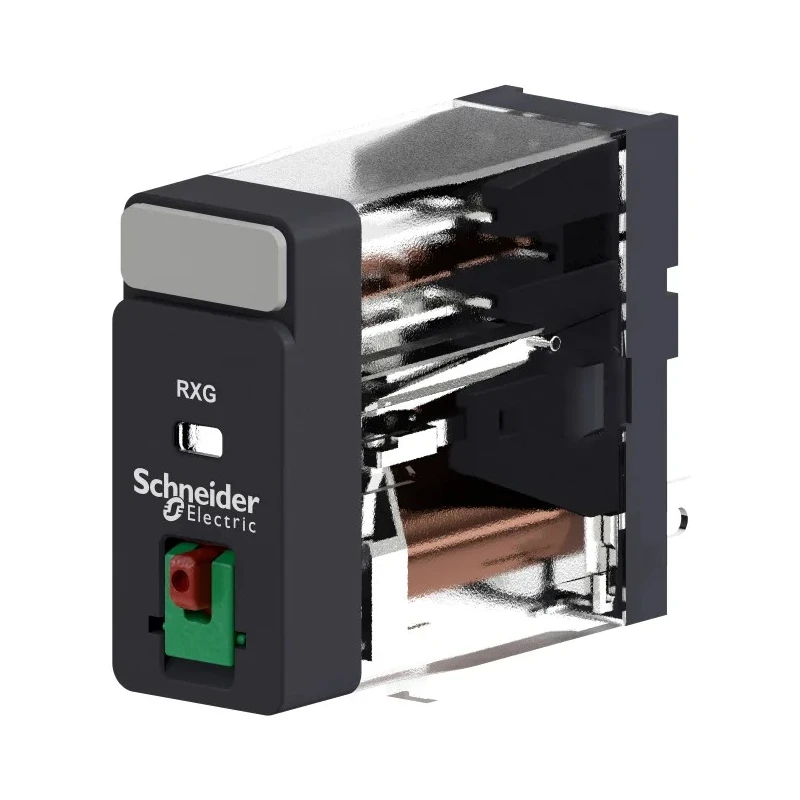

Schneider Electric Power Relay, 230V AC Coil, 10A Switching Current, SPDT RXG11P7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 30.6mm |
| Length | 13mm |
| Model | RXG11P7 |
| Width | 37.1mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 23.5kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 820mW |
| Better World Claim | Designed for Disassembly |
Key Features
- The relay operates with a coil voltage of 230V AC and a coil power of 820mW.
- It includes a single pole double throw (SPDT) contact configuration rated for 10A switching current.
- The device has a compact design with dimensions 37.1mm width, 30.6mm height, and 13mm length.
- It is built with silver alloy contact material and features a low contact resistance of 100mΩ.
- Operational temperature ranges from -40°C to 70°C for reliable performance in harsh environments.
- Rated switching AC voltage is 250V, and switching DC voltage is up to 30V DC.
- The relay comes with plug-in terminal type for easy installation and replacement.
- Complies with CSA and CE approvals ensuring quality and safety compliance.
Product Description
Schneider Electric RXG11P7 Power Relay is a highly reliable industrial relay featuring a 230V AC coil and 10A switching current with SPDT (single pole double throw) contact configuration. This Harmony RXG model is designed for efficient use in PLC interface applications and industrial automation systems, reducing enclosure sizes while enhancing machine reliability.
The compact dimensions (37.1mm width, 30.6mm height, 13mm length) allow flexible installation in tight spaces. Constructed with silver alloy contacts providing excellent conductivity and a low contact resistance of 100mΩ, the relay supports switching AC voltage up to 250V and DC voltage up to 30V.
Designed for robust industrial environments, it operates within a temperature range of -40°C to 70°C. The relay coil consumes 820mW, with coil resistance at 23.5kΩ, ensuring energy-efficient operation. The plug-in terminal type offers easy wiring and maintenance, complemented by features such as a lockable test button and compatibility with DIN rail and panel mounting sockets.
The RXG11P7 relay complies with international CSA and CE standards, making it suitable for a diverse range of industrial, electrical, automation, and HVAC applications. Its design supports disassembly promoting sustainability and maintenance efficiency.
The relay operates with a coil voltage of 230V AC and a coil power of 820mW. It includes a single pole double throw (SPDT) contact configuration rated for 10A switching current. The device has a compact design with dimensions 37.1mm width, 30.6mm height, and 13mm length.
It is built with silver alloy contact material and features a low contact resistance of 100mΩ. Operational temperature ranges from -40°C to 70°C for reliable performance in harsh environments. Rated switching AC voltage is 250V, and switching DC voltage is up to 30V DC.
The relay comes with plug-in terminal type for easy installation and replacement. Complies with CSA and CE approvals ensuring quality and safety compliance.
This product is a vital component for electrical control panels, automation systems, and industrial machinery requiring reliable switching capabilities. Its compact size benefits machine builders optimizing space while maintaining high current capabilities.
Explore EnvMart's wide range of Schneider Electric relays for quality and trusted industrial electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 230V AC.
It can handle a maximum switching current of 10A.
The dimensions are 37.1mm in width, 30.6mm in height, and 13mm in length.
This relay features a single pole double throw (SPDT) contact configuration.
The rated switching AC voltage is 250V.
It can switch DC voltage up to 30V.
The contact material is silver alloy, which provides excellent conductivity.
It operates within a temperature range of -40°C to 70°C.
It comes with a plug-in terminal type for easy installation and replacement.
The coil power consumption is 820mW.
It complies with CSA and CE standards, ensuring quality and safety compliance.
The contact resistance is 100mΩ, which helps in reducing power loss.
