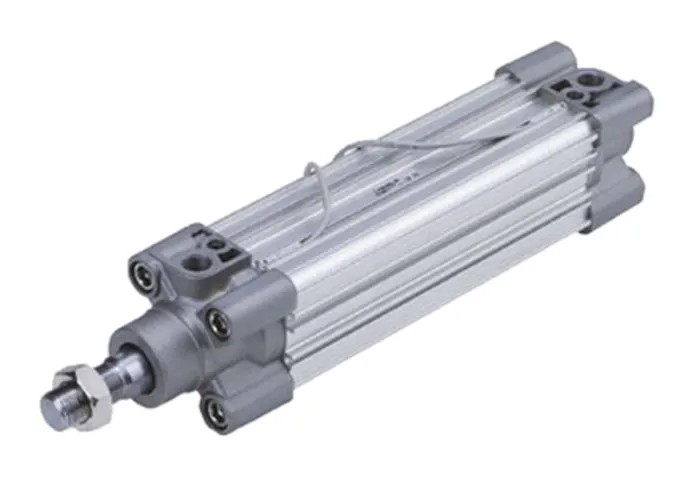

SMC 25 mm Pneumatic Piston Rod Cylinder Aluminium Alloy Body Double Acting Basic Mount CP96

Free Delivery in India | Lowest Global Shipping Charges

SMC 25 mm Pneumatic Piston Rod Cylinder Aluminium Alloy Body Double Acting Basic Mount CP96



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Length	219mm
Model	CP96
Mount Type	Basic
Series	CP96
Maximum Operating Temperature	70°C
Stroke Length	25mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	4414
Cushioning Type	Air Cushion
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M16 x 1.5

Key Features

Equipped with an aluminium alloy body for lightweight and easy installation.
Basic mounting configuration enables straightforward mechanical integration.
Uses an M16 x 1.5 male metric piston rod thread for secure mechanical coupling.
Supports air cushioning and bumper cushions to reduce impact and increase service life.
Rated for operating temperatures up to 70°C to withstand elevated temperature conditions.
Designed for piston speeds up to 1000 mm/s suitable for high cycle applications.
Complies with ISO 15552 cylinder dimensional standards for interchangeability.
Ideal for pick-and-place modules, valve actuation, packaging stroke control, and automated tool changes.

Product Description

SMC CP96 Pneumatic Piston Rod Cylinder features a 25 mm stroke length with a robust aluminium alloy body, designed for double acting operation. The cylinder is engineered for industrial automation systems requiring precision linear actuation in a compact form factor.

Its double acting mechanism delivers bidirectional force enabling controlled push and pull motions. The basic mount type ensures compatibility with common fixture brackets and manifold attachments for seamless integration into existing systems.

The piston rod is a single-ended male thread with metric sizing M16 x 1.5, allowing for direct attachment of clevises, rod eyes, or custom fittings meeting this standard. Air and bumper cushions are incorporated to absorb kinetic energy during end-of-stroke, reducing mechanical shock and enhancing repeatability in cyclic operations.

Designed to operate at a maximum temperature of 70°C, it supports piston speeds as high as 1000 mm/s for demanding high-cycle use. The unit meets ISO 15552 dimensional standards, ensuring interchangeability with compatible pneumatic components globally.

Typical industrial applications include pick-and-place automation modules, valve actuation panels in process control, end-of-line packaging stroke control, tool change mechanisms on automated machines, and position sensing in electronic test rigs.

Lightweight aluminium alloy body for ease of installation and durability. Reliable double acting pneumatic control for precise linear motion. Basic mount suitable for various industrial mounting brackets. Air and bumper cushions to extend service intervals by minimizing impact.

Piston rod thread M16 x 1.5 permits secure mechanical interfacing. Rated operational environment up to 70°C for elevated temperature tolerance. High piston speed capability ideal for high-throughput automation. Conforms to ISO 15552 for dimensional standardization.

Applicable across multiple industrial automation and process control scenarios.

This SMC CP96 Pneumatic Piston Rod Cylinder is an essential component for mechanisms requiring precise linear actuation and durability under industrial environmental conditions and cycles. Perfectly suited for integration into pneumatic automation systems in manufacturing, packaging, and testing automation sectors.
