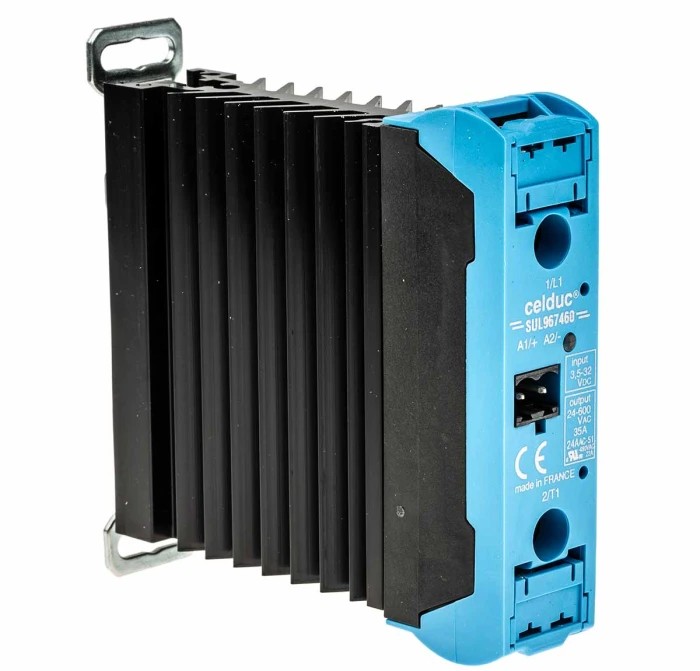

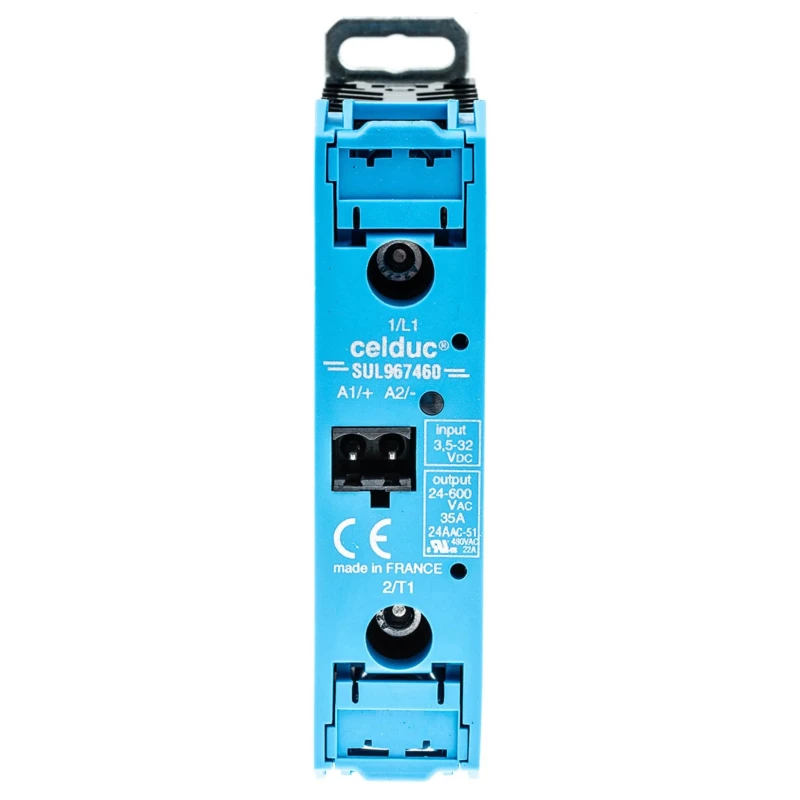

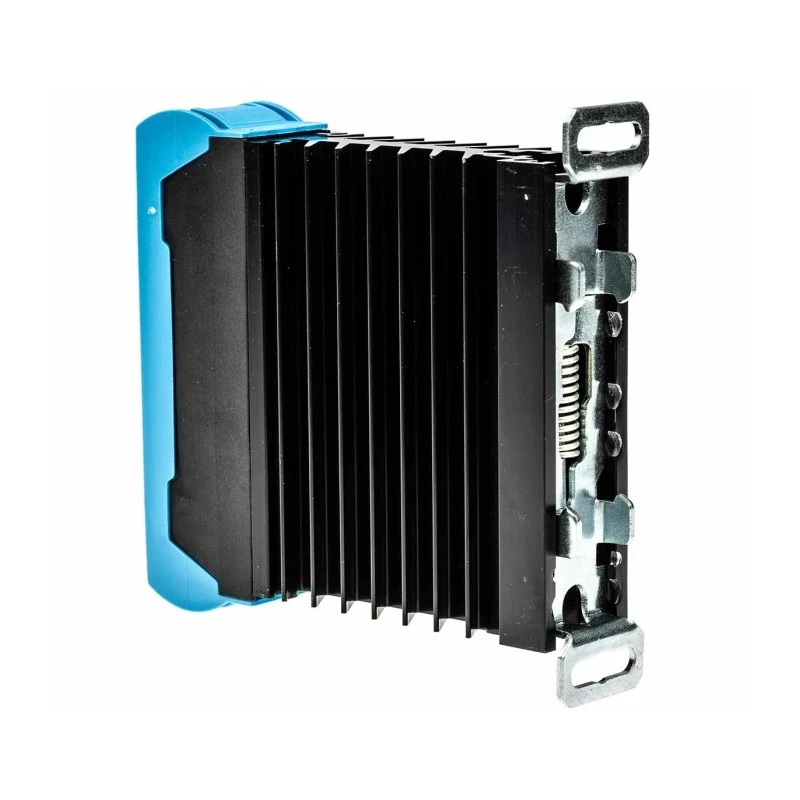

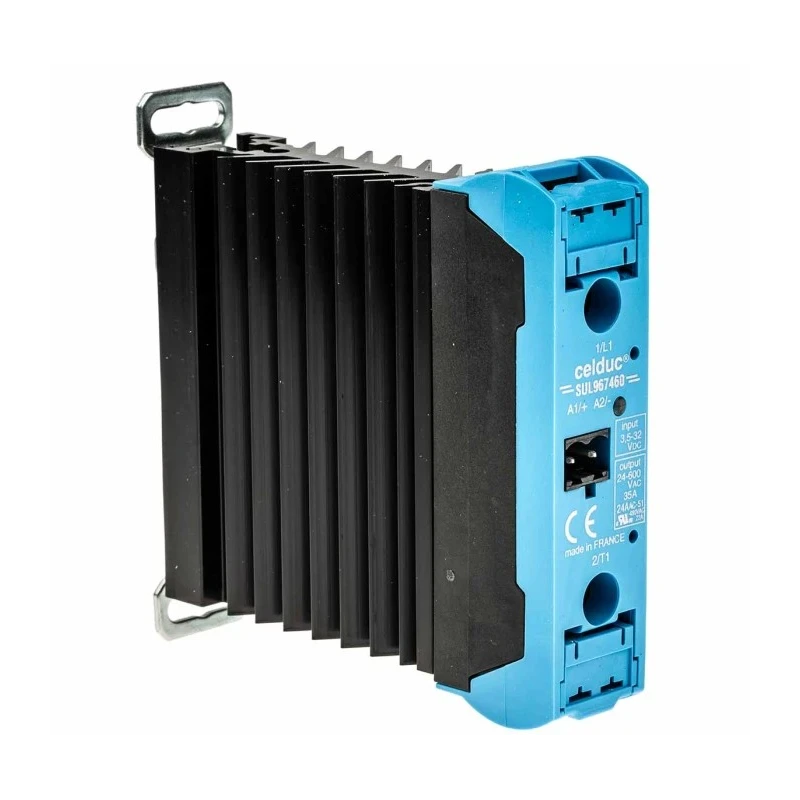

Celduc Solid State Relay with 35A Load Capacity, DIN Rail Mount, 600 V AC Load, 32V DC Control SUL9-SUM9

Free Delivery in India | Lowest Global Shipping Charges

Celduc Solid State Relay with 35A Load Capacity, DIN Rail Mount, 600 V AC Load, 32V DC Control SUL9-SUM9

Name: Celduc Solid State Relay with 35A Load Capacity, DIN Rail Mount, 600 V AC Load, 32V DC Control SUL9-SUM9
Brand: Celduc
SKU: 136639
Price: 122.66 USD
Availability: InStock



Category Solid State Relay Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Height	80mm
Length	22.5mm
Model	SUL9-SUM9
IP Rating	IP20
Width	35mm
Mount Type	DIN Rail
Output type	Thyristor
Series	SUL9-SUM9
Maximum Operating Temperature	100°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	35A
Standards/Approvals	CE, EAC
Maximum Load Voltage	600V ac
Minimum Load Voltage	24V ac
Minimum Control Voltage	3.5V dc
Maximum Control Voltage	32V dc
Off State Leakage Current	1mA

Key Features

Operates with maximum load voltage of 600 V AC for robust performance.
Features a 32 V DC control voltage range for precise control.
Includes a screw terminal type for secure electrical connections.
Designed for zero cross switching to minimize electrical noise.
Supports a wide operating temperature range from -40°C to 100°C.
Compact dimensions of 80 mm height, 22.5 mm length, and 35 mm width for easy installation.
Equipped with IP20 rating ensuring protection against solid foreign objects.
Output type is thyristor for reliable switching in AC circuits.

Product Description

The Celduc SUL9-SUM9 Series Solid State Relay is a high-performance device designed for industrial and automation applications that require reliable switching of AC loads up to 35 Amps.

This DIN rail mountable relay features a robust thyristor output type that manages a maximum load voltage of 600 V AC and a control voltage up to 32 V DC, allowing precise and efficient control in electrical systems.

Its zero cross switching function minimizes electrical noise and extends the lifespan of connected equipment. The relay supports a wide operational temperature range from -40°C to 100°C, making it suitable for harsh industrial environments.

The relay incorporates screw terminals for secure and stable electrical connections, ensuring safety and ease of installation. The compact dimensions (80 mm height, 22.5 mm length, 35 mm width) facilitate integration into various electrical panels without occupying excessive space.

Operates with maximum load current of 35 Amps. Designed for maximum load voltage up to 600 V AC and minimum load voltage of 24 V AC. Control voltage ranges from 3.5 V DC minimum to 32 V DC maximum. IP20 rated enclosure for protection against solid particles.

Off state leakage current is 1 mA, enhancing overall energy efficiency. This relay is CE and EAC certified and manufactured in France, meeting stringent quality and performance standards.

The Celduc SUL9-SUM9 relay is ideal for industrial automation, electrical panel control, HVAC systems, manufacturing equipment, and process control applications requiring durable and efficient switching solutions.
