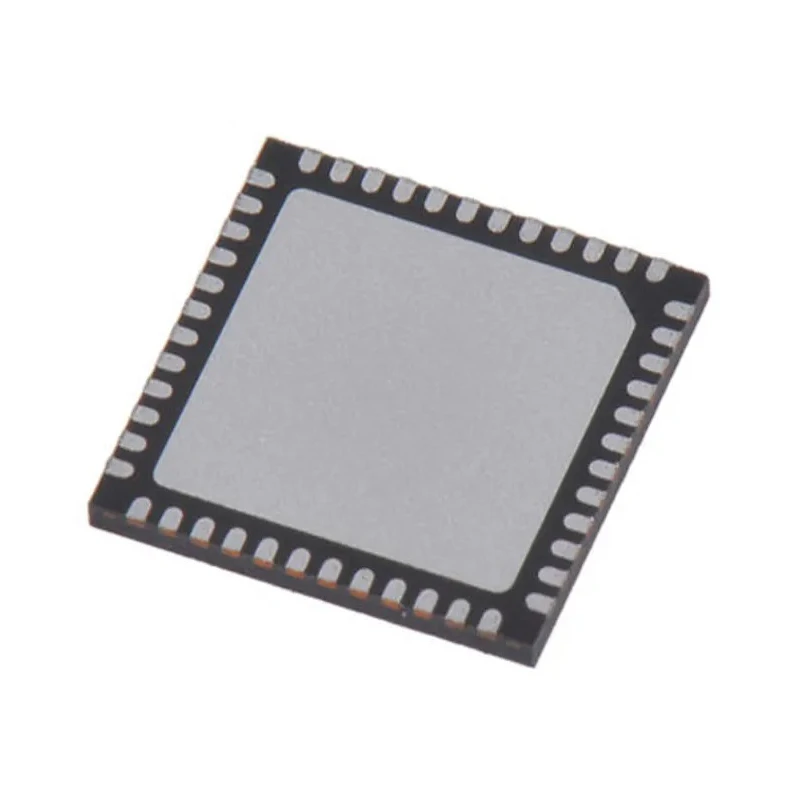

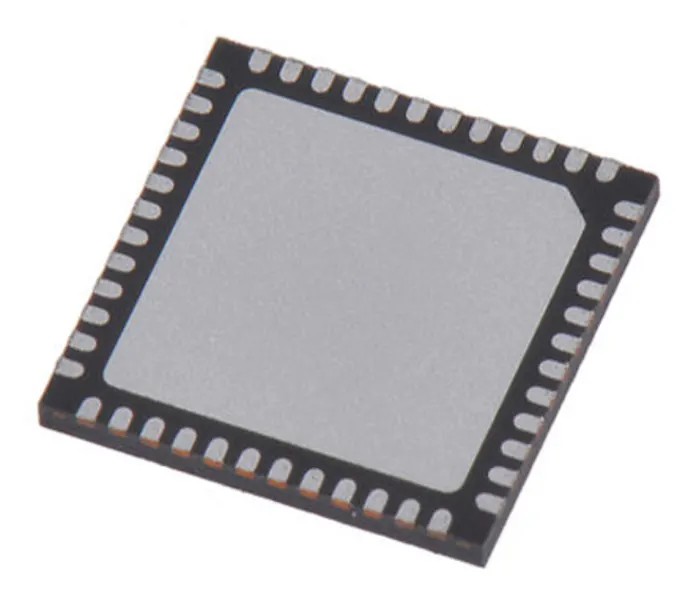

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex M4 Microcontroller 100MHz 128kB FLASH 32kB RAM 48-Pin STM32F410CBU6
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 600μm |
| Length | 7.1mm |
| Model | STM32F410CBU6 |
| Width | 7.1mm |
| Mount Type | Surface |
| Series | STM32F4 |
| Maximum Operating Temperature | 85°C |
| Package Type | UFQFPN |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 32kB |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 606mW |
| Minimum Supply Voltage | 1.7V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 100MHz |
| Number of Programmable I/Os | 50 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 12 Bit |
Key Features
- Operates at a maximum clock frequency of 100 MHz delivering up to 125 DMIPS and 339 CoreMark performance.
- Features 128 kB flash memory and 32 kB RAM for efficient code and data storage.
- Equipped with an ARM Cortex M4 core with Floating Point Unit (FPU) and DSP instructions.
- Includes 10 ADC channels with 12-bit resolution and 1 x 12-bit DAC for analog interfacing.
- Provides 4 timers and up to 50 programmable I/Os for versatile peripheral control.
- Supports USB 2.0 OTG FS and multiple communication interfaces including USART, SPI, and I2C.
- Compact 48-pin UFQFPN package with dimensions 7.1 mm x 7.1 mm and height of 600 µm.
- Operates within supply voltages between 1.7 V and 3.6 V for flexible power management.
Product Description
STMicroelectronics STM32F410CBU6 is a 32-bit ARM Cortex M4 microcontroller from the STM32F4 series, designed for applications requiring a balance of performance and power efficiency. Operating at 100 MHz, it delivers high computational power with 125 DMIPS and 339 CoreMark scores, making it suitable for demanding embedded systems across industrial, commercial, and consumer sectors.
This microcontroller integrates 128 kB of FLASH memory and 32 kB of RAM, supporting efficient code execution and data handling. The ARM Cortex M4 core includes a Floating Point Unit and DSP instructions, enhancing signal processing and control tasks.
It features 10 12-bit ADC channels capable of sampling up to 2.4 Msps and a 12-bit DAC, facilitating accurate analog input/output operations. Additionally, it comprises 4 timers and 50 programmable input/output pins, enabling versatile control of peripherals and external components.
The STM32F410CBU6 supports multiple communication interfaces such as USB 2.0 OTG FS, USART, SPI, I2C, and I2S, which are essential for connectivity in embedded designs. The device is packaged in a compact 48-pin UFQFPN form factor with a 7.1 mm by 7.1 mm footprint and 600 µm height, designed for surface mount technology.
Power supply voltage ranges from 1.7 V minimum to 3.6 V maximum, offering flexibility in embedded power solutions. It is rated for industrial temperature ranges of -40°C to 85°C, ensuring reliable performance in harsh environments.
With a maximum power dissipation of 606 mW, it supports efficient thermal management. The device does not have specific automotive standards certification but is suitable for advanced embedded applications in industrial and instrumentation domains.
Operates at 100 MHz with ARM Cortex M4 core and FPU. 128 kB FLASH memory and 32 kB RAM capacity. 10 x 12-bit ADC channels and 1 x 12-bit DAC integrated. Up to 50 programmable I/Os and 4 timers for peripheral control. Supports USB 2.0 OTG FS and multiple serial communication interfaces.
Compact 48-pin UFQFPN package (7.1mm x 7.1mm x 600µm). Wide operating voltage range: 1.7 V to 3.6 V. Industrial operating temperature: -40°C to 85°C. Manufactured in China ensuring quality product standards.
This microcontroller is ideal for numerous electronic applications including industrial automation, consumer electronics, motor control, HVAC systems, and embedded signal processing. STMicroelectronics provides comprehensive technical documentation and design resources to facilitate easy integration.
Explore the STM32F4 series and other Microcontrollers on EnvMart for enhanced embedded system solutions and reliable performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F410CBU6 operates at a maximum clock frequency of 100 MHz.
It features 128 kB of FLASH memory and 32 kB of RAM for efficient code and data storage.
This microcontroller supports USB 2.0 OTG FS, USART, SPI, I2C, and I2S communication interfaces.
The STM32F410CBU6 operates within an industrial temperature range of -40°C to 85°C.
It comes in a compact 48-pin UFQFPN package with dimensions of 7.1 mm x 7.1 mm and a height of 600 µm.
This model includes 10 ADC channels with a 12-bit resolution, capable of sampling up to 2.4 Msps.
It operates within a supply voltage range of 1.7 V to 3.6 V, allowing for flexible power management.
The maximum power dissipation for this microcontroller is 606 mW.
The STM32F410CBU6 supports up to 50 programmable I/Os for versatile peripheral control.
It includes 4 timers, which can be used for various timing and control applications.
This model is based on the ARM Cortex M4 core, which includes a Floating Point Unit and DSP instructions.
It is suitable for applications in industrial automation, consumer electronics, motor control, HVAC systems, and embedded signal processing.
