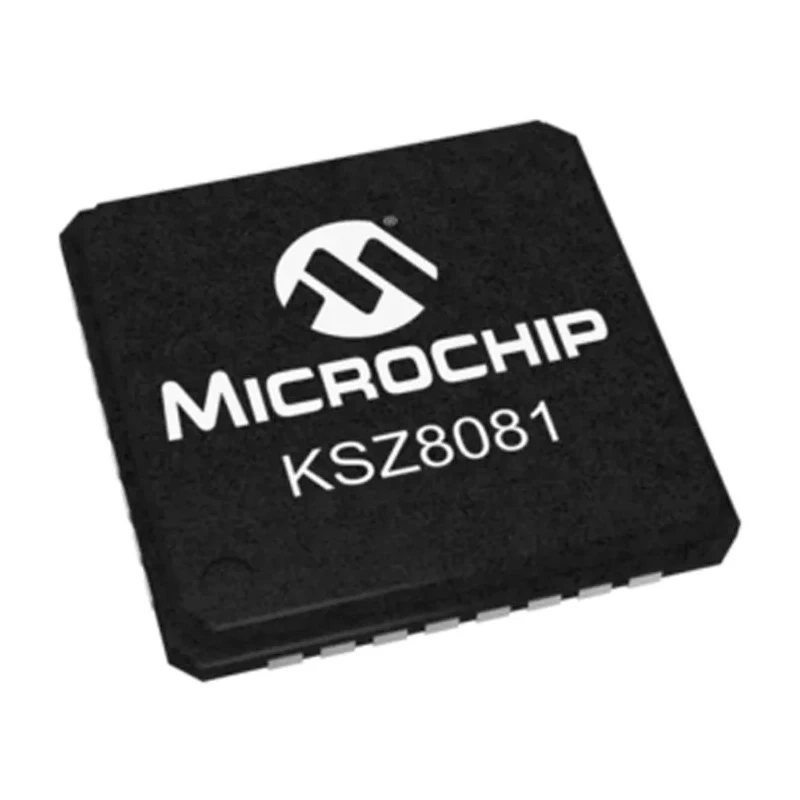

Microchip Ethernet Transceiver 3.3V 100 Mbps MII RMII, 32-Pin QFN Package KSZ8081RNBCA-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 800μm |
| Length | 5mm |
| Model | KSZ8081RNBCA-TR |
| Width | 5mm |
| Mount Type | Surface |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 70°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | 0°C |
| Communication Mode | 100Base-TX, 10Base-T |
| Interface Type | MII, RMII |
| Standards/Approvals | RoHS |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 47mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Remote (Analogue) Loopback, Local (Digital) Loopback |
| Standard Supported | IEEE 802.3 |
| Number of Transceivers | 1 |
| Micrel , 1-Channel Physical Layer Transceiver 32-Pin QFN, KSZ8081RNBCA TRBrand | Micrel |
Key Features
- Supports 100Base-TX and 10Base-T communication modes.
- Operates with a supply voltage of 3.3 volts for low power consumption.
- Includes both remote analogue and local digital loopback modes.
- Interfaces via MII and RMII ensuring flexible integration.
- Compact QFN package with 32 pins enables easy surface mounting.
- Operating temperature range from 0°C to 70°C suitable for standard industrial environments.
- Complies with IEEE 802.3 standards for reliable Ethernet communication.
- Supply current is 47 mA optimizing energy usage.
Product Description
Microchip KSZ8081RNBCA-TR is an advanced Ethernet Transceiver designed for industrial and commercial networking applications. Featuring a maximum data rate of 100 Mbps, it supports both 100Base-TX and 10Base-T communication modes to provide robust Ethernet connectivity.
This transceiver is housed in a compact 32-pin QFN package measuring 5 mm by 5 mm, with a height of 800 μm, facilitating efficient PCB space utilization. Operated at a supply voltage of 3.3 V, it maintains low supply current consumption of 47 mA, contributing to energy-efficient system designs.
Designed for surface mount installation, the device supports industry-standard MII and RMII interfaces, allowing seamless integration into diverse Ethernet hardware systems. It offers loopback testing capabilities including remote analogue and local digital loopback modes that aid in diagnostics and system verification.
Rated for operating temperatures from 0°C up to 70°C, this transceiver is suitable for general industrial environments. It complies with the IEEE 802.3 standard ensuring network interoperability and adheres to RoHS environmental standards promoting safer electronic manufacturing.
Typical applications include Ethernet communications equipment, embedded systems requiring reliable network interfaces, telecommunications, and industrial networking devices. Its small form factor is ideal for designs requiring compact and efficient Ethernet hardware.
Supports 100Base-TX and 10Base-T communication modes. Operates with a supply voltage of 3.3 volts for low power consumption. Includes both remote analogue and local digital loopback modes. Interfaces via MII and RMII ensuring flexible integration.
Compact QFN package with 32 pins enables easy surface mounting. Operating temperature range from 0°C to 70°C suitable for standard industrial environments. Complies with IEEE 802.3 standards for reliable Ethernet communication.
Supply current is 47 mA optimizing energy usage. Package dimensions 5 mm x 5 mm with a height of 800 μm ensure a small PCB footprint. RoHS compliant, supporting environmentally conscious manufacturing. Explore the extensive range of semiconductor and interface ICs at EnvMart to find compatible industrial-grade networking components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this Ethernet transceiver is 100 Mbps, supporting both 100Base-TX and 10Base-T communication modes.
The QFN package of this model measures 5 mm x 5 mm with a height of 800 μm, allowing for efficient PCB space utilization.
It operates with a supply voltage of 3.3 V, which contributes to its low power consumption.
This model supports MII and RMII interfaces, ensuring flexible integration into various Ethernet hardware systems.
The supply current for this transceiver is 47 mA, optimizing energy usage during operation.
The operating temperature range is from 0°C to 70°C, making it suitable for standard industrial environments.
It includes both remote analogue and local digital loopback modes for diagnostics and system verification.
The KSZ8081RNBCA-TR complies with IEEE 802.3 standards, ensuring reliable Ethernet communication.
This transceiver has 1 port, designed for single-channel applications.
This unit is designed for surface mounting, facilitating easy installation on PCBs.
The country of origin for this Ethernet transceiver is India.
Typical applications include Ethernet communications equipment, embedded systems, telecommunications, and industrial networking devices.
