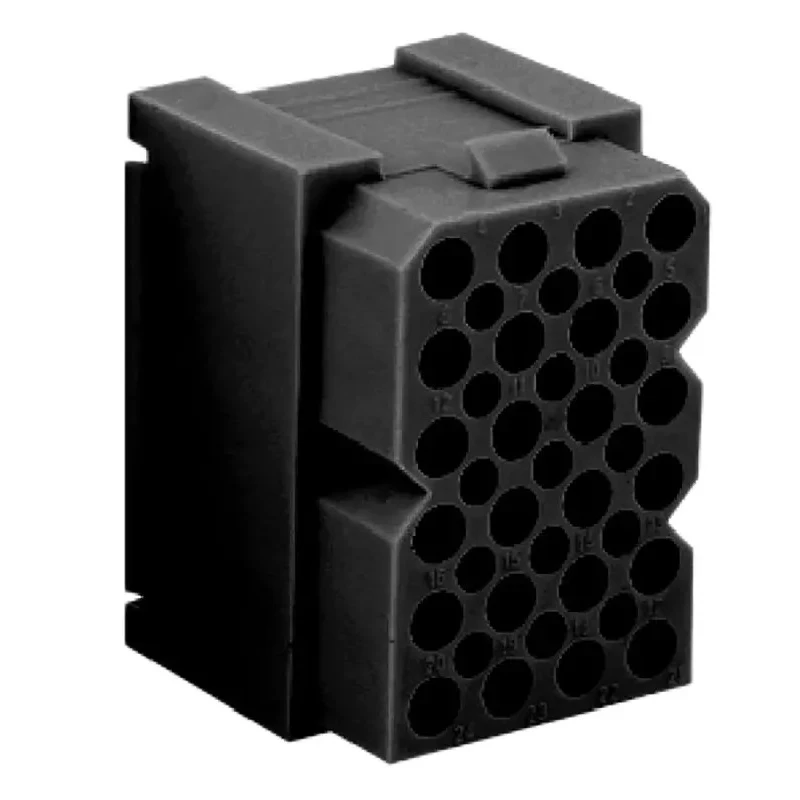

Souriau Sunbank by Eaton SMS Female Connector Housing 5.08 mm Pitch 24 Way 6 Row Straight SMS24R1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Length | 21.2mm |
| Model | SMS24R1 |
| Width | 25mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | SMS |
| Number of Rows | 6 |
| Pitch | 5.08mm |
| For Use With | Quick Mating PCB Connector |
| Number of Contacts | 24 |
| Connector Gender | Female |
Key Features
- Constructed from durable polyamide housing material for reliable insulation.
- Designed for panel mount applications enabling secure installation.
- Features positive housing retention latches and polarization keys to avoid mismating.
- Compatible with size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts sold separately.
- Compact design allows easy snap and lock into panel cut-outs without additional hardware.
- Measures 21.2 mm in length and 25 mm in width, suitable for tight PCB configurations.
- Series SMS ensures standardized quick mating wire-to-board connectivity.
- Female connector gender oriented straight for optimal panel assembly.
Product Description
Souriau Sunbank by Eaton SMS24R1 is a female connector housing specially engineered for panel mount quick mating PCB connectors. Featuring 24 contacts arranged in 6 rows and a standard pitch of 5.08 mm, this connector housing facilitates secure and efficient signal or power connections in various electronic and industrial applications.
The housing is made from robust polyamide, providing excellent mechanical strength and electrical insulation. Its compact, snap-lock design allows for quick assembly directly into panel cut-outs without the need for screws or extra hardware, enhancing installation speed and reducing assembly complexity.
Secure locking is ensured through positive housing retention latches along with polarization keys that prevent mismating, increasing reliability in complex electronic systems. The connector is designed to mate with size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts (sold separately), making it versatile for multiple wiring configurations.
With dimensions of 21.2 mm length and 25 mm width, the SMS24R1 fits tight PCB layouts, supporting efficient space utilization. Its straight orientation facilitates straightforward panel mounting and wiring accessibility.
This connector housing belongs to the SMS series known for quick mating and panel mount receptacle housings, widely used in industrial electronics, power connectors, and PCB connectivity solutions where durability and easy maintenance are essential.
Durable polyamide housing with excellent insulation. 24 contacts in 6 rows with 5.08 mm pitch. Quick mating panel mount design with snap-lock feature. Positive retention latches and polarization prevent mismating. Compatible with 1.6 mm diameter TRIM TRIO contacts (not included).
Compact size for space-efficient PCB mounting. Straight female connector suitable for panel installation. Ideal for industrial, electronic components, and power connector applications. Discover more high-quality Connector Housings and components at EnvMart to meet all your industrial and electronic connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMS24R1 connector housing features a pitch of 5.08 mm.
This model has 24 contacts arranged in 6 rows.
The housing is constructed from durable polyamide material, providing excellent insulation.
It measures 21.2 mm in length and 25 mm in width, suitable for tight PCB configurations.
Yes, this connector housing is designed for panel mount applications, allowing secure installation.
It is compatible with size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts, which are sold separately.
Yes, it includes positive housing retention latches and polarization keys to avoid mismating.
The connector gender of this model is female.
This connector housing belongs to the SMS series, known for quick mating and panel mount receptacle housings.
The orientation of this connector housing is straight, facilitating straightforward panel mounting.
The country of origin for this connector housing is India.
It is suitable for various electronic and industrial applications requiring quick mating PCB connectivity.
