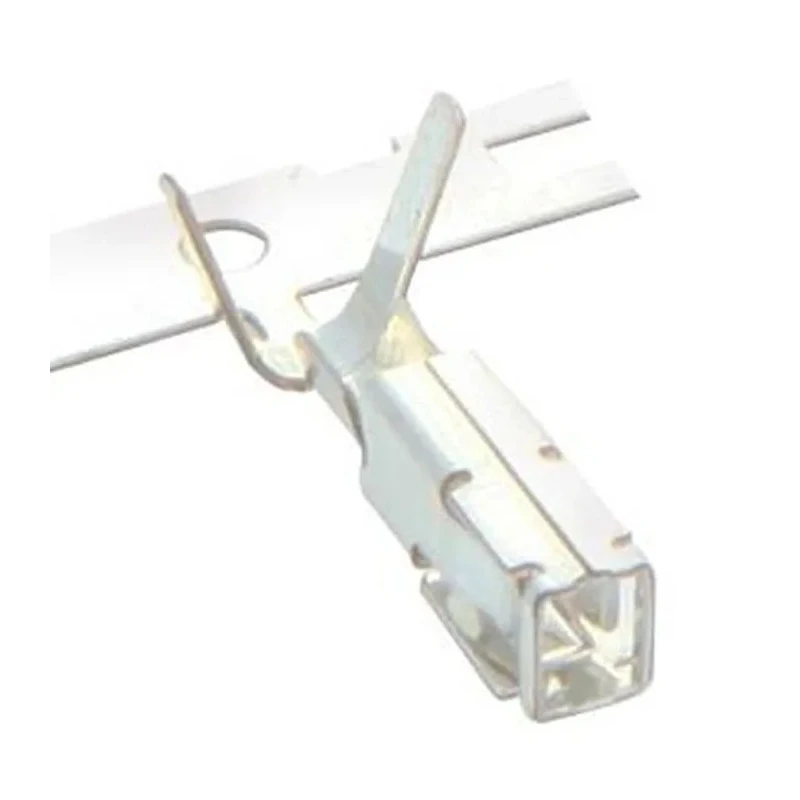

JST PSI Series Female Crimp Terminal 5A Current 26 AWG Min Crimp 22 AWG Max Tin Plated Copper Alloy SPSI-001T-M1.1

Free Delivery in India | Lowest Global Shipping Charges

JST PSI Series Female Crimp Terminal 5A Current 26 AWG Min Crimp 22 AWG Max Tin Plated Copper Alloy SPSI-001T-M1.1



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Current	5A
Model	SPSI-001T-M1.1
Gender	Female
Contact Material	Copper Alloy
Series	PSI
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	PSI Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from tin-plated copper alloy for reliable conductivity.
Suitable for crimp termination ensuring strong and secure wire connections.
Operates efficiently within a temperature range of -25°C to 85°C.
Designed specifically for use with the 4.00 mm PSI series connector system.
Offers a maximum contact resistance of 20 milliohms for low power loss.
Supports wire sizes from 0.1mm² (26 AWG) to 0.3mm² (22 AWG).
Meets industrial standards with no specific certifications but quality assured.

Product Description

JST SPSI-001T-M1.1 female crimp terminal is engineered for precision and durability in electronic component applications. Designed to support 5A current loads, this crimp terminal is compatible with PSI connector housings and supports wire gauges from 26 AWG minimum to 22 AWG maximum. Crafted from copper alloy with tin plating, it ensures excellent conductivity and corrosion resistance, critical for maintaining reliable electrical connections.

Operating across a temperature range from -25°C to 85°C, this crimp terminal is suitable for a wide range of industrial environments including electronics manufacturing, telecommunications, and automotive applications where secure wire connections are necessary.

The crimp termination type facilitates efficient field assembly and strong mechanical retention, reducing connection failures. With a maximum contact resistance of 20 milliohms, it minimizes power loss and heat generation, enhancing system efficiency.

Manufactured in Malaysia, the JST PSI series represents a proven connector system with low insertion force pin and socket contacts designed specifically for 4.00 mm connector pitches.

Constructed from tin-plated copper alloy for reliable conductivity. Suitable for crimp termination ensuring strong and secure wire connections. Operates efficiently within a temperature range of -25°C to 85°C. Designed specifically for use with the 4.00 mm PSI series connector system.

Offers a maximum contact resistance of 20 milliohms for low power loss. Supports wire sizes from 0.1mm² (26 AWG) to 0.3mm² (22 AWG). Meets industrial standards with no specific certifications but quality assured.

This crimp terminal is ideal for applications in electronics assembly, power connectors, wiring harnesses, and industrial control equipment requiring reliable female connector contacts.
