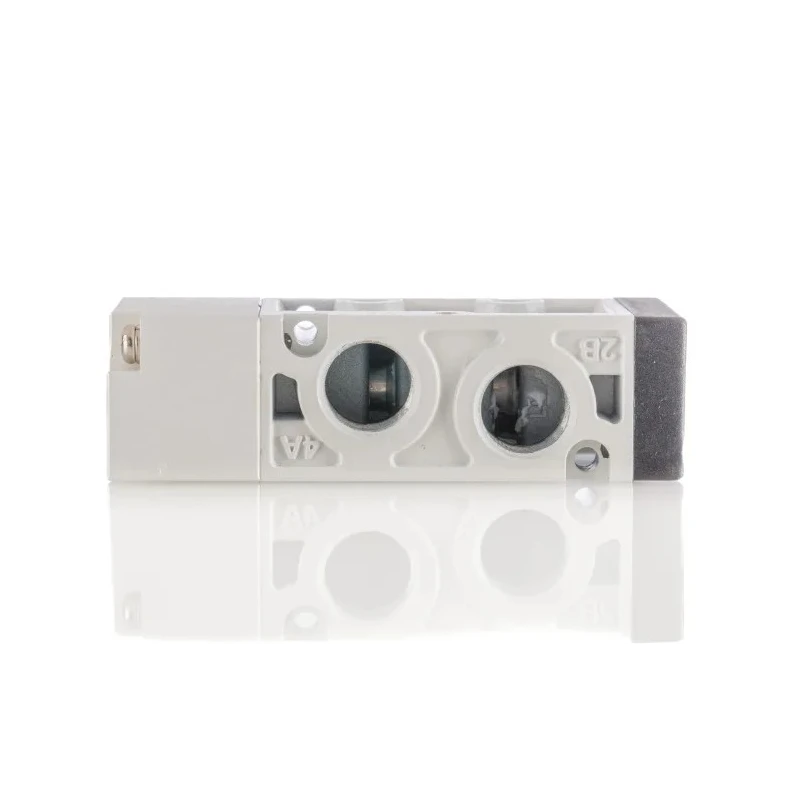

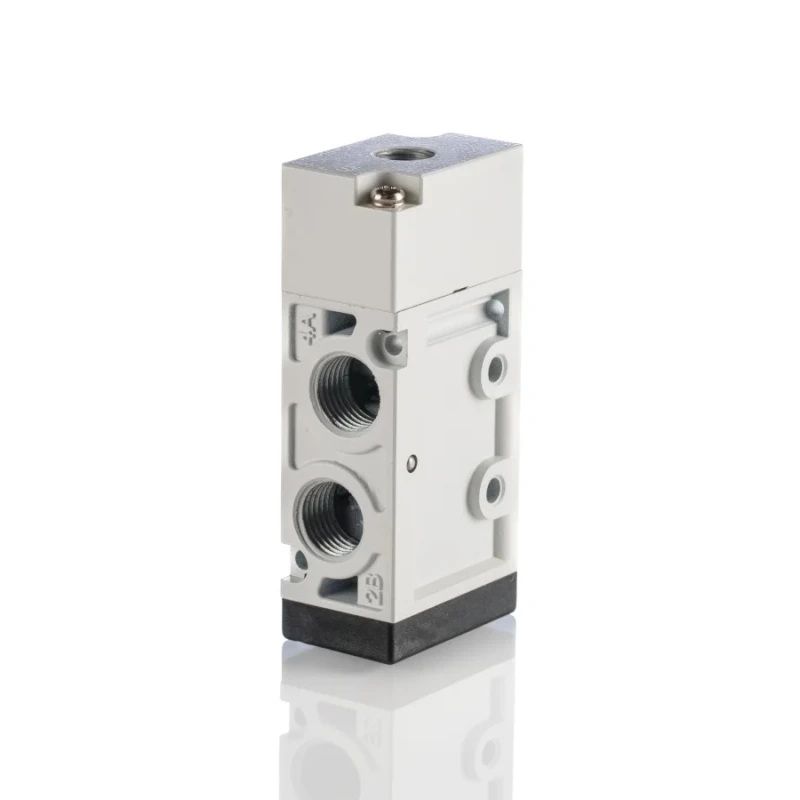

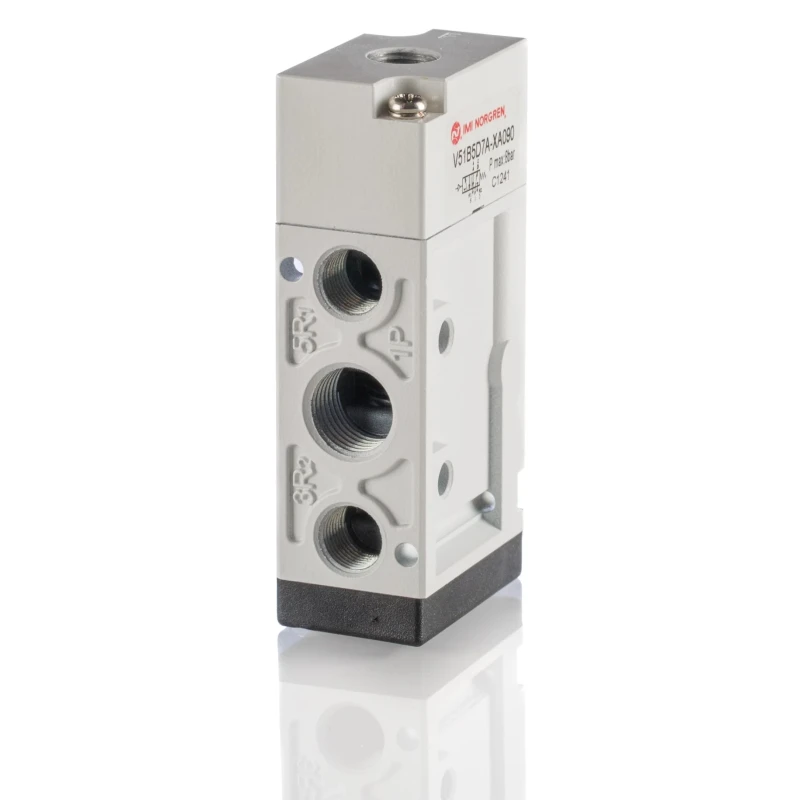

RS PRO Pneumatic Solenoid Valve 5/2 Function 1/2 in Port Size G 1/4 Thread Pilot/Spring Actuation 8 bar Max 907-6419

RS PRO 907-6419 Pneumatic Solenoid Valve is designed for industrial pneumatic systems requiring reliable and efficient control. This pilot/spring actuated valve features a 5/2 valve function, providing five ports and two operational positions, ideal for controlling directional flows.

The valve supports a maximum operating pressure of 8 bar and delivers a high flow rate of 1020 L/min, suitable for robust pneumatic applications. Built with a die cast aluminium body, the unit ensures durability and resistance against mechanical wear.

The connection thread conforms to G 1/4 standards with a 1/2 inch port size, allowing flexible integration into existing systems. It functions effectively in temperature ranges from -5°C to 60°C, accommodating various industrial environments.

Its soft-seal spool construction creates an airtight seal minimizing leakage and improving operational efficiency. The valve can be mounted inline or within manifold setups, adding to its installation adaptability.

This model incorporates a manual override feature that permits direct control over airflow, enhancing safety and maintenance options. The energy-efficient design reduces power consumption, supporting sustainability goals.

The valve offers a 5/2 function with two positions and five ports. Maximum operating pressure is 8 bar for demanding pneumatic controls. Die cast aluminium body offers durability and corrosion resistance. Connection thread standard is G 1/4 with 1/2 inch port size.

Operating temperature range from -5°C up to 60°C. Soft-seal spool design prevents leaks and maintains air tightness. Suitable for both inline and manifold mounting configurations. Includes a manual override feature for enhanced control and safety.

Efficient energy usage reduces environmental impact.

This Pneumatic Solenoid Valve is ideal for industrial, mechanical, manufacturing, and process automation applications requiring precise control of air or gas flows. The robust construction and flexible mounting enable use across a wide range of pneumatic systems. Explore EnvMart's Industrial Valves range for compatible products and solutions.
