Legrand Digital MicroRex Plus 2 DIN Rail Time Switch 2-Channel 230V AC 6 037 71

Free Delivery in India | Lowest Global Shipping Charges

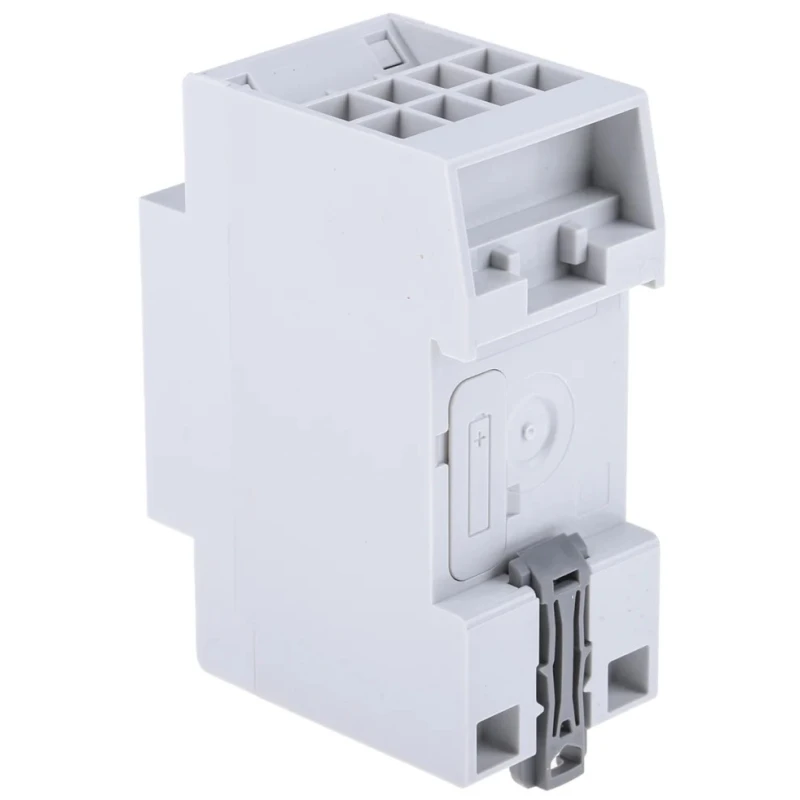

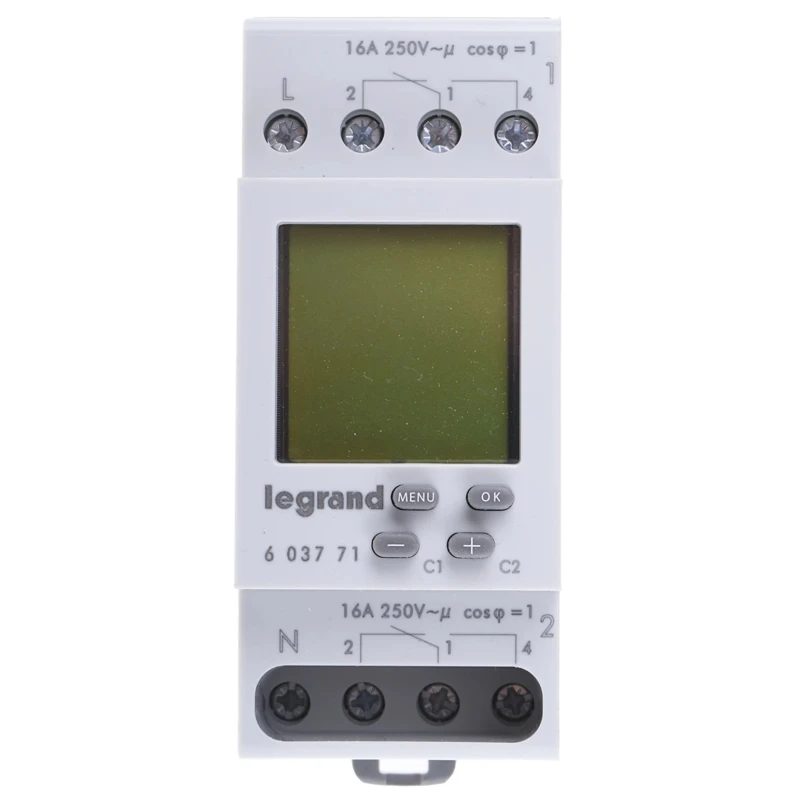

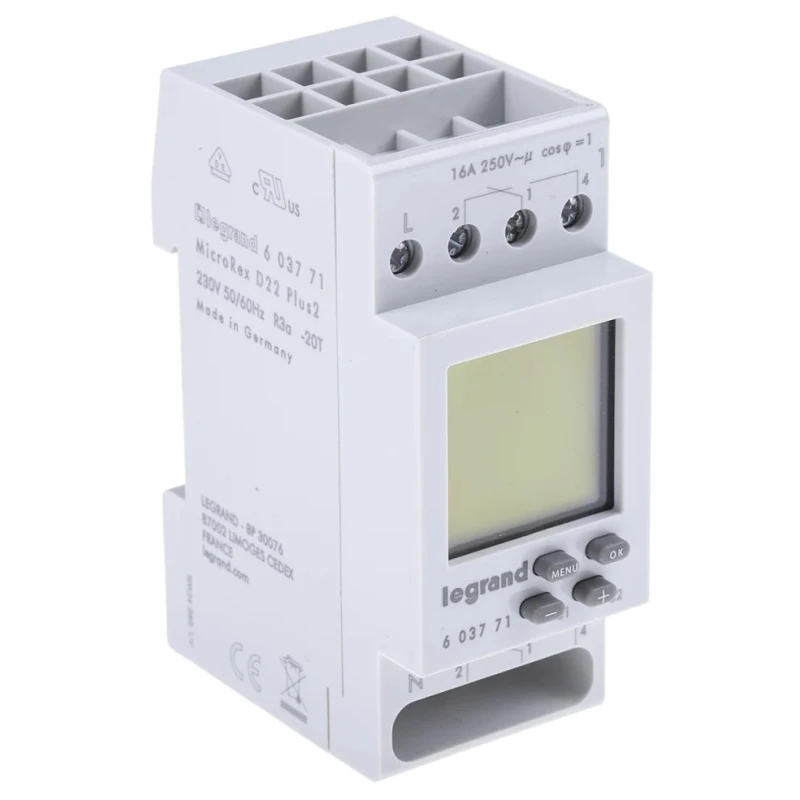

Legrand Digital MicroRex Plus 2 DIN Rail Time Switch 2-Channel 230V AC 6 037 71

Name: Legrand Digital MicroRex Plus 2 DIN Rail Time Switch 2-Channel 230V AC 6 037 71
Brand: Legrand
SKU: 135904
Price: 168.29 USD
Availability: InStock



Category Time Switch Brand Legrand Condition New

Specifications

Country of Origin	India
Brand	Legrand
Battery Life	3year
Model	6 037 71
Series	MicroRex Plus 2
Contact Configuration	SPDT
Sub Type	Digital
Number Of Channels	2
Standards/Approvals	RoHS
Maximum Supply Voltage	230V ac
Units Measured	Hours, Seconds, Minutes
Segment Length	15mm
Manual override (ON/OFF)	permanent ON or OFF

Key Features

Offers 14 programmable programs per channel, with one ON and one OFF time each.
Includes manual override for permanent ON or OFF control.
Automatic override inverses current program state until next scheduled ON time.
Equipped with an exchangeable battery providing 3-year running reserve life.
Operates reliably within an ambient temperature range of -10°C to 55°C.
Compact and robust digital time switch designed for DIN rail mounting.
Single Pole Double Throw (SPDT) contact configuration for versatile switching.
Measures time units in hours, seconds, and minutes with 15 mm segment length.

Product Description

Legrand 6 037 71 Digital MicroRex Plus 2 DIN Rail Time Switch is a compact, solid-state digital timer designed for precise process control and automation applications. Operating on 230V AC, it incorporates 2 independent channels with up to 14 programmable ON/OFF sequences per channel, enabling intricate scheduling flexibility. Its slim 15 mm segment length allows for detailed time adjustments measured in hours, minutes, and seconds, catering to various industrial automation needs.

This DIN Rail time switch features a Single Pole Double Throw (SPDT) contact configuration, suitable for switching loads in numerous electrical circuits. It includes convenient manual override options for permanent ON or OFF states, alongside an automatic override that inverses the programmed state until the next ON cycle, enhancing operational adaptability.

The device is powered by an exchangeable battery which provides a running reserve life of up to 3 years, guaranteeing sustained performance even during power interruptions. It operates reliably within an ambient temperature range of -10°C to 55°C, making it suitable for operation in diverse environments.

Engineered for use in industrial and commercial settings, it is commonly employed for outdoor and street lighting, heating, and ventilation control systems. Its compliance with RoHS and CE certification assures the highest standards of safety and environmental responsibility.

14 programs per channel allow detailed timing sequences. Manual and automatic overrides provide operational flexibility. Exchangeable battery with 3-year running reserve supports reliability. Compact 15 mm segment length for precise timing.

Robust SPDT contact suited for versatile electrical switching. Operating range from -10°C to 55°C for broad environmental suitability. Compliant with RoHS and CE standards for quality and safety. Ideal for controlling outdoor lighting, heating, and ventilation.

Legrand's MicroRex Plus 2 series offers dependable, high-performance time switching solutions tailored for industrial automation and process control. Browse additional Legrand automation products and DIN rail devices on EnvMart to find compatible control gear and Time Switches for your application.
