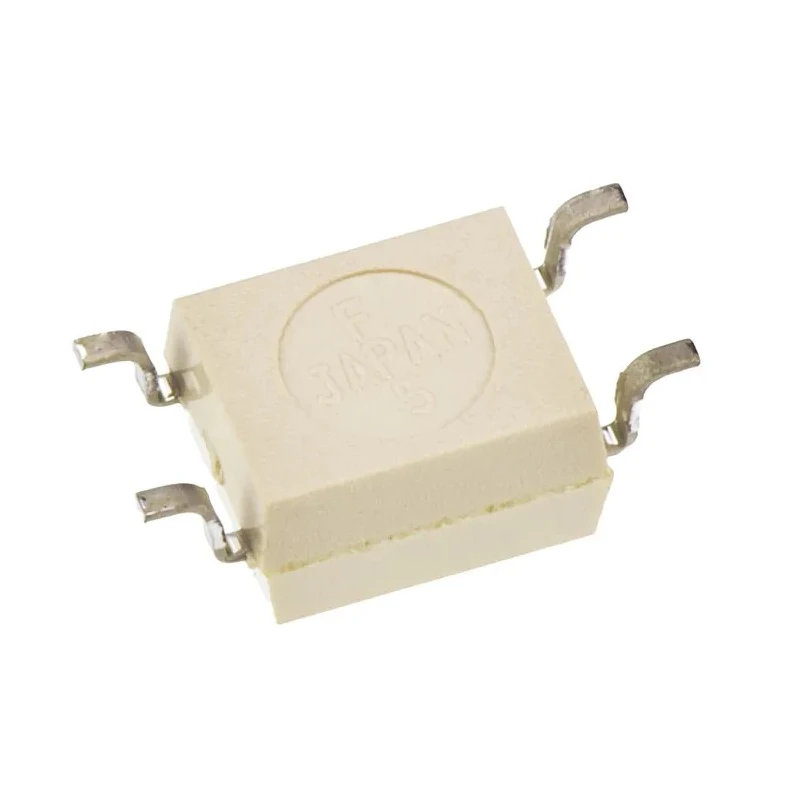

Toshiba DC Input Optocoupler Surface Mount 4-Pin SO Package TLP183(GB,E(T
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Toshiba |
| Model | TLP183(GB,E(T |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | TLP |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, EN, CSA |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 6% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Designed for DC input with a maximum forward voltage of 1.4V.
- Features a single channel phototransistor output.
- Typical rise time is 2 microseconds and fall time is 3 microseconds.
- Operating temperature range from -55°C to 125°C ensures durability in harsh environments.
- Offers a maximum input current of 50mA and a current transfer ratio up to 100% minimum.
- Complies with UL, EN, and CSA standards for safety and reliability.
- Manufactured in Thailand with high-quality semiconductor processes.
- Ideal for industrial, electronic, and embedded system applications requiring signal isolation.
Product Description
The Toshiba TLP183(GB,E(T is a high-performance DC input optocoupler designed for surface mount applications. It features a phototransistor output and is housed in a compact 4-pin SO package, making it suitable for space-constrained electronic designs.
With a maximum forward voltage of 1.4V and maximum input current of 50mA, it ensures efficient signal transfer and isolation. This device operates reliably across a wide temperature range from -55°C to 125°C, making it useful for demanding industrial and commercial environments.
The typical rise and fall times of 2μs and 3μs respectively enable fast response suitable for various electronic control and signal processing tasks. The optocoupler offers a current transfer ratio that ranges from a minimum of 100% to a maximum of 6%, providing consistent and precise signal transmission.
Compliant with UL, EN, and CSA standards, the TLP183(GB,E(T guarantees safety and quality expected in professional electronics manufacturing and embedded system integration. Manufactured in Thailand, it benefits from advanced semiconductor production techniques.
DC input with phototransistor output for signal isolation. Surface mount 4-pin SO package for compact installations. Wide operating temperature range from -55°C to 125°C. Typical rise time 2μs and fall time 3μs for efficient switching.
Operating current up to 50mA with high current transfer ratio. Meets multiple international approvals including UL, EN, and CSA.
This Optocoupler is widely applied in industrial control equipment, communication devices, power supplies, and various electronic circuits requiring electrical isolation between input and output. Its robust design and performance stability enhance reliability in laboratory, manufacturing, and commercial electronics systems.
Discover more Toshiba optoelectronics and related components at EnvMart for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.4V.
It operates reliably across a temperature range from -55°C to 125°C.
The typical rise time is 2 microseconds and the fall time is 3 microseconds.
The maximum input current for the TLP183(GB,E(T is 50mA.
This model features a phototransistor output.
It has a single channel output.
The TLP183(GB,E(T complies with UL, EN, and CSA standards.
It is housed in a compact 4-pin SO package.
The current transfer ratio ranges from a minimum of 100% to a maximum of 6%.
This optocoupler is manufactured in Thailand.
It requires a DC input.
It is suitable for industrial control equipment, communication devices, and various electronic circuits requiring electrical isolation.
