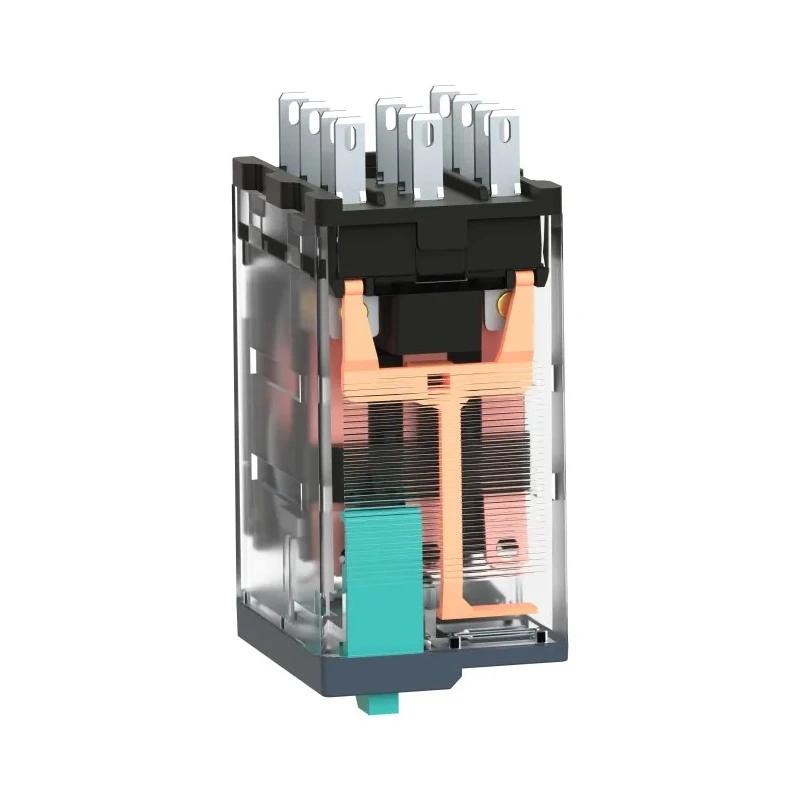

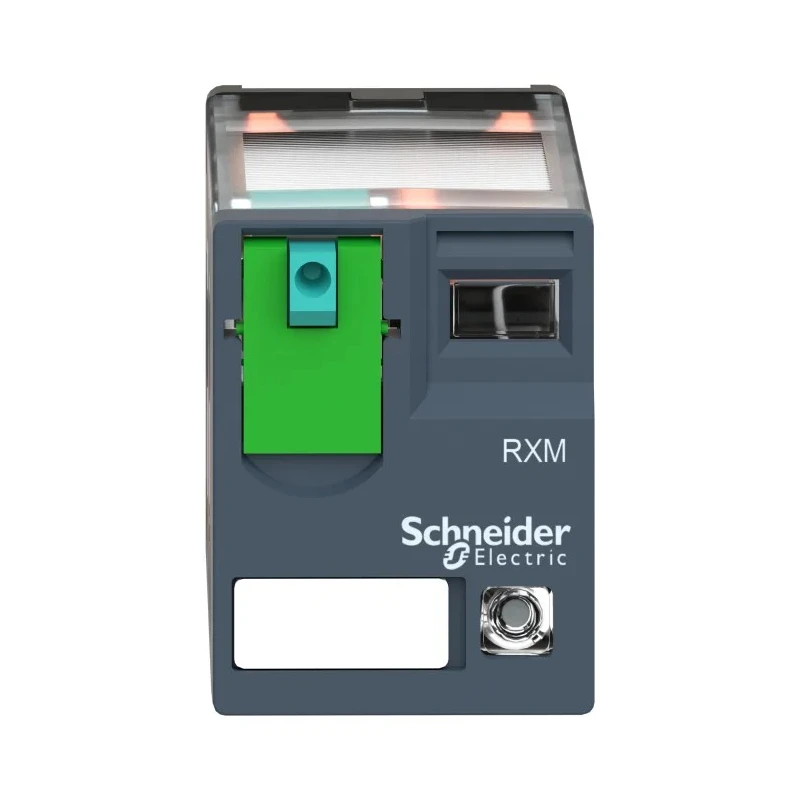

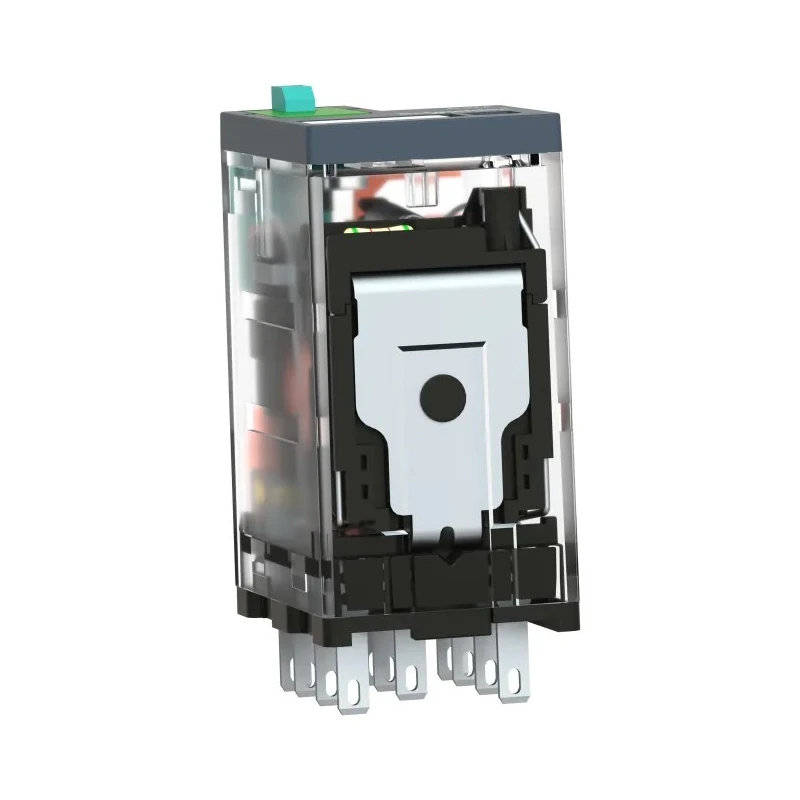

Schneider Electric Power Relay, 12V DC Coil, 10A Switching Current, 3PDT RXM3AB2JD

Schneider Electric RXM3AB2JD is a high-quality power relay designed for industrial, automation, and electrical control applications. It features a 12V DC coil and a switching current capacity of 10A, housed in a compact miniature plug-in form factor with 3PDT (triple pole double throw) contact configuration, enabling efficient control of multiple circuits.

This relay belongs to the Harmony RXM series, known for its robust build and space-saving design. It includes a one-step lockable test button and a "Power On" LED indicator to assist in troubleshooting and ready status confirmation. The transparent cover meets IP40 protection standards, making it suitable for various industrial environments while allowing easy visual inspection of relay contacts.

The device operates reliably within a temperature range of -40°C to 55°C, with silver alloy contacts that ensure high electrical performance and durability. Coil power is efficient at 900mW with a resistance of 160 ohms. The relay supports switching voltages up to 250V AC and 28V DC, making it adaptable for diverse control systems.

Additional features include compatibility with RXZE sockets with options for screw clamp, screw connector, or push-in terminals. Protection against vibrations can be reinforced by optional plastic or metal clamps, with available marking legends and protection modules. The RXM3AB2JD relay is widely used in industrial electrical enclosures, machine automation, HVAC systems, and programmable logic controllers (PLCs) to enhance machine reliability and control precision.

This model conforms to international standards and certifications such as IEC, CE, UL, CSA, EAC, Lloyd's, RoHS, and REACH, emphasizing its quality and environmental compliance. The relay is manufactured in China and supplied as the relay unit only, typically sold in lots of 10 for bulk industrial use.

Compact miniature plug-in relay with 3PDT contact configuration. 12V DC coil voltage with 900mW coil power consumption. Rated switching current of 10A with silver alloy contacts. Operating temperature range from -40°C to 55°C for diverse environments.

Transparent IP40 cover for easy status inspection. LED power indicator and lockable test button included. Compatible with RXZE sockets and optional mounting clamps. Meets international certifications including CSA and CE.

Ideal for industrial automation, electrical enclosures, and PLC applications.
