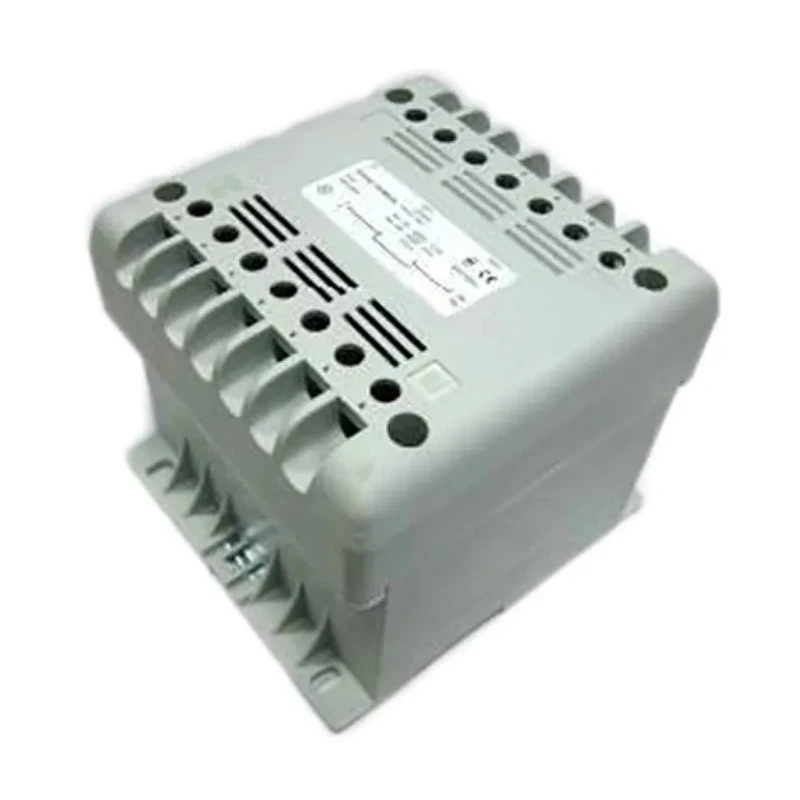

RS PRO 160 VA DIN Rail Transformer, 400 V ac, 230 V Primary, 24 V, 12 V, 115 V ac Secondary, IECBSEN 615586 or 880-2564

Name: RS PRO 160 VA DIN Rail Transformer, 400 V ac, 230 V Primary, 24 V, 12 V, 115 V ac Secondary, IECBSEN 615586 or 880-2564
Brand: RS PRO
SKU: 135454
Price: 190.81 USD
Availability: InStock



Category DIN Rail Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	136mm
Model	880-2564
Depth	116mm
Gross Weight	5kg
Width	102mm
Mount Type	DIN Rail
Maximum Operating Temperature	130°C
Number of outputs	2
RS Stock No.	880-2564Brand: RS PRO
Primary Voltage	400 V ac, 230 V
Secondary Voltage	24 V, 12 V, 115 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Compact DIN rail mount design for easy installation.
Dual standard primary winding supporting 230 V and 400 V ac.
Multiple secondary voltages of 24 V, 12 V, and 115 V ac.
Operates at frequencies from 50 Hz to 60 Hz.
High temperature tolerance up to 130°C.
Fully shrouded screw terminals with permanent marking.
Compliant with IECBSEN and ASNZS standards.
IP21 rated open type enclosure for safe panel mounting.

Product Description

The RS PRO 880-2564 is a professional-grade 160 VA DIN Rail Transformer designed for mounting in electrical control panels. Featuring a compact IP21 rated enclosure, this transformer supports primary voltages of 230 V and 400 V ac, with secondary outputs at 24 V, 12 V, and 115 V ac. This versatility makes it suitable for a wide range of industrial, manufacturing, and electrical distribution applications.

Designed with safety and durability in mind, the unit complies with international standards including IECBSEN 615586, CE, IECBSEN 615581, and ASNZS series. The transformer operates effectively within a frequency range of 50 to 60 Hz and maintains performance at maximum temperatures up to 130°C, catering to demanding environments.

The transformer features fully shrouded screw terminals that are permanently marked to aid precise wiring and ensure safety. Its dual primary windings offer compatibility with both 230 V and 400 V supply configurations, and the two secondary outputs allow for multiple voltage levels to be supplied simultaneously.

This compact and robust transformer weighs 5 kg, providing stability when installed on DIN rails within electronic enclosures. Manufactured in Poland, the RS PRO transformer is RoHS compliant, emphasizing environmentally responsible production practices.

Compact DIN rail mount design for easy installation. Dual standard primary winding supporting 230 V and 400 V ac. Multiple secondary voltages of 24 V, 12 V, and 115 V ac. Operates at frequencies from 50 Hz to 60 Hz. High temperature tolerance up to 130°C.

Fully shrouded screw terminals with permanent marking. Compliant with IECBSEN and ASNZS standards. Weight of 5 kg ensures installation stability. IP21 rated open type enclosure for safe panel mounting. Manufactured in Poland with RoHS and CE certification.

This transformer is ideal for use in industrial, commercial, electrical distribution, and manufacturing settings requiring reliable step-down or isolation transformer solutions. Browse the Transformers & Transformer Parts category on EnvMart to find compatible products and accessories to complete your setup.
