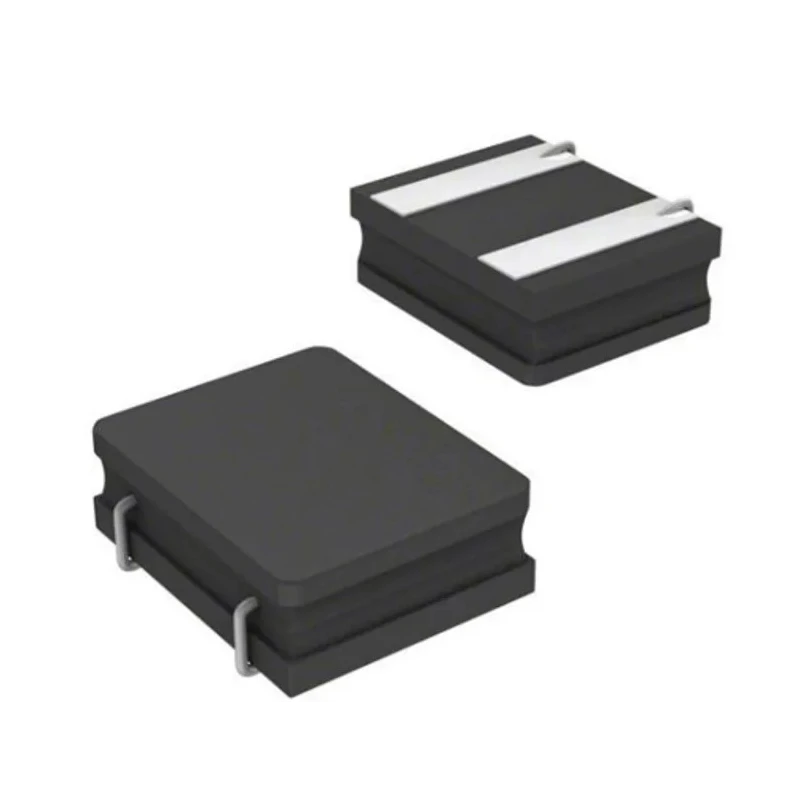

Murata Wirewound Surface Mount Inductor 22μH ±20% 540mA Idc, Shielded, Ferrite Core, 2520 Case LQH2HPZ220MJRL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 1.1mm |
| Length | 2.5mm |
| Model | LQH2HPZ220MJRL |
| Depth | 2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 2520 |
| Maximum DC Current | 540mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1000mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor features a shielded construction with a ferrite core for effective electromagnetic interference reduction.
- Packaged in a compact 2520 case with solder termination style.
- Embossed tape packaging ensures easy automated placement during assembly.
- Complies with automotive standard AEC-Q200 for reliable performance in harsh environments.
- Suitable for high inductance and low DC resistance applications in mobile phones, TVs, and digital cameras.
- Operates reliably in temperatures ranging from -40°C to elevated operating conditions.
- Maximum DC resistance of 1000mΩ and maximum self-resonant frequency of 20MHz enhance circuit stability.
Product Description
Murata LQH2HPZ220MJRL is a wirewound surface mount inductor with a 22μH inductance and ±20% tolerance, designed for high efficiency and performance in compact electronic devices. This shielded inductor incorporates a ferrite core around which a copper wire is precisely wound, resulting in low DC resistance and effective magnetic shielding to minimize EMI.
The 2520 package case measures 2.5mm in length, 2mm in depth, and 1.1mm in height, making it suitable for space-constrained printed circuit boards. It features solder termination style and is molded for durability.
Certified to automotive standard AEC-Q200, it supports maximum DC current of 540mA and has a maximum DC resistance of 1000mΩ. Its maximum self-resonant frequency is 20MHz, ensuring stable operation in RF and power applications.
This inductor is ideal for use in a variety of electronic industrial applications such as mobile phones, televisions, digital cameras, and other devices requiring high inductance and low loss components.
The inductance is 22μH with ±20% tolerance for design flexibility. Shielded construction reduces electromagnetic noise interference. Complies with AEC-Q200 standard ensuring automotive-grade reliability. Molded package enhances mechanical strength and handling.
Suitable for surface mount technology assembly for efficient manufacturing.
Murata Surface Mount Inductors provide dependable solutions for industrial, telecom, commercial electronics, and automotive electronics markets. Explore the EnvMart catalog for a wide selection of premium inductors and electronic components from trusted global brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
It supports a maximum DC current of 540mA.
The dimensions of the 2520 case are 2.5mm in length, 2mm in depth, and 1.1mm in height.
The inductor features a ferrite core material, which aids in effective electromagnetic interference reduction.
The maximum DC resistance is 1000mΩ.
It has a maximum self-resonant frequency of 20MHz.
Yes, it complies with the automotive standard AEC-Q200, ensuring reliability in harsh environments.
The termination style is solder, suitable for surface mount technology assembly.
It is packaged in embossed tape, which facilitates easy automated placement during assembly.
It is suitable for use in mobile phones, TVs, digital cameras, and other devices requiring high inductance and low loss components.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This model has a pin count of 2.
