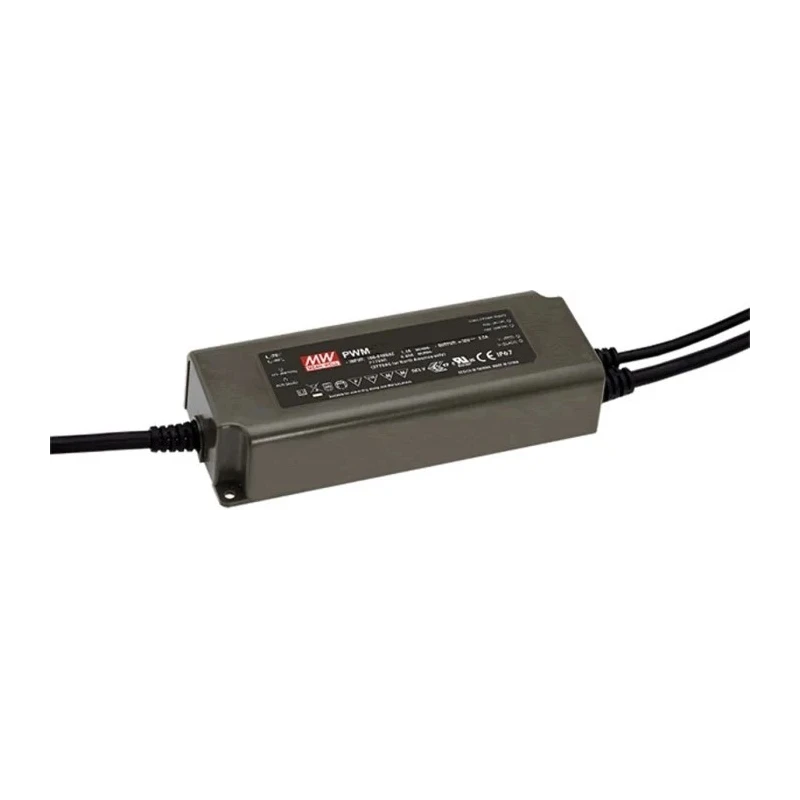

MEAN WELL IP67 1 Output 36V 90W 950mA Resistance PWM LED Driver
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | PWM-90 |
| Configuration | Sealed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 90W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 36V |
| Power Dissipation | 90W |
| Dimming Operation | Resistance, PWM |
| Primary Type | AC-DC, DC-DC |
| Driver Current | 950mA |
Key Features
- High efficiency up to 90.5% for energy saving operation.
- Built-in 3 in 1 dimming function for versatile lighting control.
- IP67 rated fully encapsulated design suitable for harsh environments.
- Wide input voltage range supporting 90 to 305V AC for flexible power conditions.
- Constant voltage PWM output ensures stable LED brightness and color temperature.
- Compact and sealed screw mount for easy and secure installation.
- Protection features against short circuit, overload, over voltage, and over temperature improve reliability.
- Class II design with double insulation cable for safe applications without grounding.
Product Description
MEAN WELL PWM-90-36 LED Driver is a 1 output LED driver delivering 36V at 90W with 950mA current, designed for high performance and reliability. This PWM driver supports resistance dimming with a built-in 3 in 1 dimming function and provides constant voltage output optimized for LED strip lighting and decorative LED solutions.
The unit features a robust IP67 rated enclosure, fully potted with silicone to enhance heat dissipation and vibration resistance up to 5G, making it ideal for harsh or dusty environments. Its power supply incorporates active PFC and meets multiple international standards including CB, CE, CSA C22.2 No.250.13-12, cULus, EN61347-2-13, and UL8750 certification, ensuring safety and regulatory compliance.
Typical applications include indoor and outdoor LED strip lighting, architectural illumination, and other LED decorative lighting requiring stable brightness and color temperature. The driver’s universal AC input (90-305V AC) supports flexible installation worldwide.
The compact sealed screw mount design facilitates secure mounting in diverse environments. The driver includes comprehensive protection features such as short circuit, overload, over voltage, and over temperature protection, thus extending lifetime and reliability.
Operating temperature range of -40°C to +70°C broadens usability across industrial, commercial, and residential lighting projects. The low no-load power consumption under 0.5W contributes to overall energy efficiency.
High efficiency of up to 90.5% ensures minimized energy loss. Built-in 3 in 1 dimming supports resistance, 0-10V, and PWM control. IP67 rated fully encapsulated housing for water and dust resistance. Constant voltage PWM output maintains consistent LED performance.
Wide AC input voltage range for global compatibility. Multiple protections for safe and reliable operation. Compact, sealed screw mount design for versatile installations. Operating temperature from -40°C to +70°C. Class II power supply with double insulated cable.
Low standby power consumption below 0.5W.
MEAN WELL LED Drivers are a trusted solution in commercial and industrial LED lighting applications. Explore the extensive MEAN WELL range at EnvMart for compatible LED driver solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 90W.
This model provides an output voltage of 36V.
The input voltage range for this LED driver is 90 to 305V AC.
It features a built-in 3 in 1 dimming function supporting resistance, 0-10V, and PWM dimming.
This unit includes protection features against short circuit, overload, over voltage, and over temperature.
The operating temperature range for this driver is from -40°C to +70°C.
This LED driver features a compact and sealed screw mount design for easy and secure installation.
The current output of this LED driver is 950mA.
The country of origin for this LED driver is India.
This driver uses a double insulated cable as part of its Class II design.
This LED driver is suitable for indoor and outdoor LED strip lighting, architectural illumination, and other decorative lighting applications.
