MEAN WELL IP67 5 Output LED Driver, 12V, 90W, 7.5A, Constant Voltage LED Driver IP67Rated

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 5 Output LED Driver, 12V, 90W, 7.5A, Constant Voltage LED Driver IP67Rated

Name: MEAN WELL IP67 5 Output LED Driver, 12V, 90W, 7.5A, Constant Voltage LED Driver IP67Rated
Brand: MEAN WELL
SKU: 134963



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	NPF-90
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Voltage
Number of outputs	5
Terminal type	Wire
Maximum Output Power	90W
Input Voltage	305, 90, 127, 431V ac
Output Voltage	12V
Power Dissipation	90W
Standards/Approvals	ENEC, EAC, CE, CB, CAN/CSA, UL, SELV
Primary Type	AC-DC
Driver Current	7.5A

Key Features

High efficiency up to 95% ensures low energy loss.
IP67 rated design protects against dust and water ingress.
Fully encapsulated plastic case with flame retardant material improves durability.
Supports universal AC input voltage from 90V to 305V.
Includes built-in active PFC for stable power supply.
Provides protection against short circuit, overcurrent, overvoltage, and overtemperature.
Operates in temperature range from -40°C to +70°C for versatile environments.
Class II power supply with double insulation cable for safe installation.

Product Description

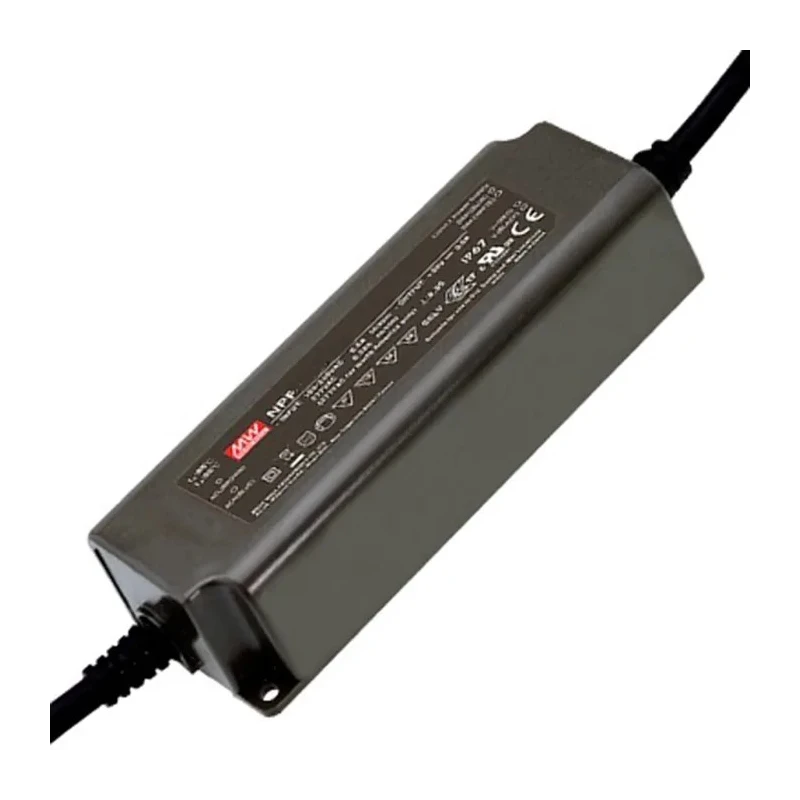

MEAN WELL NPF-90-12 IP67 5 Output LED Driver is a 12V, 90W power supply designed to provide stable constant voltage output suitable for LED lighting systems. It features a robust and fully encapsulated plastic enclosure rated at IP67, offering excellent protection against water and dust, making it ideal for harsh industrial and outdoor environments.

The driver supports a universal AC input voltage range of 90 to 305V AC and incorporates an active power factor correction (PFC) function, achieving efficiency levels up to 95%. Its no-load power consumption remains below 0.15W, ensuring energy savings during idle periods. The driver is designed for high reliability with built-in protections against short circuit, overcurrent, overvoltage, and overtemperature conditions.

The product complies with international safety standards including ENEC, EAC, CE, CB, CAN/CSA, UL, and SELV. Its silicone potting enhances vibration resistance up to 5G and improves heat dissipation. Operating temperature extends from -40°C to +70°C, suitable for demanding industrial and commercial uses.

The NPF-90-12 features five output channels delivering a total output current of 7.5A at 12V, allowing flexible configurations for LED lighting applications. The class II design with double insulation cable supports installation in dry, damp, or wet locations without the need for grounding (FG) pin.

High efficiency up to 95% for energy saving. Robust IP67 rated enclosure for outdoor and harsh environment protection. Universal AC input (90-305VAC) with active PFC improves power quality. Multiple protection features enhance operational safety and product life.

Wide operating temperature range from -40°C to +70°C. Class II double insulated design ensures installation safety. Suitable for industrial, commercial, and outdoor LED lighting applications.

This LED driver is a reliable choice for demanding LED lighting projects requiring efficient power delivery and environmental resistance. Explore more products in the LED Drivers category at EnvMart for your industrial lighting needs.
