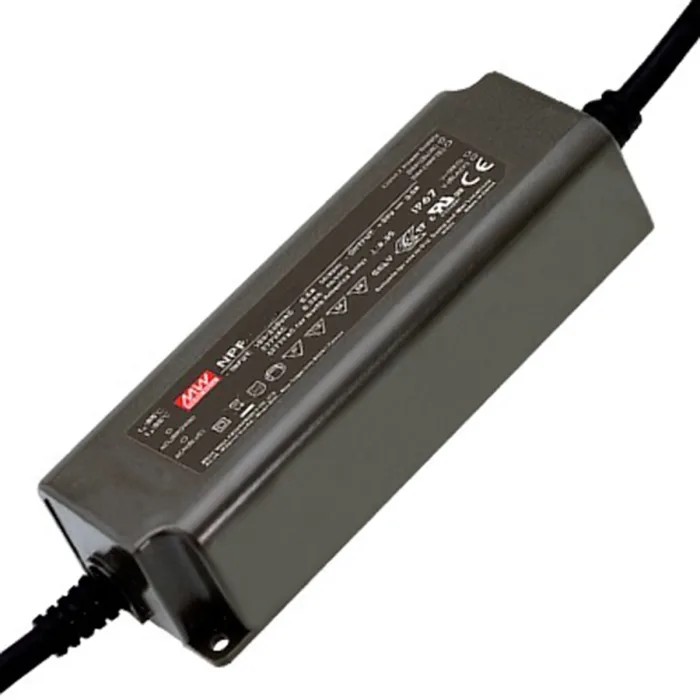

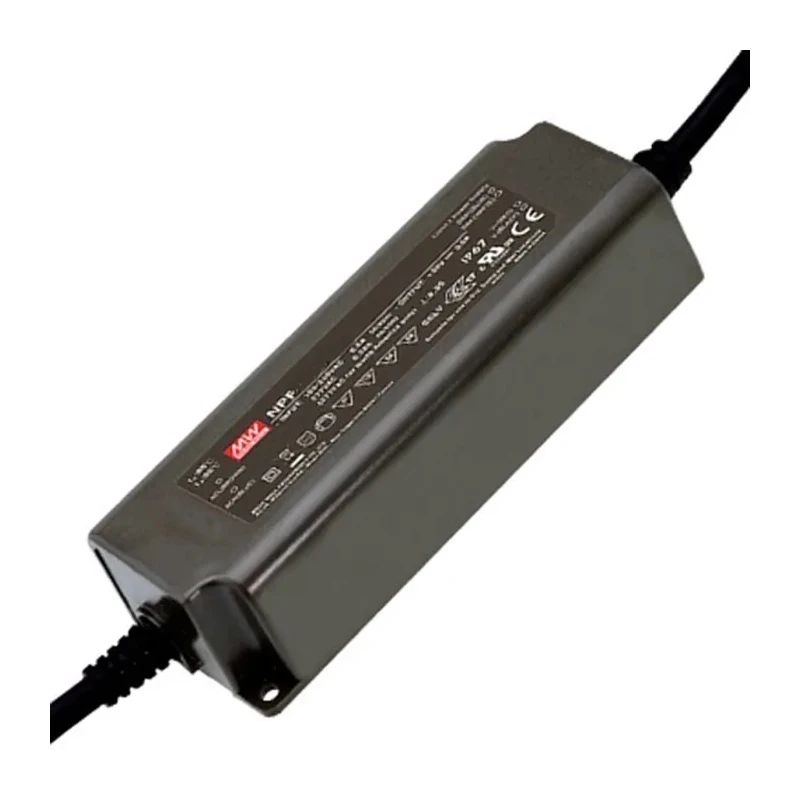

MEAN WELL IP67 5 Output Dimmable Constant Voltage LED Driver 36V 60.12W 1.67A PWM Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | NPF-60D |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 60.12W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 36V |
| Power Dissipation | 60.12W |
| Standards/Approvals | UL, SELV, ENEC, EAC, CE, CB, CAN/CSA |
| Dimming Operation | Resistance, PWM |
| Primary Type | AC-DC |
| Driver Current | 1.67A |
Key Features
- This LED driver offers high efficiency of up to 90% with low no-load power consumption below 0.15W.
- It supports a universal AC input voltage range from 90V to 305V with active PFC function.
- The LED power supply is fully encapsulated with an IP67 waterproof rating and constructed from 94V-0 flame retardant plastic.
- Features built-in 3 in 1 dimming functions including 0~10V DC, PWM signal, or resistance dimming options.
- Designed to operate in harsh environments with anti-vibration up to 5G and wide temperature range from -40°C to +70°C.
- It provides constant voltage operation mode and includes protection against short circuit, over current, over voltage, and over temperature.
- Class II design with double insulation and weather-resistant cable enable flexible installation across a variety of lighting applications.
- Fully isolated AC-DC driver configuration with screw mount and wire terminal connections.
Product Description
MEAN WELL NPF-60D-36 is a 60W dimmable, constant-voltage LED driver designed for robust industrial and commercial lighting applications. Delivering 36V output with a maximum power of 60.12W and 1.67A current across 5 outputs, this driver supports dimming operations via resistance, pulse width modulation (PWM), and 0-10V DC signals.
The driver features a rugged IP67 rated fully encapsulated plastic housing that ensures water and dust resistance, making it ideal for use in harsh environments with high humidity and dust exposure. It benefits from a flame retardant plastic case rated at 94V-0 and a fully potted interior for excellent heat dissipation and vibration resistance up to 5G.
With a universal AC input voltage range covering 90V to 305V, incorporating active power factor correction (PFC), the NPF-60D-36 achieves up to 90% efficiency with minimal no-load power consumption below 0.15W. This contributes to energy savings in continuous operation scenarios.
The class II power supply design includes double insulated weather-resistant cables and a screw mounting type suitable for flexible installation in industrial, commercial, agricultural, and HVAC lighting systems. Safety features include protections for short circuit, over current, over voltage, and over temperature, ensuring reliable and safe operation.
This LED driver complies with major international safety and performance standards such as UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, and EN62384, offering peace of mind with certifications including SELV, cUL, UL, ENEC, CB, and CE approvals.
High efficiency dimmable constant voltage LED driver delivering 36V output, 60.12W power, and 1.67A current. Waterproof IP67 rated fully encapsulated and flame retardant plastic housing ensures durability. Wide universal input voltage range of 90 to 305VAC with active PFC for reliable power supply.
Built-in 3 in 1 dimming: 0~10V DC, PWM signal, and resistance for versatile lighting control. Multiple protective features for short circuit, over current, over voltage, and temperature. Class II double insulated design with weather resistant cables for flexible installation.
Meets international safety certifications UL, SELV, ENEC, EAC, CE, CB, and CAN/CSA. Designed for industrial, commercial, HVAC, agricultural, and laboratory LED lighting applications. Explore more LED Drivers and lighting components in the Electronics & Electricals category at EnvMart for your industrial and commercial LED power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 60.12W.
It provides a constant output voltage of 36V.
The input voltage range is from 90V to 305V AC.
This driver features 5 outputs.
It supports dimming operations via resistance, PWM signal, and 0-10V DC.
The IP rating of this model is IP67, indicating it is waterproof and dust-tight.
This unit has a screw mount type for installation, but specific dimensions are not provided.
It complies with several safety standards including UL, SELV, ENEC, EAC, CE, CB, and CAN/CSA.
The operating temperature range is from -40°C to +70°C.
It features a fully encapsulated plastic housing made from flame retardant material rated at 94V-0.
It includes protections against short circuit, over current, over voltage, and over temperature.
