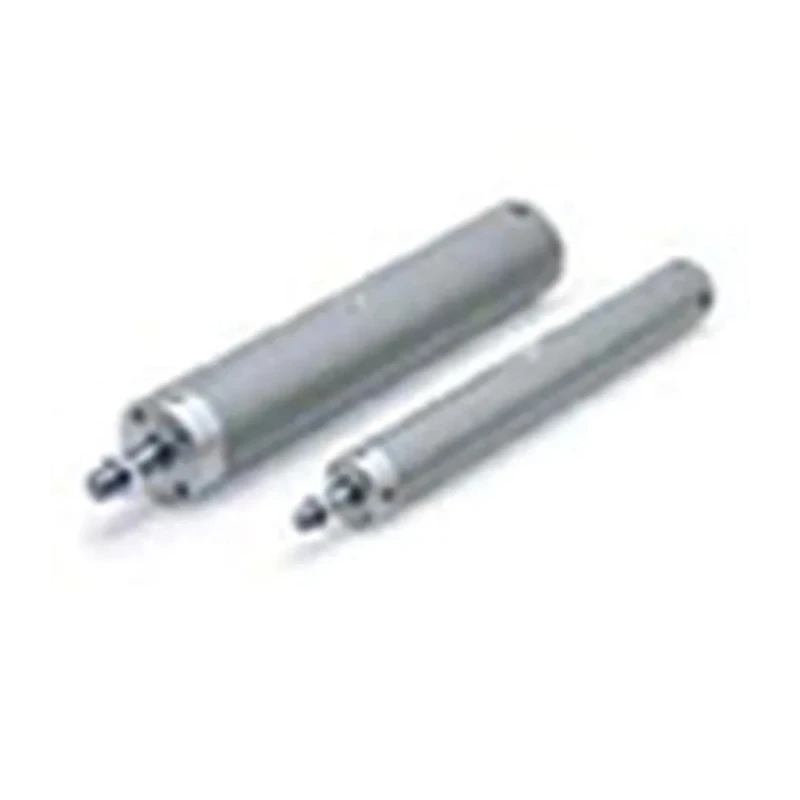

SMC Pneumatic Piston Rod Cylinder 100 mm Stroke, Double Acting, Aluminium Alloy Body CDG1BN50-100Z
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.0 MPa |
| Model | CDG1BN50-100Z |
| Series | CG1 |
| Maximum Operating Temperature | 60°C |
| Cushion | Rubber bumper |
| Stroke Length | 100mm |
| Proof Pressure | 1.5 MPa |
| Standards/Approvals | RoHS |
| Cushioning Type | Rubber Bumper |
| Minimum Operating Pressure | 0.05 MPa |
| Piston Rod Gender | Male/Female |
Key Features
- The cylinder features rubber bumper cushioning for smooth operation and reduced noise.
- It supports a maximum operating temperature of 60°C ensuring reliable performance.
- The piston rod is designed with both male and female gender options to suit application needs.
- The cylinder offers a maximum operating pressure of 1.0 MPa and proof pressure of 1.5 MPa.
- It includes a built-in magnet for auto switch capability and has a minimum operating pressure of 0.05 MPa.
- Designed for high-speed piston travel up to 1000 mm/s for efficient actuation.
- Constructed with compliance to RoHS standards and is manufactured in China.
Product Description
The SMC CDG1BN50-100Z pneumatic piston rod cylinder from the CG1 series is a precision-engineered double acting air cylinder with a 100 mm stroke length and aluminum alloy body. It is designed for a variety of industrial and manufacturing applications requiring reliable and smooth pneumatic actuation.
This air cylinder provides low break-away pressure, smooth stroke action, and multiple mounting options, enhancing operational flexibility. Its pneumatic piston rod features a rubber bumper cushion that absorbs shocks, reducing noise and wear during operation. The unit is equipped with a built-in magnet that allows for auto switch compatibility, enabling precise position detection.
The CDG1BN50-100Z is rated for a maximum operating pressure of 1.0 MPa and has a proof pressure of 1.5 MPa, with a minimum operating pressure of 0.05 MPa. It can operate efficiently at speeds up to 1000 mm/s and withstands temperatures up to 60°C, suitable for many industrial environments.
Manufactured in China and compliant with RoHS standards, this series offers a reliable pneumatic solution for automation, packaging, material handling, and other pneumatic control systems in industrial plants, laboratories, and commercial equipment.
Rubber bumper cushioning for shock absorption and extended durability. Aluminum alloy body for lightweight strength and corrosion resistance. Double acting, single rod pneumatic cylinder design for versatile actuation. Supports high piston speeds up to 1000 mm/s for rapid response.
Built-in magnet for auto switch capability enabling precise control. Meets RoHS compliance for environmentally safe manufacturing. Suitable for various industrial sectors including manufacturing and material handling. Explore the full range of Pneumatic Piston Rod Cylinders from SMC at EnvMart to find tailored solutions for diverse pneumatic automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this cylinder is 100 mm.
It has a maximum operating pressure of 1.0 MPa.
The body of this model is constructed from aluminum alloy, providing lightweight strength and corrosion resistance.
The maximum operating temperature is 60°C.
Yes, it features rubber bumper cushioning for smooth operation and reduced noise.
The minimum operating pressure is 0.05 MPa.
The proof pressure is rated at 1.5 MPa.
The piston can travel at speeds up to 1000 mm/s.
This cylinder is suitable for various industrial applications, including automation, packaging, and material handling.
The piston rod is designed with both male and female gender options to suit different application needs.
Yes, it is compliant with RoHS standards, ensuring environmentally safe manufacturing.
This pneumatic cylinder is manufactured in China.
