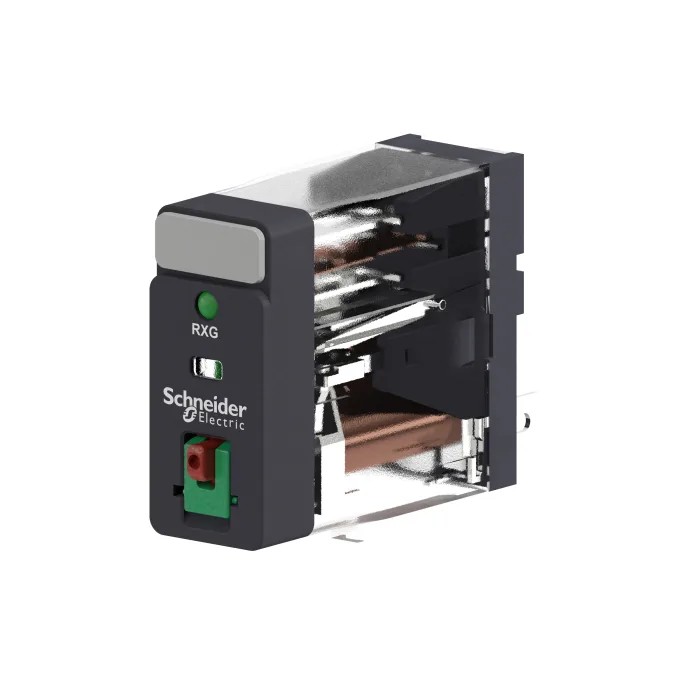

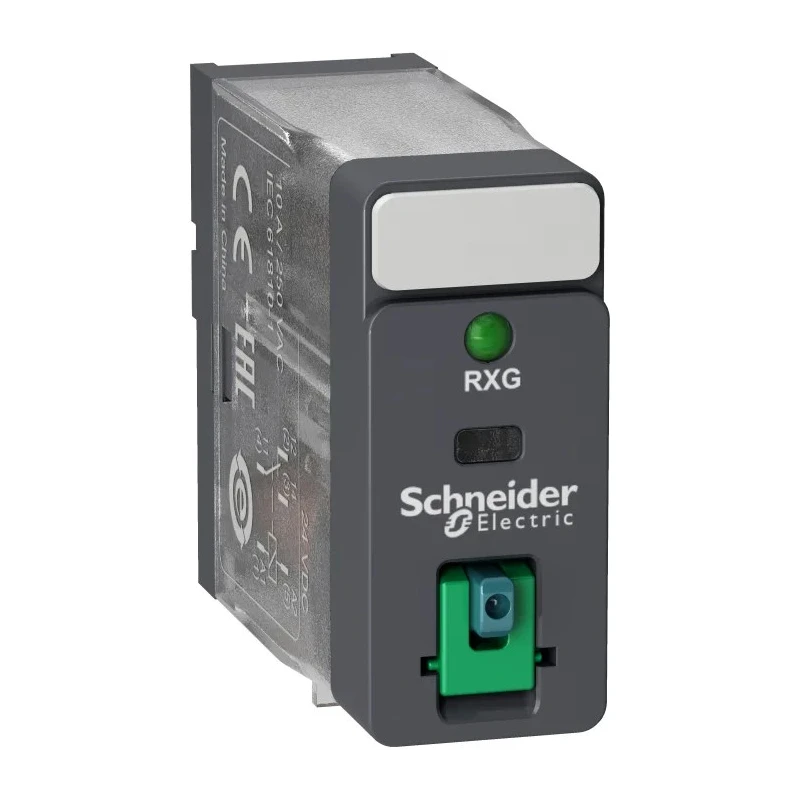

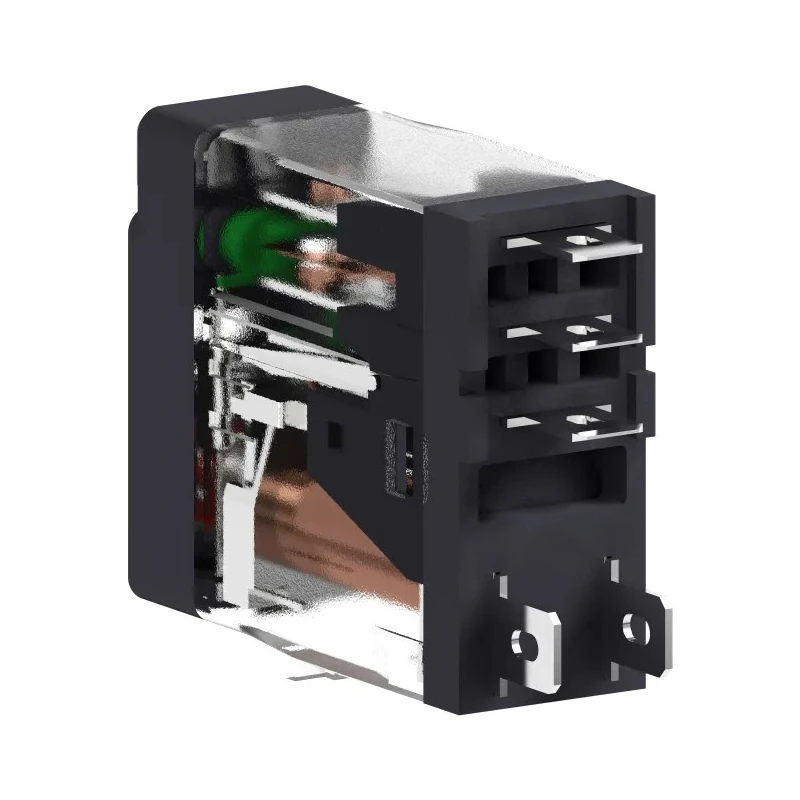

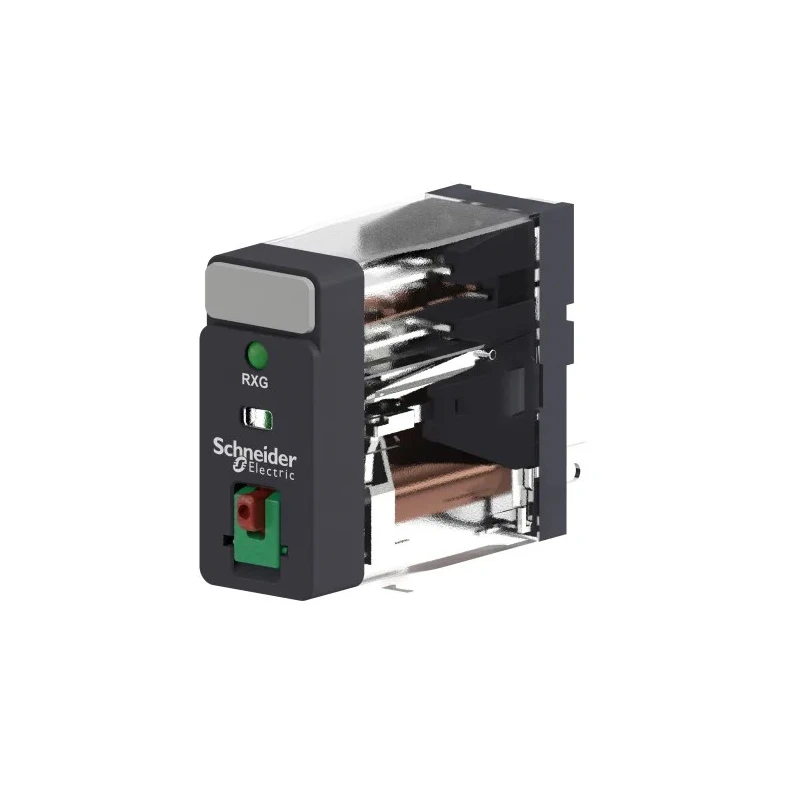

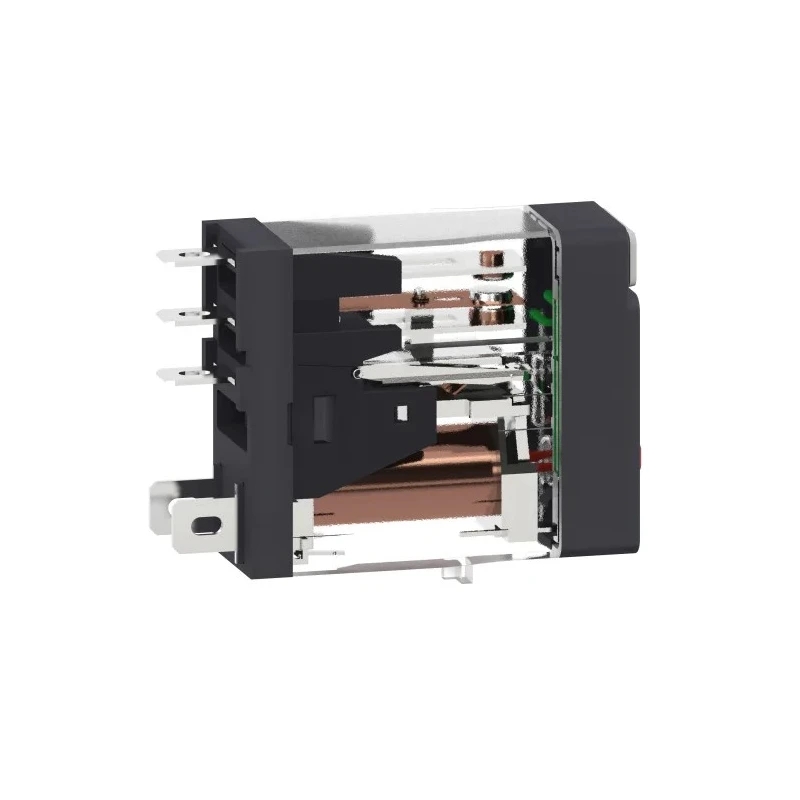

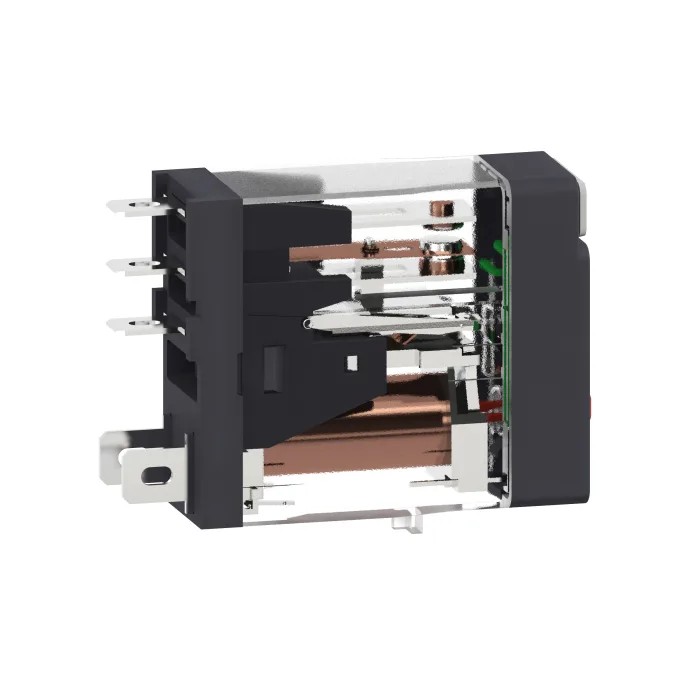

Schneider Electric Power Relay 12V DC Coil 10A Switching Current SPDT RXG12JD

Schneider Electric RXG12JD power relay is engineered for reliable switching with a 12V DC coil and single pole double throw (SPDT) contact configuration rated for 10A current. This compact plug-in relay from the Harmony RXG series measures 37.1mm in height, 30.6mm in width, and 13mm in length, making it suitable for control panels where space is limited.

The relay supports switching voltages up to 250V AC and 30V DC and features a coil resistance of 270 Ω with a coil power consumption of only 530 mW. It operates effectively within a temperature range of -40°C to 70°C, ensuring dependable performance in diverse industrial environments.

Constructed with silver alloy contacts and a low contact resistance of 100 mΩ, the RXG12JD offers durable electrical performance and mechanical endurance. Certified to CE and CSA standards, it ensures safety and compliance in automation and control applications.

This plug-in relay is designed for industrial automation, manufacturing process controls, HVAC systems, and other electrical equipment requiring reliable interface relays with status indication and testability. Its functionality includes a lockable test button and LED indicator for easy maintenance and status visibility during both day and night operation.

The RXG12JD relay supports seamless integration with programmable logic controllers (PLCs) and hard-wired logic control systems, enhancing machine reliability while reducing enclosure sizes and wiring complexity.

This power relay belongs to the Harmony Relay RXG series with plug-in terminal type. It offers a contact switching capacity of 10A and supports AC voltage up to 250V. Coil resistance is 270 Ω with coil power consumption of 530 mW.

Operating temperature ranges from -40°C to 70°C for durable performance. Compact dimensions of 37.1mm height, 30.6mm width, and 13mm length optimize panel space. Contact material made from silver alloy ensures reliability and low contact resistance of 100 mΩ.

Certified with CE and CSA standards for quality assurance. Designed for easy installation with plug-in terminals and lockable test button feature.

This relay is ideal for use in electrical, automation, manufacturing, HVAC, and control system applications. Browse the Electronics & Electricals category at EnvMart for more Schneider Electric Power Relays and related components.
