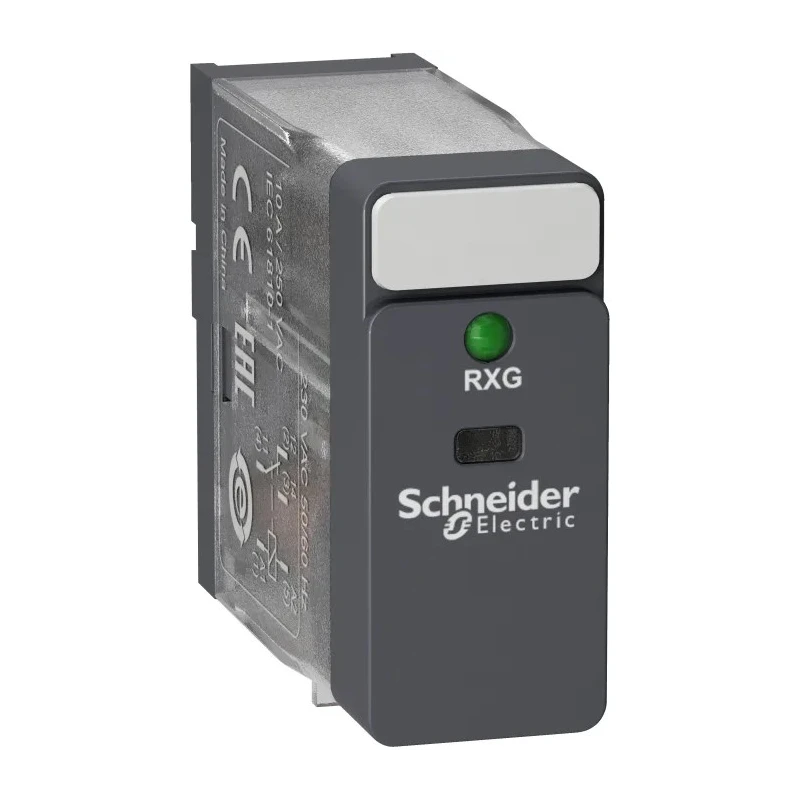

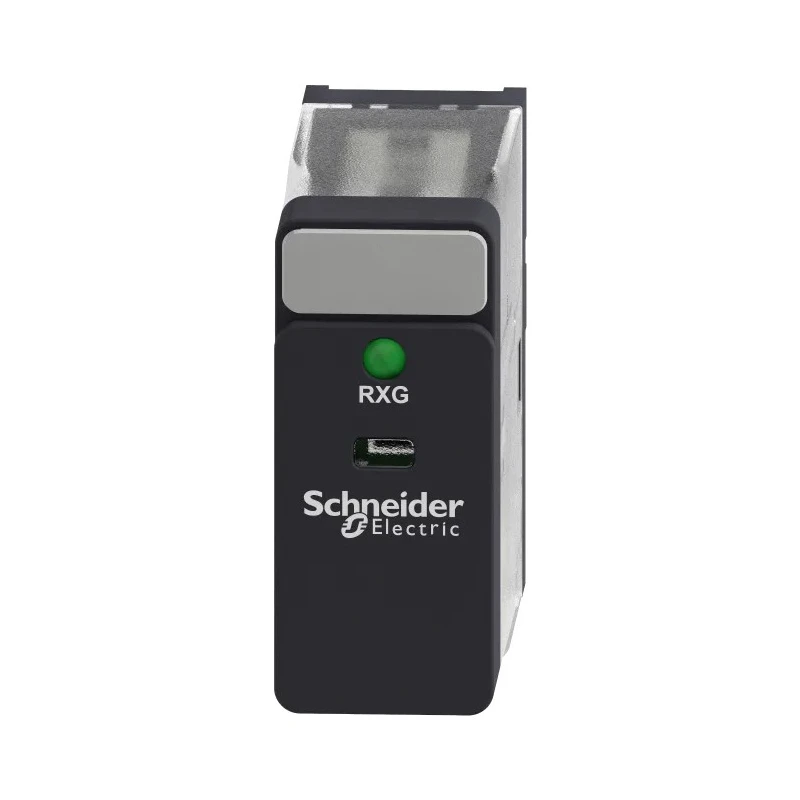

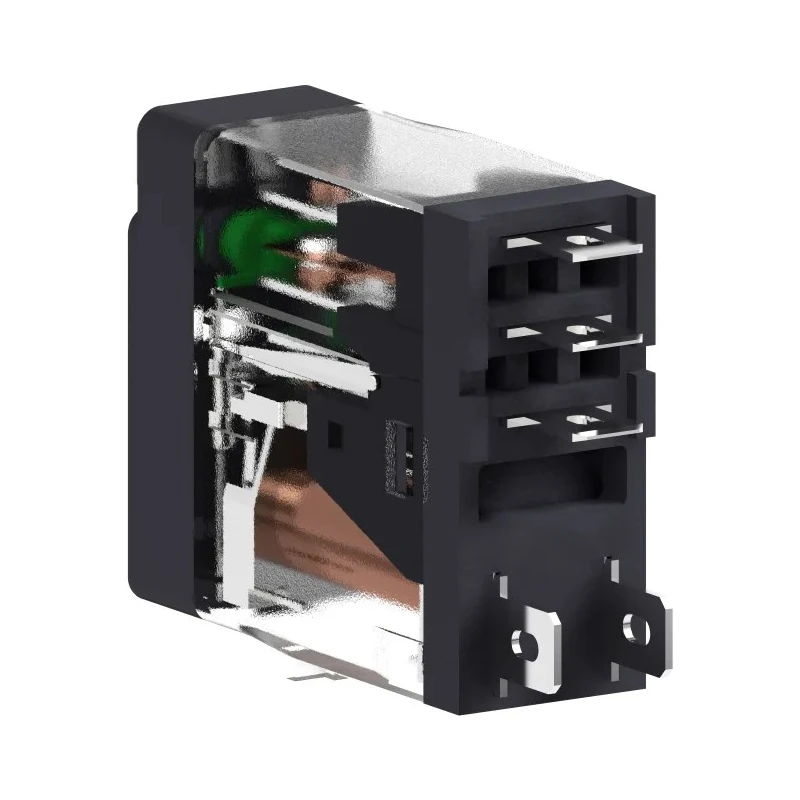

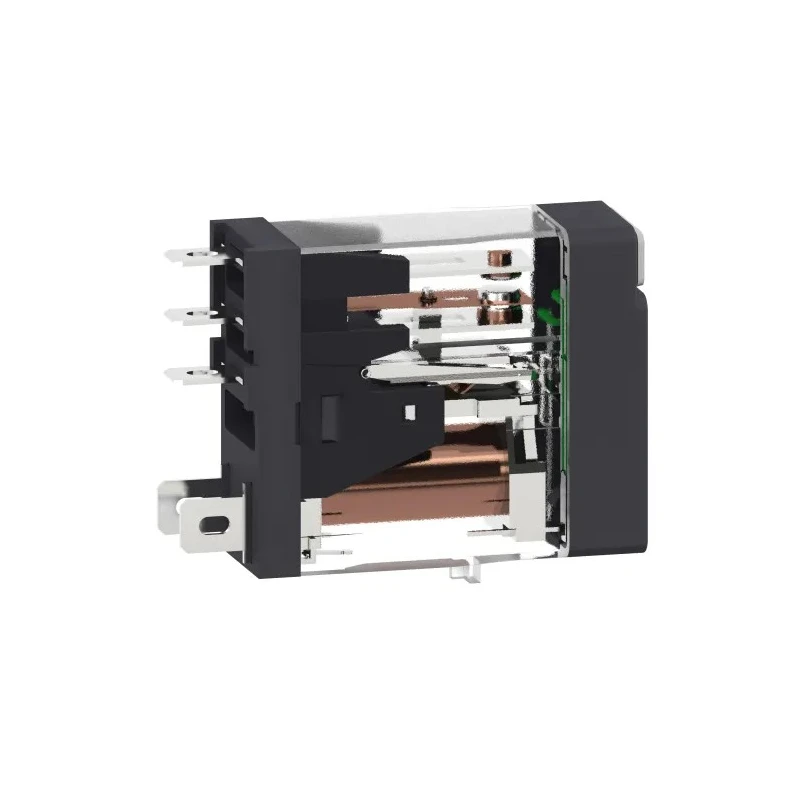

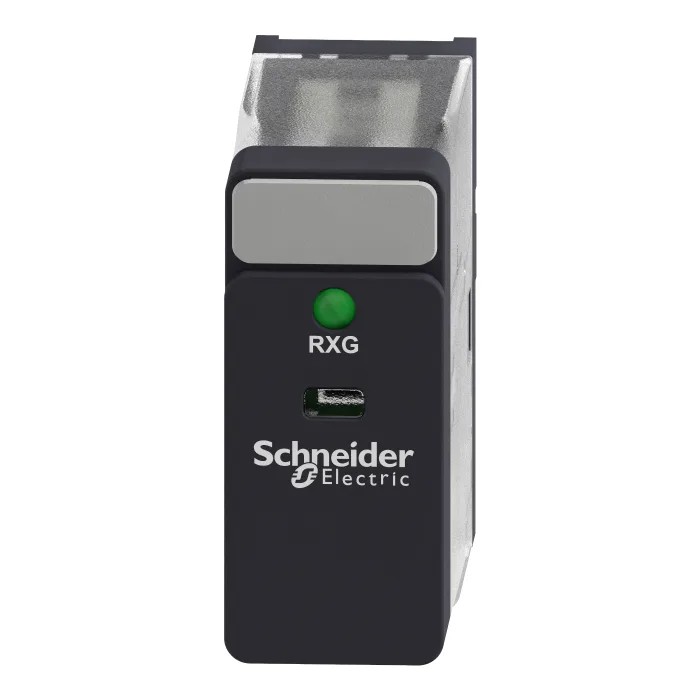

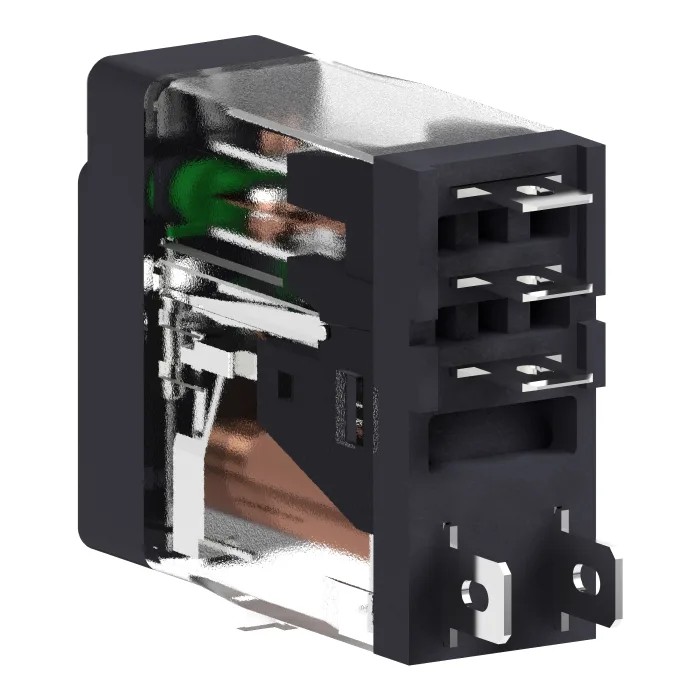

Schneider Electric Power Relay 24V AC Coil 10A Switching Current SPDT RXG13B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG13B7 |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 260Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 820mW |
| Better World Claim | Designed for Disassembly |
Key Features
- The coil voltage is rated at 24V AC for reliable operation.
- Switching current is rated at 10A for robust power handling.
- Contact configuration is Single Pole Double Throw (SPDT) for versatile control.
- Constructed with silver alloy contacts ensuring low contact resistance of 100mΩ.
- Operating temperature ranges from -40°C to 70°C for wide environmental tolerance.
- The relay has a compact size with dimensions 37.1mm height, 30.6mm width, and 13mm length.
- Coil resistance is 260Ω with power consumption of 820mW for efficient energy usage.
- Standard approvals include CSA and CE ensuring quality and compliance.
Product Description
Schneider Electric RXG13B7 power relay offers reliable switching capabilities with its 24V AC coil and 10A switching current in an SPDT contact configuration. This plug-in relay is part of the Harmony RXG series and is designed for industrial and automation applications requiring dependable relay switching.
The relay features silver alloy contacts that provide low contact resistance of 100mΩ, contributing to operational efficiency and durability. It supports a wide operating temperature range from -40°C to 70°C, permitting use in diverse environmental conditions. Its compact dimensions of 37.1mm height, 30.6mm width, and 13mm length allow for space-efficient panel installations.
The coil resistance is 260Ω, with a coil power rating of 820mW, ensuring energy-efficient operation. CSA and CE approvals confirm the product meets stringent quality and safety standards. This relay supports switching AC voltages up to 250V and DC voltages up to 30V, making it suitable for various control systems.
The plug-in terminal type simplifies mounting and maintenance, while the Better World designation indicates design for disassembly and sustainability. This Schneider Electric relay is ideal for industrial control panels, automated machinery, and other electrical automation tasks where high reliability and quality are essential.
The coil voltage is rated at 24V AC for reliable operation. Switching current is rated at 10A for robust power handling. Contact configuration is Single Pole Double Throw (SPDT) for versatile control. Constructed with silver alloy contacts ensuring low contact resistance of 100mΩ.
Operating temperature ranges from -40°C to 70°C for wide environmental tolerance. The relay has a compact size with dimensions 37.1mm height, 30.6mm width, and 13mm length. Coil resistance is 260Ω with power consumption of 820mW for efficient energy usage.
Standard approvals include CSA and CE ensuring quality and compliance. Designed for easy plug-in installation with Harmony RXG series compatibility. Manufactured in China and designed for disassembly as a Better World product.
Browse more Schneider Electric relays and Power Relays at EnvMart for reliable industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is rated at 24V AC for reliable operation.
This model has a maximum switching current rated at 10A, allowing for robust power handling.
The contact configuration of this relay is Single Pole Double Throw (SPDT), providing versatile control options.
The relay has compact dimensions of 37.1mm in height, 30.6mm in width, and 13mm in length.
It operates within a temperature range of -40°C to 70°C, making it suitable for diverse environmental conditions.
The coil resistance is 260Ω, which contributes to its efficient energy usage.
This relay features a plug-in terminal type, simplifying mounting and maintenance.
The contact resistance is low at 100mΩ, which enhances operational efficiency.
This model has standard approvals including CSA and CE, ensuring quality and compliance.
The coil power consumption is rated at 820mW, ensuring efficient operation.
It can switch AC voltages up to 250V and DC voltages up to 30V, making it versatile for various control systems.
The RXG13B7 is manufactured in China, as indicated by its country of origin.
