Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, FAZ Series, DIN Rail Mount, 6 A, 250V AC, 113895 Z-IHK-NA

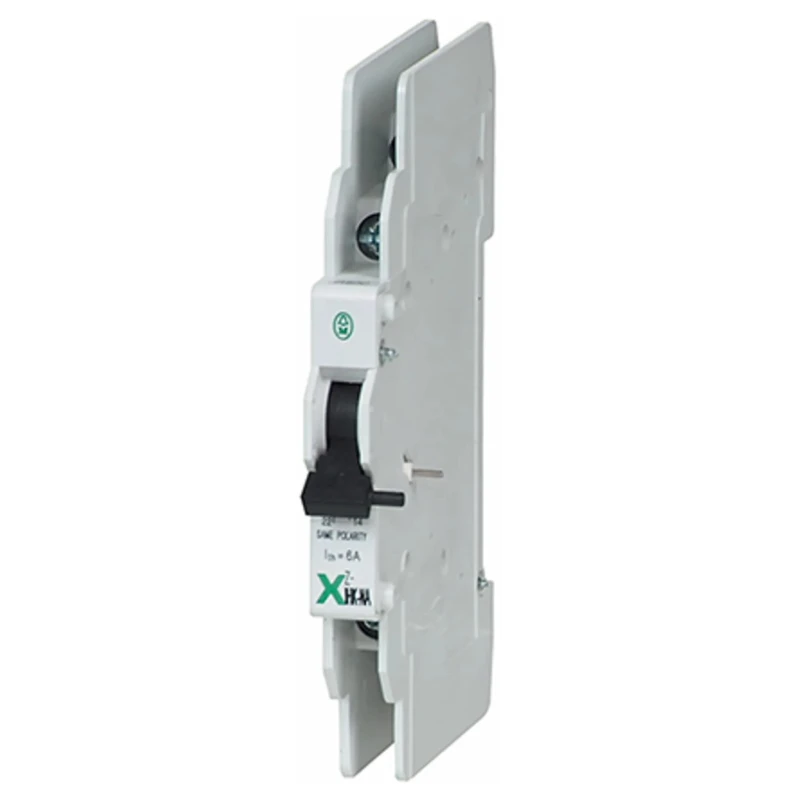

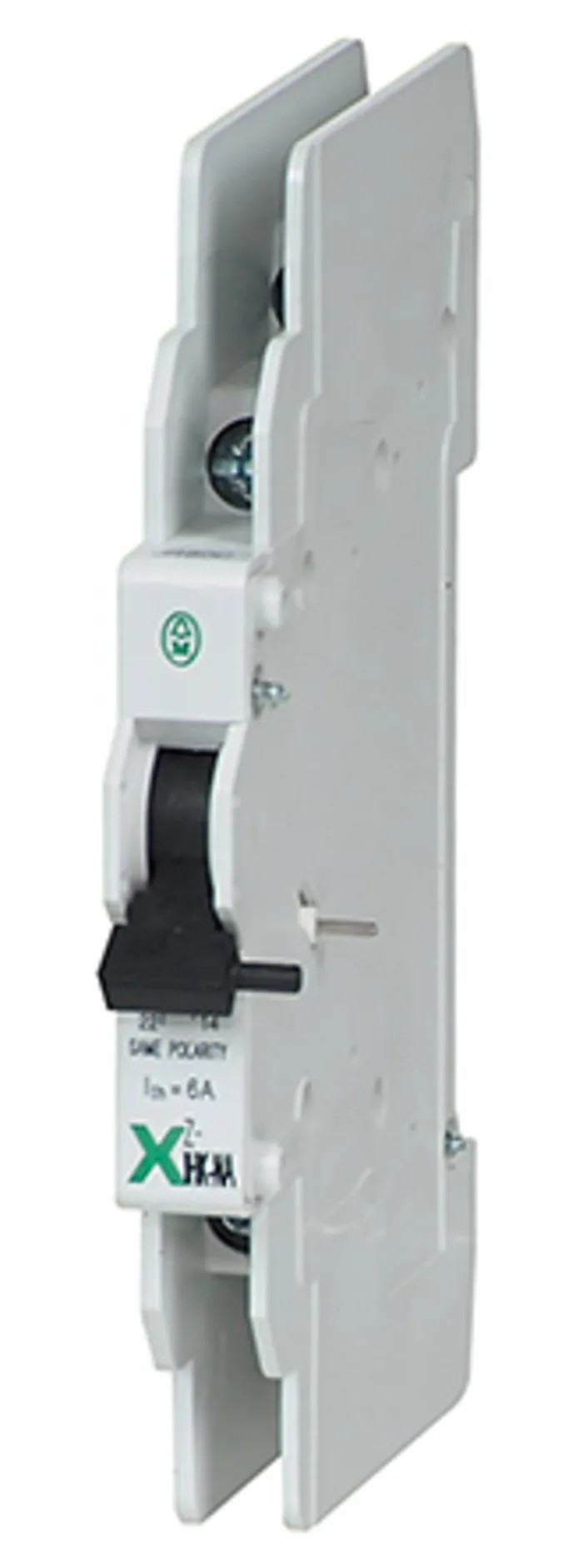

Eaton 113895 Z-IHK-NA Auxiliary Contact is a professional-grade auxiliary contact block designed specifically for use with the FAZ series of miniature circuit breakers. It features 2 contacts arranged as 1 normally open (NO) and 1 normally closed (NC), ensuring precise signalling and control in electrical circuits. The product is mounted on a DIN rail, commonly found in electrical control panels.

This auxiliary contact offers a reliable current rating of 6 A and an operational voltage of 250 V AC, delivering robust performance in industrial and commercial electrical applications. Its screw terminal type supports secure and efficient wiring.

The device is engineered with current-limiting and trip-free design features, providing fast and safe short-circuit interruption that minimizes let-through energy, thereby protecting branch circuit devices and associated equipment.

Installation is user-friendly, with the contact block designed to attach on the left side of miniature circuit breakers or shunt trips. It incorporates small selector screw terminals to change operating modes easily.

Eaton 113895 Z-IHK-NA complies with rigorous international standards including IEC/EN 60947-2, CE, CSA, CCC, RoHS directives, UL 1077, VDE, and more, assuring safety, compatibility, and high-quality performance. The unit also has an IP40 rating and protection against electric shocks as per IEC 536.

Common industrial applications include use in electric motor starters, control systems, power distribution circuits, and various forms of electrical signalling equipment. By providing contact status feedback synchronized with circuit breaker operation, it enhances safety and system monitoring.

This auxiliary contact is suitable for environments operating between -5°C and 40°C and is designed for control panel mounting, making it versatile for various industrial automation and electrical control systems.

The contact block is designed for installation on the left side of miniature circuit breakers or shunt trips. Features screw terminal type for secure electrical connections. Rated operational voltage and insulation voltage are 250 V AC ensuring safety and reliability.

Suitable for control panels with operating temperature range from -5°C to 40°C. Complies with multiple standards including IEC/EN 60947-2, CE, CSA, CCC, RoHS, UL 1077, and VDE. Compact DIN rail mount design facilitates easy integration and maintenance.

Provides fast short-circuit interruption with current limiting and trip-free design. Typical applications include electric motor starters, industrial control systems, power circuits, and electrical signalling equipment. The Auxiliary Contact switches simultaneously with the miniature circuit breaker operation, enhancing control and monitoring capabilities.

Offers protection against electric shocks compliant to IEC 536 and has an IP40 rating. Explore more products from Eaton and other top industrial electrical components on EnvMart to support your automation and control systems.
