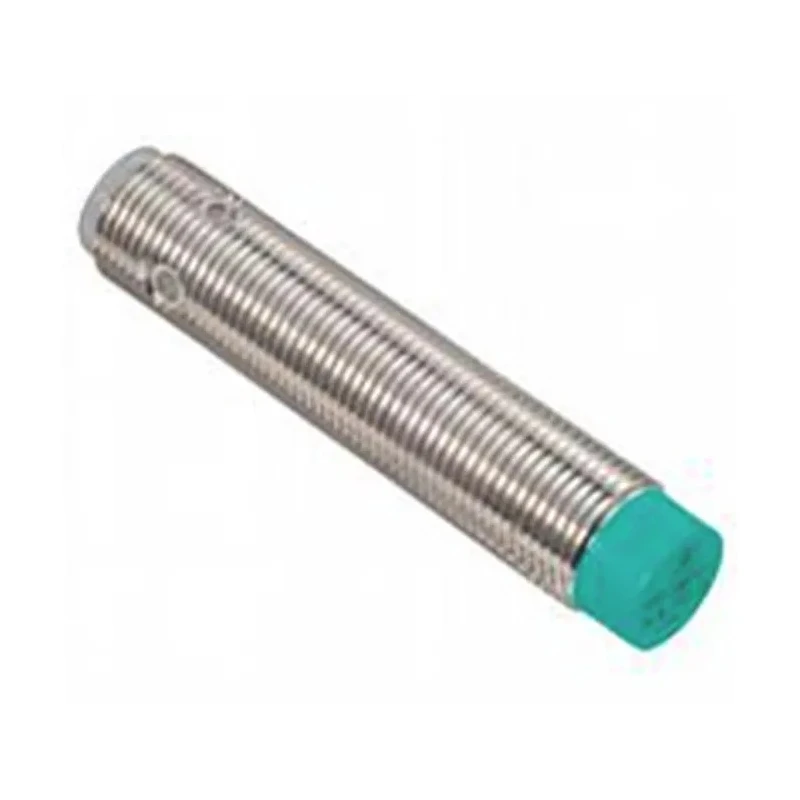

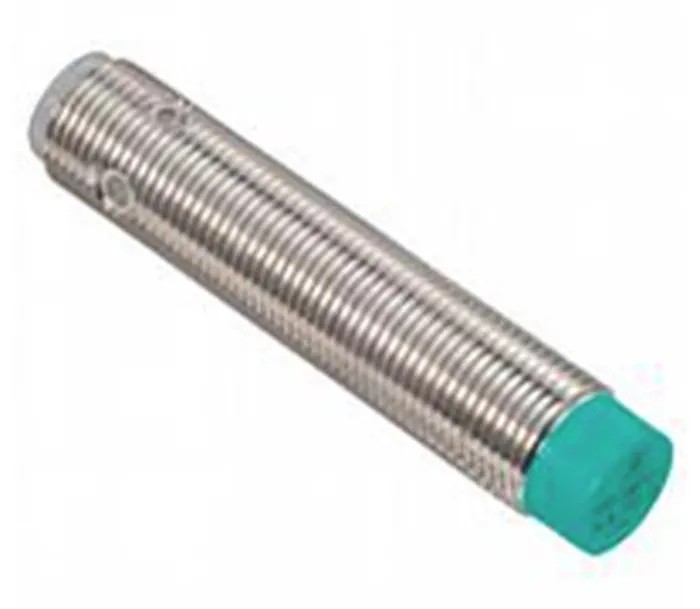

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 x 1 PNP 3V 10 mm 30 V dc 200mA NEN10-12GM50-E2-V1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 60mm |
| Model | NEN10-12GM50-E2-V1 |
| Depth | 12mm |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Nickel Plated Brass |
| Output type | PNP |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 600Hz |
| Maximum Supply Voltage | 3V |
| Materials Detected | Mild Steel |
| Maximum Detection | 10mm |
Key Features
- Constructed with nickel plated brass housing for durability and corrosion resistance.
- Rated IP67 for dust tight and water immersion protection.
- Operates within a temperature range of -25°C to 85°C for wide environmental adaptability.
- Features LED indication for operational status.
- Supports a maximum switching frequency of 600 Hz and switching current up to 200 mA.
- Non-flush mount type suitable for extended sensing applications.
- Includes short circuit and reverse polarity protection for enhanced reliability.
- Designed to detect mild steel materials with an unshielded, cylindrical threaded barrel body style.
Product Description
Pepperl + Fuchs NEN10-12GM50-E2-V1 is a high-performance threaded barrel Inductive Proximity Sensor designed for industrial automation, manufacturing, and control systems. Featuring an M12 x 1 thread size and a compact 60 mm length with a 12 mm diameter, it offers seamless integration into machine assemblies.
This inductive sensor operates on a PNP output type with a low voltage supply of 3V, and a maximum DC voltage of 30V dc, providing reliable sensing with a detection range of up to 10 mm for mild steel materials. The sensor housing is crafted from nickel plated brass, ensuring robustness and resistance to tough industrial environments.
With an IP67 rating, this sensor is dust tight and protected against temporary immersion in water, offering high durability in harsh conditions. It is suitable for non-flush mounting applications where an extended sensing range is necessary. The device supports a maximum switching frequency of 600 Hz and a switching current of 200 mA, enabling fast and precise signal responses.
Additional features include LED status indication, short circuit and reverse polarity protection, and an unshielded cylindrical design for easy installation and maintenance. The sensor operates reliably in ambient temperatures ranging from -25°C to 85°C, making it adaptable for diverse industrial and manufacturing settings.
Originating from the Czech Republic, this Pepperl + Fuchs sensor complies with standards IEC 60947-5-2:2007 and EN 60947-5-2:2007 along with cULus listing, ensuring quality and safety certifications expected in professional installations.
Durable nickel plated brass body for industrial environments. IP67 rated waterproof and dustproof design. Threaded barrel body style with M12 x 1 thread size. PNP output type suitable for automation control systems. Maximum detection distance of 10 mm for mild steel materials.
Operating temperature range from -25°C to 85°C. Maximum switching frequency of 600 Hz for fast response. Includes LED indication and electrical protection features. Non-flush mount type for versatile application needs. Complies with IEC and EN standards with cULus certification.
This sensor is ideal for electrical, automation, manufacturing, and industrial control applications requiring reliable proximity detection and signal output precision. Explore full Pepperl + Fuchs proximity sensor solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is up to 10 mm for mild steel materials.
This sensor has an IP67 rating, making it dust tight and protected against temporary immersion in water.
It operates reliably within a temperature range of -25°C to 85°C.
This model features a PNP output type suitable for automation control systems.
The maximum switching frequency supported by this unit is 600 Hz, allowing for fast signal responses.
It is designed to detect mild steel materials.
The housing is constructed from nickel plated brass, providing durability and corrosion resistance.
This sensor has a thread size of M12 x 1 and a compact length of 60 mm with a diameter of 12 mm.
Yes, it includes short circuit and reverse polarity protection for enhanced reliability.
No, this model is a non-flush mount type, designed for extended sensing applications.
This sensor originates from the Czech Republic.
It operates with a low voltage supply of 3V and a maximum DC voltage of 30V.
