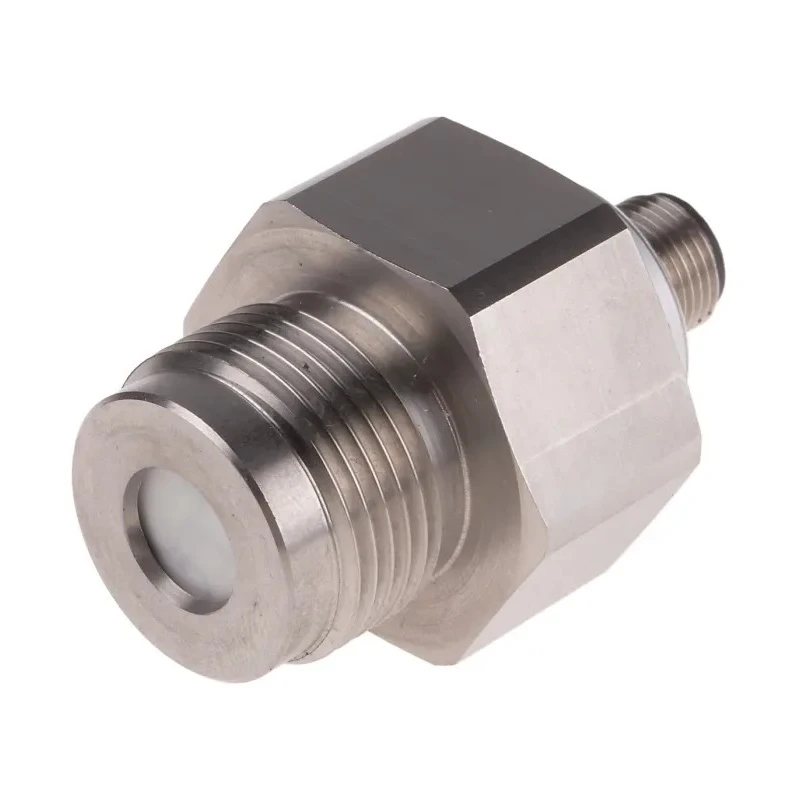

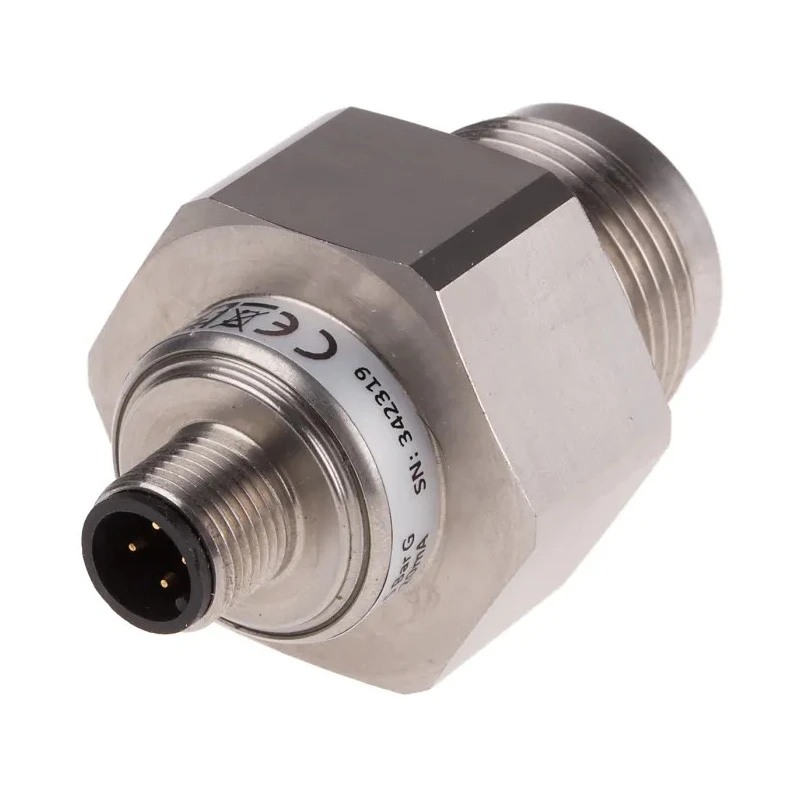

RS PRO Pressure Sensor 4 to 20 mA Output 0 bar to 5 bar Relative Reading 828-5763

RS PRO 828-5763 Pressure Sensor is a reliable industrial sensor designed for precise measurement of relative pressure from 0 bar up to 5 bar, delivering an output current of 4 to 20 mA.

The device employs a piezo-resistive thick film ceramic sensor enclosed within a robust stainless steel 303 housing, complemented by a 316L stainless steel diaphragm and Viton O-ring seals, which ensures excellent compatibility with various media including air, water, and gases.

This sensor operates across a wide temperature range from -20°C to 125°C and meets CE EMC directive EN 61326-1:2013 standards, featuring a semi-flush mount design and an M12 connector for seamless integration.

Ideal for applications spanning mechanical engineering, environmental engineering, automotive testing, pneumatics, agricultural machinery, and laboratory testing, the RS PRO 828-5763 ensures stable and accurate performance with ±0.25% accuracy and a long operational life of more than 100 million cycles.

The microprocessor-based amplifier within the electronics eliminates the need for manual adjustments and assures temperature compensation for stable readings. Additionally, it offers insulation resistance above 50M Ohms at 50 V dc for electrical safety.

The sensor features a piezo-resistive thick film ceramic sensor ensuring durability and accuracy. It operates with an output range of 4 to 20 mA and has an accuracy of ±0.25%. Constructed with stainless steel 303 housing and a diaphragm made of 316L stainless steel for excellent media compatibility.

Operating temperature ranges from -20°C to 125°C with an IP65 rating for environmental protection. The device includes an M12 connector terminal type for secure and reliable connections. Flexible installation position with semi-flush mount type for versatile application.

Suitable for mechanical engineering, environmental engineering, automotive testing, pneumatics, agricultural machinery, and laboratory testing. The sensor is temperature compensated, calibrated, and provides stable electronics with a microprocessor-based amplifier.

Operational life exceeds 100 million cycles and offers insulation resistance greater than 50M Ohms at 50 V dc. Compact, rugged design with media wetted parts including housing, O-ring Viton seals, and diaphragm. This RS PRO sensor represents high-quality engineering standards and provides reliable pressure readings essential for industrial automation and process control.
