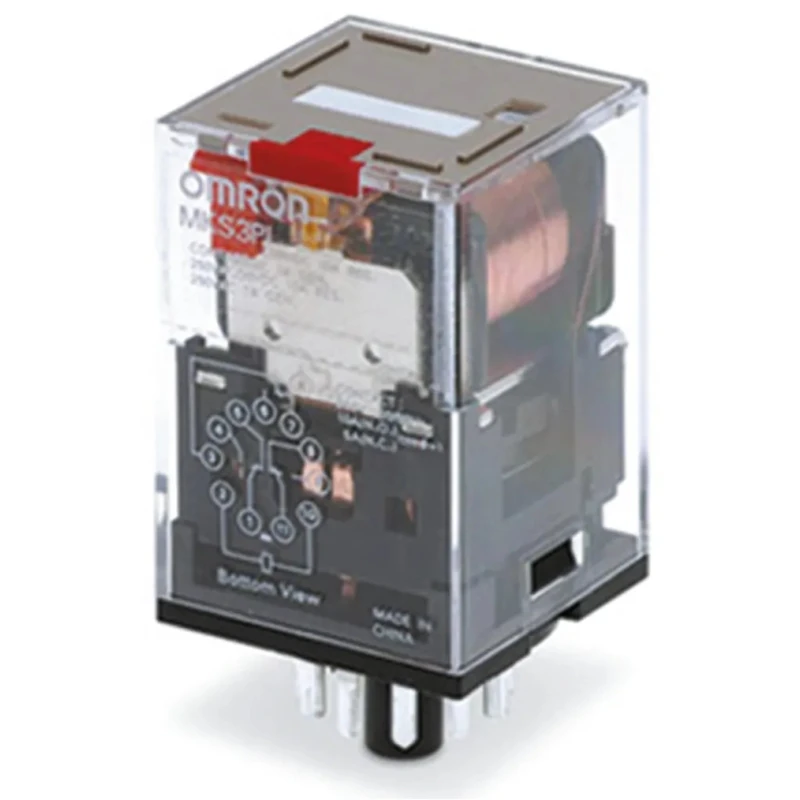

Omron Power Relay, 24V DC Coil, 10A Switching Current, 3PDT Contact Configuration MKS3PN1 DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 34.5mm |
| Length | 34.5mm |
| Model | MKS3PN1 DC24 |
| Width | 53.3mm |
| Contact Material | Silver Alloy |
| Series | MKS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 430Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V |
| Coil Power | 1.4W |
Key Features
- Equipped with 3PDT contact configuration for three simultaneous circuit changes.
- Compact design suitable for panel or socket mounting installations.
- Silver alloy contacts ensure low contact resistance and reliable switching.
- Operates efficiently with low coil power consumption of 1.4W.
- Rated for switching up to 250V AC/DC for versatile applications.
- Wide operating temperature range from -40°C to 60°C for harsh environments.
- Plug-in terminal type simplifies installation and maintenance in control systems.
- Certified with UL and CSA approvals ensuring compliance with safety standards.
Product Description
Omron MKS3PN1 DC24 power relay is a compact electromechanical switching device operating with a 24V DC coil voltage. It supports a 10A switching current with a 3PDT contact configuration, enabling simultaneous switching across three separate circuits. This relay is designed primarily for industrial and electronic control systems, suitable for panel and socket mounting installations.
The device features silver alloy contacts that provide low contact resistance of 50mΩ, reducing power losses during operation. The coil consumes a low power of 1.4W, with a coil resistance of 430Ω, ensuring efficient and predictable drive characteristics for control circuitry.
Operating at switching voltages up to 250V AC or DC, it offers flexibility for various automation and electrical control applications. It withstands ambient temperatures from -40°C up to 60°C, making it reliable in diverse industrial environments. The plug-in terminal type allows for straightforward mounting and rapid replacement within relay sockets to facilitate maintenance.
This power relay complies with recognized safety standards including UL and CSA approvals, reflecting its suitability for regulated industrial applications. The compact housing size of 34.5mm height by 53.3mm width supports optimal panel layout design.
3PDT contact layout for multiple simultaneous circuit switching. Low contact resistance and efficient silver alloy contacts. Low coil power consumption ensures energy efficiency. Wide operating temperature ensures durability in varying environments.
Plug-in terminals enable quick installation and maintenance. UL and CSA certified for standard compliance.
This Omron power relay is ideal for motor control signal switching in control panels, interlocking multiple circuits in automation racks, and switching DC loads in industrial electronics assemblies. It is commonly used in industrial automation, manufacturing, and electrical control systems requiring reliable multi-contact switching capabilities.
Explore more power relay products and control devices in the EnvMart Electronics & Electricals category for integrated industrial automation solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this power relay is 24V DC.
This model can handle a maximum switching current of 10A.
It features a 3PDT contact configuration, allowing for three simultaneous circuit changes.
The contact material used in this relay is silver alloy, which ensures low contact resistance.
The dimensions of this power relay are 34.5mm in height, 34.5mm in length, and 53.3mm in width.
The operating temperature range for this relay is from -40°C to 60°C.
This relay uses a plug-in terminal type, facilitating easy installation and maintenance.
The contact resistance of this relay is 50mΩ, which helps reduce power losses during operation.
This power relay is certified with UL and CSA approvals, ensuring compliance with recognized safety standards.
The coil power consumption of this model is 1.4W, which contributes to its energy efficiency.
The maximum switching voltage for this relay is 250V AC or DC.
This relay is commonly used in industrial automation, manufacturing, and electrical control systems requiring reliable multi-contact switching capabilities.
