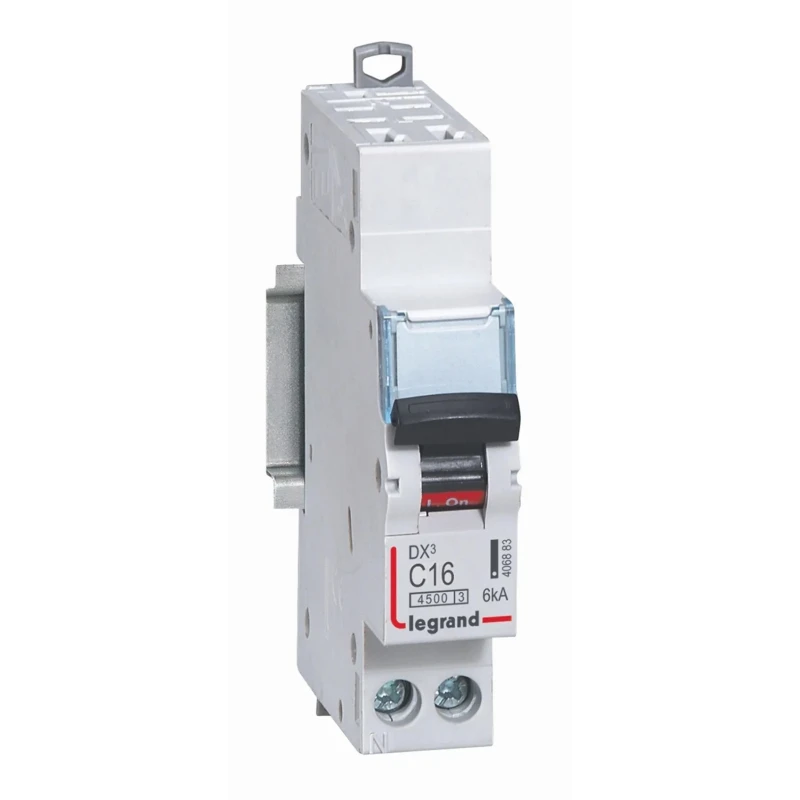

Legrand DX DX3 Miniature Circuit Breaker, 1-Pole, 16A, Type C, 250V AC, 12V DC, 4.5 kA Breaking Capacity 4 068 83
Specifications
| Country of Origin | France |
|---|---|
| Range | DX |
| Brand | Legrand |
| Height | 77.7mm |
| Connections | auto / screw or screw / screw |
| Model | 4 068 83 |
| Depth | 95mm |
| IP Rating | IP20 |
| Width | 17.8mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | DX3 |
| Terminal type | Cage Type |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN 60947-2, NF EN 60891-1 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Designed for control and protection against short-circuits and overloads.
- Features a magnetic tripping mechanism with Type C curve characteristics.
- Mounts easily on DIN rails for secure installation.
- Equipped with a toggle switch actuator for manual reset.
- Provides positive contact indication for enhanced safety.
- IP20 rated enclosure suitable for indoor electrical applications.
- Compatible with auto / screw or screw / screw connections.
- Conforms to EN 60947-2 and NF EN 60891-1 standards.
Product Description
Legrand 4 068 83 DX DX3 miniature circuit breaker is a 1-pole device rated at 16 amps with Type C tripping characteristics, engineered to protect electrical circuits from overloads and short circuits. It operates at 250V AC and 12V DC with a breaking capacity of 4.5kA, making it suitable for residential, commercial, and industrial electrical installations.
The circuit breaker features a robust magnetic tripping mechanism and offers positive contact indication to ensure clear operational status. The device is designed for easy DIN rail mounting and supports both auto/screw and screw/screw connections for flexible wiring options.
Its compact form factor measures 77.7mm in height, 17.8mm in width, and 95mm in depth, allowing efficient use of panel space. The IP20 rated casing provides adequate protection in indoor environments. The toggle switch actuator facilitates quick manual resetting after fault clearance.
Legrand DX3 series adheres to important safety and performance standards, including EN 60947-2 and NF EN 60891-1, assuring compliance with international quality benchmarks. Manufactured in France, this breaker is a reliable choice for electrical distribution and protection systems in diverse industrial applications such as manufacturing plants, commercial buildings, and HVAC systems.
Designed for control and protection against short-circuits and overloads. Magnetic tripping mechanism with Type C curve characteristics. DIN rail mount type for streamlined installation. Toggle switch actuator for manual reset capability.
Compact size with 77.7mm height, 17.8mm width, and 95mm depth. Positive contact indication improves operational safety. IP20 rated enclosure for indoor electrical applications. Connections support auto/screw or screw/screw types.
Conforms to EN 60947-2 and NF EN 60891-1 standards. Manufactured in France for assured quality. Explore more Miniature Circuit Breakers and electrical protection devices in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 4.5 kA, which allows it to effectively interrupt fault currents.
It operates at a rated AC voltage of 250V and a rated DC voltage of 12V.
This circuit breaker features a magnetic tripping mechanism with Type C tripping characteristics.
It is designed for DIN rail mounting, which allows for secure and streamlined installation.
The dimensions are 77.7mm in height, 17.8mm in width, and 95mm in depth.
It supports both auto/screw and screw/screw connections, providing flexible wiring options.
It conforms to EN 60947-2 and NF EN 60891-1 standards, ensuring compliance with international safety benchmarks.
The current rating of this unit is 16A, making it suitable for various electrical applications.
The enclosure has an IP20 rating, which is suitable for indoor electrical applications.
Yes, it offers positive contact indication, which enhances operational safety by clearly showing the status of the breaker.
This model is manufactured in France, ensuring adherence to quality standards.
It features a toggle switch actuator for manual reset capability after a fault has been cleared.
