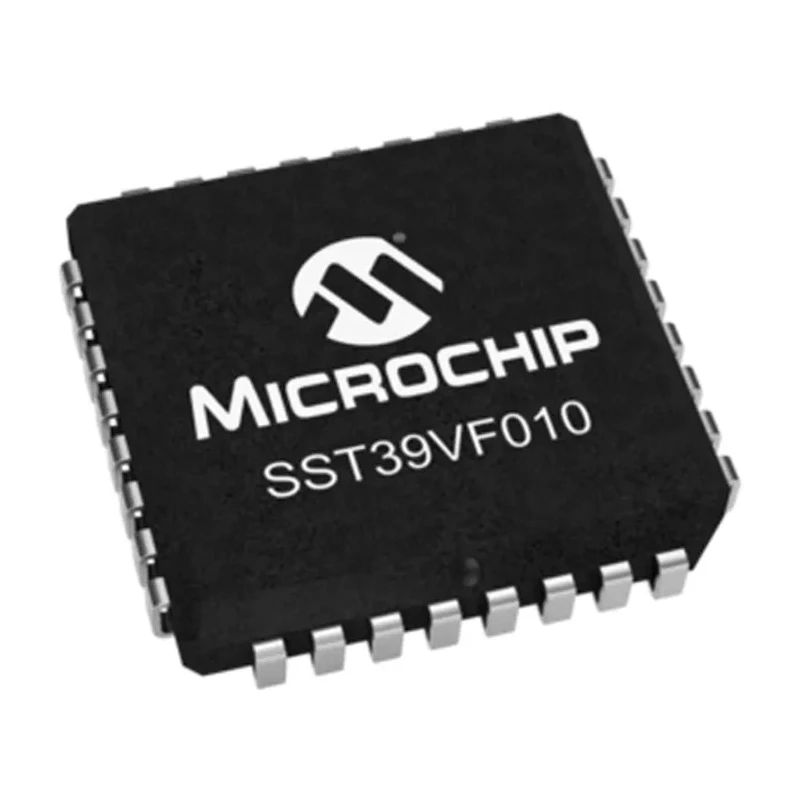

Microchip Split Gate 1 MB Parallel Flash Memory 32-Pin PLCC SST39VF010-70-4I-NHE

Microchip SST39VF010-70-4I-NHE is a Split Gate 1 MB parallel flash memory device in a 32-pin PLCC package, primarily designed for use in a variety of digital electronic applications. It is ideal for systems requiring reliable non-volatile memory with robust read and write capabilities.

This memory chip features a memory size of 1MB configured as 128K x 8-bit words, providing ample space for firmware and data storage. It utilizes a parallel interface for high-speed data transmission and integrates seamlessly via surface-mount technology.

The device's operating voltage ranges from 2.7V to 3.6V, accommodating common supply voltages in embedded systems. It operates asynchronously with a maximum random access time of 70 nanoseconds, allowing for fast memory access.

Engineered for durability, the chip supports an operating temperature range from -40°C to 85°C, making it suitable for diverse industrial and commercial applications. The low supply current of 20mA aids in power efficiency of the host system.

Dimensions of width 349.25mm, height 2.84mm, and length 14.05mm offer a compact form factor suitable for PCB layouts with space constraints. The split gate cell technology enhances memory endurance and reliability during repeated program/erase cycles.

Microchip’s SST39VF010 series is widely used across consumer electronics, communication devices, and embedded control systems due to its robust architecture and proven performance.

Memory size of 1MB organized as 128K x 8 bits supports diverse data storage needs. Parallel interface with 32-pin PLCC package ensures efficient surface-mount integration. Operates between 2.7V minimum and 3.6V maximum supply voltage for flexible power conditions.

Asynchronous timing type delivers quick and reliable memory access with 70ns max random access time. Wide operating temperature range from -40°C to 85°C ensures durability in various environments. Supply current rated at 20mA supports low power consumption during operation.

Split gate cell type technology improves data retention and endurance. Dimensions include width 349.25mm, height 2.84mm, and length 14.05mm for compact PCB footprint. Series SST39VF010 with standard 128k words and 8 bits per word architecture.

Non-automotive standard component designed for commercial and industrial electronics uses.

This flash memory is extensively used in industrial electronics, telecommunications, embedded systems, and other commercial devices requiring reliable non-volatile memory storage. Its robust features and compact design make it a preferred choice among engineers designing high-performance, space-conscious electronic circuits.
