Phoenix Contact PACT RCP-D140 Series Flange-Mount Current Transformer 4000A 1.5VA 24V DC 8.3mm Bore 2904922

Phoenix Contact 2904922 Current Transformer PACT RCP-D140 Series is a highly reliable flange-mount AC current transducer designed for precise measurement of high alternating currents up to 4000 A. It integrates a Rogowski coil with a 1 A measuring transducer, converting currents into a safe and manageable output for industrial monitoring and control systems.

The device features a robust polycarbonate housing ensuring durability and thermal resistance up to +80°C, and a polyamide transducer for excellent impact resistance. The flange-mount design enables secure and stable installation in electrical switchgear and power distribution systems.

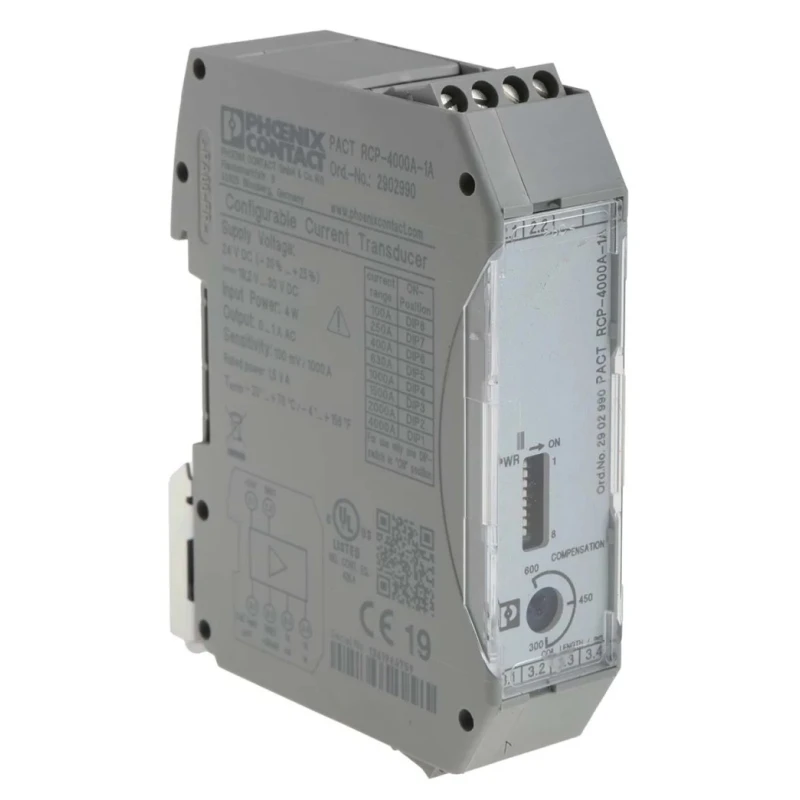

Featuring eight selectable current ranges from 100 A to 4000 A, configured via DIP switches, this unit offers flexibility for diverse measurement tasks. The Rogowski coil design eliminates issues related to coil size and weight variations with current strength, ensuring space-saving integration. Its phase-accurate response covers a wide frequency range (10 to 5000 Hz), allowing detection of harmonics and transient currents with high fidelity.

This transformer complies with IEC 61010-1 and IEC 61010-2-032 standards, guaranteeing safety for operators and equipment. The IP20 rating certifies protection against solid objects larger than 12 mm and protection against accidental contact, making it suitable for industrial environments.

The product weighs 419 grams, minimizing mechanical load on mounting points and simplifying installation. Powered by a 24 V DC supply with a consumption of 4 W, it meets energy efficiency requirements for automation systems.

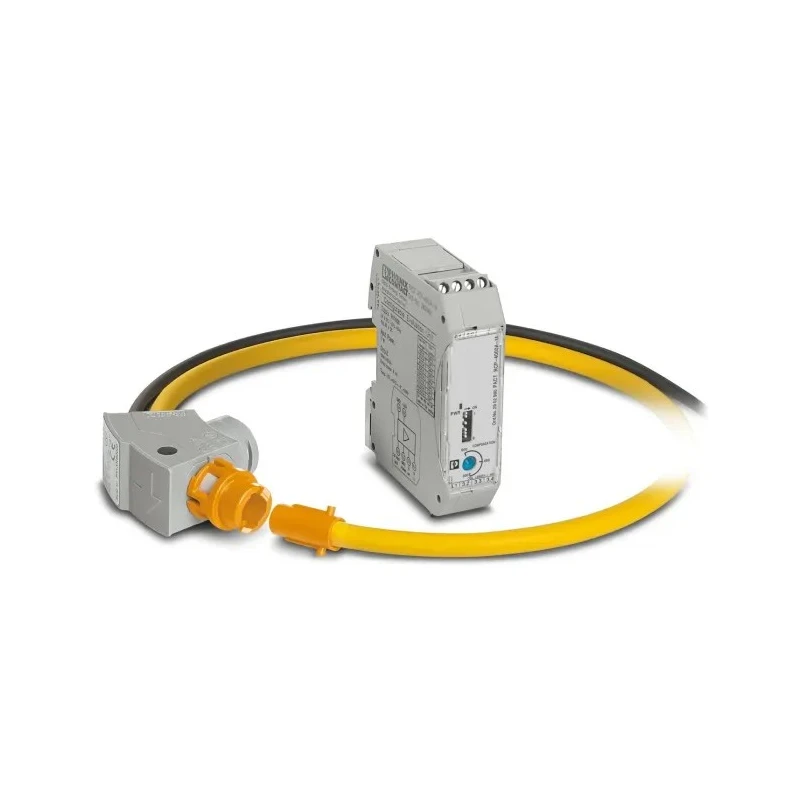

Applications include industrial automation, process control systems, electrical power monitoring, and HVAC control circuits where reliable AC current measurement is critical. The package consists of the Current Transformer kit with the 1 A measuring transducer and the Rogowski coil.

The combined Rogowski coil and transducer convert AC currents to a precise 1A output signal for safe measurement. Adjustable input current ranges from 100A to 4000A via DIP switches for flexible usage. Durable polycarbonate housing withstands operating temperatures up to 80°C.

Flange mounting provides secure installation and measurement stability. Compliance with IEC standards ensures safe and reliable operation. Lightweight design (419g) reduces installation strain. Broad frequency response (10-5000 Hz) enables harmonic and transient detection.
