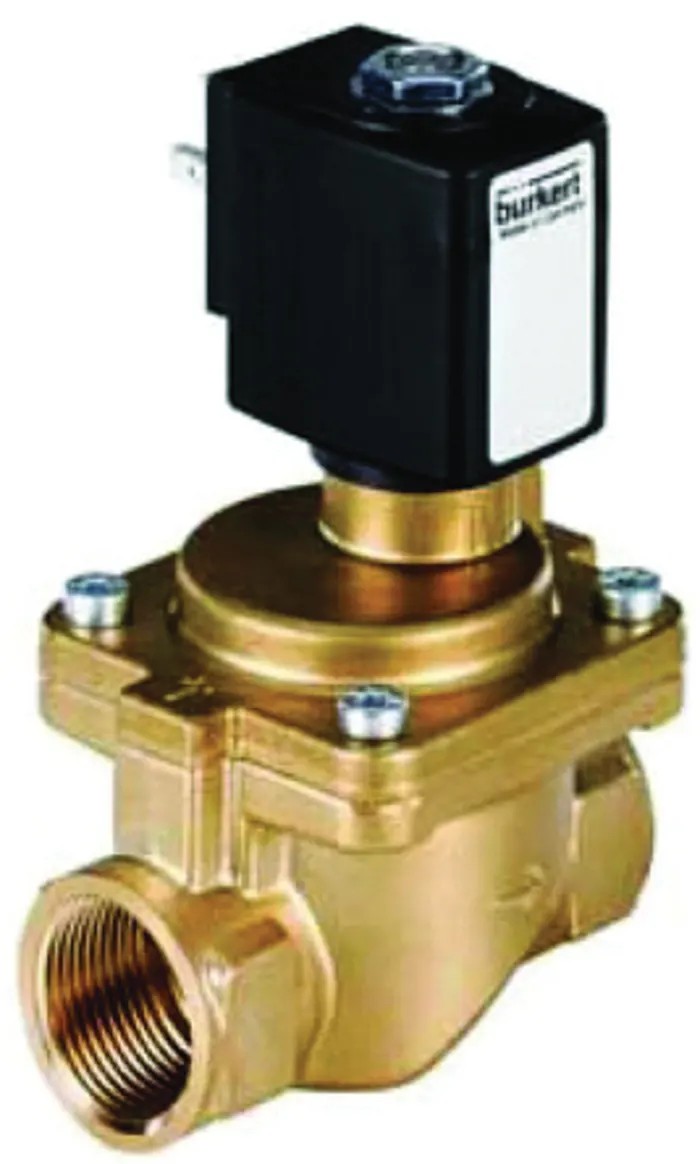

Burkert 2 Port Normally Closed Brass Body Solenoid Valve 230V AC, 16 bar, 40mm Orifice Diameter 221864
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Model | 221864 |
| Series | 6281 EV Standard |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 40mm |
| Supply Voltage | 230V ac |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | DIN EN 50930-6, ATEX, DIN EN 175301-803 Form A, KTW W270 |
| Default Valve Position | NC |
| Maximum Opening Time | 4s |
| Flow Factor Kv | 30m³/h |
Key Features
- Two-port valve with normally closed configuration.
- Brass body construction ensures durability and corrosion resistance.
- Operates with a supply voltage of 230V AC.
- Orifice diameter of 40mm allows high flow rates.
- Maximum operating pressure of 16 bar for demanding industrial use.
- Temperature range from -10°C to 80°C for versatile applications.
- Servo-assisted operation for improved responsiveness.
- Designed to meet DIN EN 50930-6, ATEX, DIN EN 175301-803 Form A, and KTW W270 standards.
Product Description
Burkert 221864 2 Port Normally Closed Solenoid Valve 230V AC is designed for reliable control of neutral fluids including compressed air and water in industrial and commercial systems. Its brass body construction provides excellent durability and resistance to corrosion, making it suitable for extended use in harsh environments. The valve features a 40mm orifice diameter and supports a maximum operating pressure of 16 bar, ensuring high flow capacity and performance.
The solenoid valve series 6281 EV Standard offers servo-assisted operation, which reduces power consumption while providing quick response times ranging from 0.1 to 4 seconds depending on system pressure. It is equipped with NBR or FKM seals available in Normally Closed (NC) or Normally Open (NO) versions to adapt to varied control needs.
This valve complies with important standards including DIN EN 50930-6, ATEX certification for hazardous area suitability, DIN EN 175301-803 Form A connection, and KTW W270 approval for drinking water applications. Its IP65 rating with cable protection enables its use in environments requiring dust protection and water resistance.
Additional features include a compact installation length, NPT / Rc connection ports, quiet operation, and a water hammer free design that prevents damage to pipeline systems. The temperature range from -10°C to 80°C broadens the potential industrial applications such as heating, refrigeration, water treatment plants, compressed air systems, and vacuum handling setups.
This product originates from Germany, evidencing precision engineering and quality manufacturing standards. Two-port, normally closed Solenoid Valve with servo assist for efficient control. Brass construction with 40mm orifice diameter for durability and high flow capacity.
Rated for maximum 16 bar operating pressure and temperature range -10°C to 80°C. Certified to rigorous industrial standards including ATEX for hazardous environments. Application versatility includes pneumatic, water treatment, refrigeration, and HVAC systems.
Explore more valves and solenoid products at EnvMart for your industrial automation and fluid control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
The orifice diameter of this model is 40mm, allowing for high flow rates.
This solenoid valve operates within a temperature range of -10°C to 80°C.
It operates with a supply voltage of 230V AC.
This model is certified to DIN EN 50930-6, ATEX, DIN EN 175301-803 Form A, and KTW W270 standards.
The valve features a brass body construction, which ensures durability and corrosion resistance.
The default valve position for this model is normally closed (NC).
The maximum opening time for this valve is 4 seconds, depending on system pressure.
The flow factor (Kv) for this model is 30 m³/h.
This solenoid valve is designed for reliable control of neutral fluids, including compressed air and water.
It includes NPT/Rc connection ports and has an IP65 rating for dust protection and water resistance.
This product originates from Germany, reflecting precision engineering and quality manufacturing standards.
